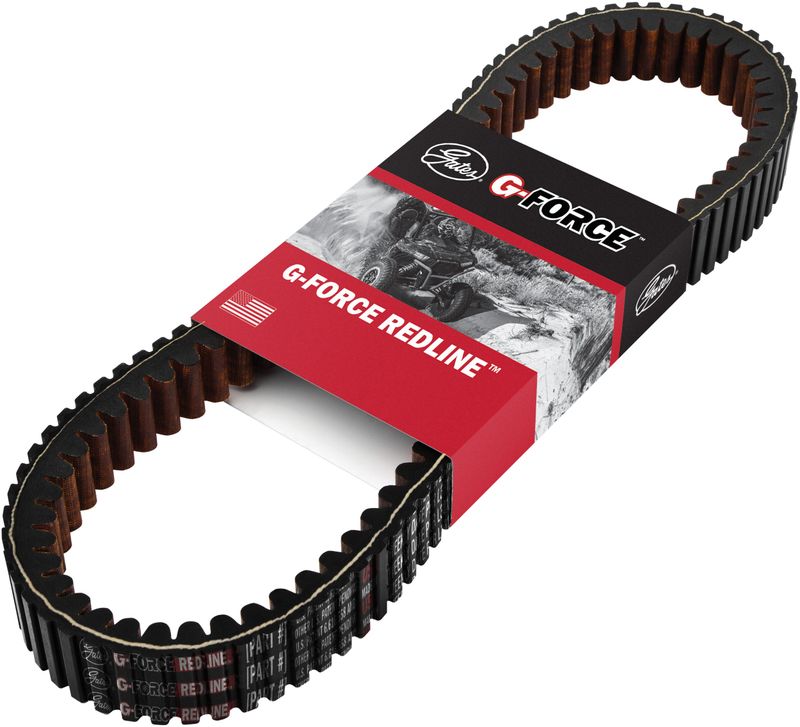

Gates 46R4829 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt

G-Force RedLine CVT Belt

The Gates G-Force RedLine CVT Belt is built for high-performance continuously variable transmission applications that demand stable power transfer under load. This 46R4829 belt uses an OE-improved design with aramid cord reinforcement and double-notched construction for demanding off-road use.

Key Features

• OE-improved CVT belt design for stronger power delivery.
• Aramid cord material adds tensile strength for high-load operation.
• Double-notched construction helps manage heat and flex.
• EPDM belt material supports durability in severe service.
• RVS-R cross section and 28-degree angle for specialty CVT applications.

Detailed Description

Gates positions the G-Force RedLine line as a performance-focused CVT belt family for extreme environments, with an emphasis on reducing speed-ratio loss and energy loss during aggressive use. The 46R4829 combines a 1.46-inch top width, 0.612-inch thickness, and 49.46-inch outside circumference to match specific CVT setups that require this exact belt profile. For buyers searching for a Gates CVT belt 46R4829 or a Gates G-Force RedLine CVT belt for specialty transmission service, this part is built around controlled engagement and consistent belt behavior.

What It Is Used For

• Restoring CVT drive performance when the belt is worn or stretched.
• Addressing slipping, inconsistent acceleration, or loss of ratio control.
• Replacing a belt that shows glazing, cracking, or heat-related wear.
• Supporting transmission service on high-load powersport applications.

Installation Notes and Tips

Verify belt dimensions, cross section, and application requirements before installation. This CVT belt must match the specified transmission setup, including width, thickness, circumference, and angle. Follow the vehicle manufacturer’s service procedure for belt replacement and transmission inspection.

Quality Assurance

Gates designs the G-Force RedLine series as an OE-improved performance belt line for demanding CVT service. Part number 46R4829 is engineered for consistent operation in severe-duty environments.
