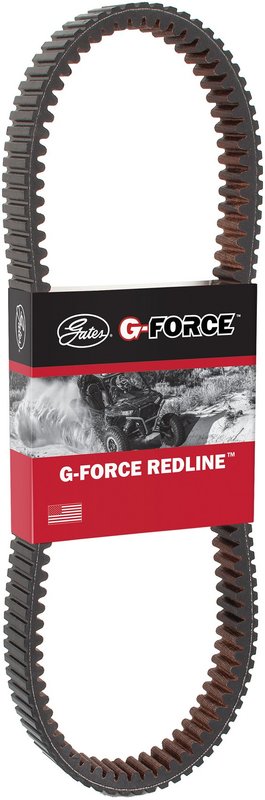

Gates 47R4738 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt

Overview of Gates G-Force RedLine CVT Belt 47R4738

The Gates G-Force RedLine CVT Belt 47R4738 is engineered for high-performance automatic continuously variable transmissions. Designed with durable materials and precise construction, this CVT belt supports reliable power transmission in vehicles requiring specialty power sport components.

• Top width: 37 mm (1.473 inches)
• Thickness: 15.9 mm (0.627 inches)
• Outside circumference: 1233 mm (48.55 inches)
• Double notched construction for enhanced flexibility
• Cord material: Aramid for high tensile strength
• Belt material: EPDM for durability and heat resistance
• Cross section designation: Rvs-r
• Fabric bottom and notched design for improved grip and wear resistance
• Angle: 29 degrees for optimized belt engagement
• OE comparison rating: OE improved

G-Force RedLine CVT Belts Product Line Details

The G-Force RedLine CVT Belts line by Gates focuses on power sport specialty high-performance CVT belts. This product line is designed to meet or exceed original equipment specifications, providing improved durability and performance for automatic continuously variable transmissions. The 47R4738 model benefits from this advanced design, making it suitable for demanding applications where consistent power delivery and belt longevity are critical.

Technical Description and Features

This automatic continuously variable transmission belt features a double notched construction that enhances flexibility and reduces heat buildup during operation. The use of aramid cords provides superior tensile strength, ensuring the belt maintains its integrity under high load conditions. The EPDM belt material offers resistance to heat, ozone, and wear, contributing to longer service life. The belt’s 29-degree angle and fabric bottom improve engagement with pulleys, reducing slippage and noise. With an outside circumference of 1233 mm and a pitch length of 1203 mm, the 47R4738 is engineered for precise fitment and reliable performance.

Applications and Problem Solving

• Replacement for worn or damaged CVT belts in automatic transmissions
• Addresses belt slippage and loss of power transmission efficiency
• Reduces premature belt wear caused by heat and friction
• Improves vehicle drivability by maintaining consistent belt tension
• Suitable for power sport vehicles requiring specialty high-performance CVT belts

Installation Notes and Tips

Ensure the CVT pulleys are clean and free of debris before installing the Gates G-Force RedLine CVT Belt 47R4738. Proper alignment of the belt on the pulleys is critical to prevent premature wear. Follow vehicle manufacturer torque specifications for any related components. It is recommended to inspect the belt periodically for signs of wear or damage, especially in high-performance or power sport applications.

Quality Assurance and Warranty

Gates manufactures the G-Force RedLine CVT Belts to meet stringent quality standards, using premium materials such as aramid cords and EPDM rubber. This part carries an OE improved rating, indicating it meets or exceeds original equipment specifications. Warranty coverage details should be confirmed with the distributor or vehicle manufacturer, as they may vary by application.
