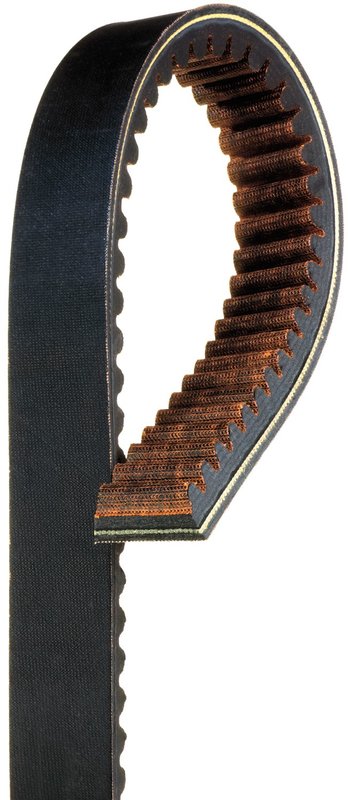

Gates 48G5122 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt

Overview of Gates G-Force CVT Belt 48G5122

The Gates G-Force CVT Belt 48G5122 is engineered for automatic continuously variable transmissions, designed to deliver reliable power transfer in powersport applications. This belt features a notched construction and aramid cord material to ensure durability and consistent performance.

• Top width of 1.469 inches (37 mm) for precise fitment
• Notched belt construction for enhanced flexibility and heat dissipation
• Aramid cord material providing high tensile strength and resistance to stretching
• Chloroprene belt material offering durability and resistance to wear
• Outside circumference of 51.125 inches (1299 mm) suitable for specific CVT systems
• Fabric bottom to reduce friction and improve belt life
• Designed as a power sport CVT belt with a 30-degree angle cross section (Rvs-r)

G-Force CVT Belt Product Line Details

The G-Force CVT Belt line by Gates focuses on delivering belts optimized for powersport vehicles requiring automatic continuously variable transmissions. This product line emphasizes materials and construction that balance flexibility, strength, and heat resistance, making it suitable for demanding transmission environments. The 48G5122 part is a representation of this line’s commitment to OE performance standards.

Technical Description and Features

The Gates G-Force CVT Belt 48G5122 is constructed with a notched design that improves belt flexibility and heat dissipation during operation. The aramid cords embedded within the chloroprene rubber matrix provide high tensile strength and resistance to elongation, which is critical for maintaining consistent transmission ratios. The fabric bottom reduces friction against pulleys, contributing to longer belt life and smoother operation. With a top width of 1.469 inches and an outside circumference of 51.125 inches, this belt is engineered to meet specific powersport CVT requirements. The 30-degree angle cross section (Rvs-r) ensures compatibility with corresponding pulley designs.

Applications and Problem Solving

• Replacement for worn or damaged CVT belts in powersport vehicles
• Addresses slipping or loss of power transmission in automatic CVT systems
• Helps reduce belt overheating and premature wear due to improved notched construction
• Prevents stretching and belt failure through aramid cord reinforcement
• Maintains consistent transmission performance under varying load conditions

Installation Notes and Tips

When installing the Gates G-Force CVT Belt 48G5122, ensure the belt is properly aligned with the pulleys to prevent uneven wear. Verify the belt tension according to the vehicle manufacturer’s specifications to avoid slippage or excessive strain. Inspect the pulleys and other transmission components for wear or damage before installation. The fabric bottom and notched design require careful handling to maintain belt integrity during installation.

Quality Assurance and Warranty

Gates manufactures the G-Force CVT Belt 48G5122 to meet OE performance standards, ensuring reliable operation in powersport automatic CVT systems. The use of aramid cords and chloroprene materials reflects a focus on durability and resistance to wear. While specific warranty details are not provided, Gates products typically adhere to strict quality control processes to support long service life and consistent performance.
