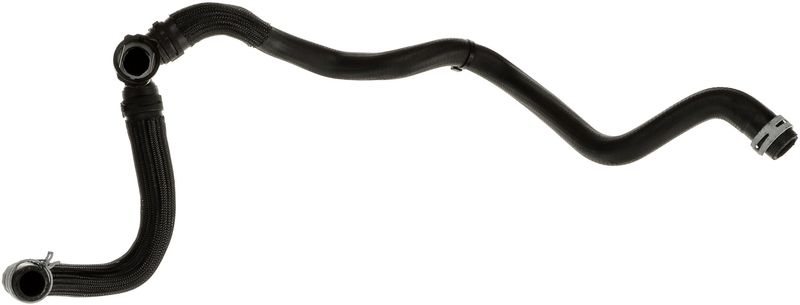

Gates 52563 HVAC Heater Hose - Reservoir (Lower)
| Brand | Gates 52563 |
|---|---|
| Position | Reservoir (Lower) |
| Material | Epdm, plastic |
| End 1 Inside Diameter | .7 |
| End 1 Inside Diameter | 18 |
| End 2 Inside Diameter | .7 |
| End 2 Inside Diameter | 18 |
| Contains Spring | No |
| Centerline Length | 1029 |
| Centerline Length | 23 |
| Centerline Length | 40.5 |
| End 3 Inside Diameter | .9 |
| Branch Quantity | 1 |
| 9839 | Yes |
| 9845 | 1 |
| 9940 | Yes |
| 9942 | Branch, female quick connector |
| Product line | Molded Coolant Hose |
| Fits | Ford · 5 vehicles |
OE-style design. Built for application-specific coolant hose routing with integrated connector features.
Molded construction. EPDM and plastic materials help match the original hose shape and layout.
Gates modular line. Engineered for specific applications with essential integrated components.
Cross-references Gates 52563, C1BZ 8K276 C and F12223 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
Gates 52563 is a molded coolant hose built for specific HVAC heater hose applications with OEM-style integrated components. It uses EPDM and plastic construction and is shaped to match the required routing for a precise replacement.
Key Features
- Molded coolant hose design for application-specific fitment
- EPDM and plastic construction for coolant system use
- Integrated branch and quick-connector features
- Centerline length of 40.5 inches for the specified routing
- Gates Molded Coolant Hose line engineered to mirror OEM-style layouts
Detailed Description
This Gates HVAC heater hose is part of the Molded Coolant Hose line and is manufactured for specific vehicle applications rather than universal use. The design incorporates essential OE-style elements such as hose branches and a female quick connector, helping maintain the original coolant hose routing and connection style. Fits 2014-2016 Ford Fiesta, reservoir (lower). Fits 2018-2019 Ford Fiesta, reservoir (lower). Part number 52563 is also listed as 52563 for direct identification when ordering or cross-checking fitment. This part cross-references Monroe Shocks & Struts (e.g., C1BZ 8K276 C, F12223) for the same application.
What It Is Used For
- Replacing a damaged or leaking molded coolant hose
- Restoring proper coolant flow through the heater circuit
- Correcting cracked plastic sections or worn hose ends
- Addressing connector wear at the hose interface
- Replacing a hose that no longer matches the original routing
Installation Notes and Tips
Verify the reservoir lower position and compare the hose routing, connector style, and branch layout before installation. Match the existing hose to the molded shape and connector configuration to confirm the correct application for the Ford Fiesta. Part number 52563 should be checked against the vehicle’s original hose layout and service information before removal.
Quality Assurance
Gates is recognized in the aftermarket for modular coolant hose assemblies that follow OEM-style application requirements and integrated component layouts.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Ford | Fiesta | 1.6L | L4 | GAS | Reservoir (Lower) | Molded Coolant Hose |
| 2018 | Ford | Fiesta | 1.6L | L4 | GAS | Reservoir (Lower) | Molded Coolant Hose |
| 2016 | Ford | Fiesta | 1.6L | L4 | GAS | Reservoir (Lower) | Molded Coolant Hose |
| 2015 | Ford | Fiesta | 1.6L | L4 | GAS | Reservoir (Lower) | Molded Coolant Hose |
| 2014 | Ford | Fiesta | 1.6L | L4 | GAS | Reservoir (Lower) | Molded Coolant Hose |
