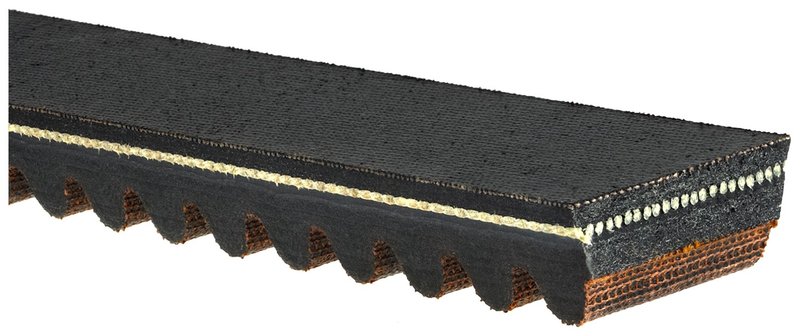

Gates 71G2776 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt

OE Quality 60-Day Returns

Gates 71G2776 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt

Brand	Gates 71G2776
Position	Drive Belt
Top Width	.71
Top Width	18
Construction	Notched
Color	Black
Cord Material	Aramid
Cross Section Designation	Rvs-r
Outside Circumference	28.433
Outside Circumference	722
Type	Power sport cvt belt
Belt Material	Chloroprene
Angle	32
9837	Yes
Angle	32
Belt Material	Chloroprene
Color	Black
Construction	Notched
Cord Material	Aramid
Fabric Bottom	Yes
Notched	Yes
OE Comparison Rating	Oe performance
Outside Circumference (in)	28.433
Outside Circumference (mm)	722
Section	Rvs-r
Top Width (in)	.71
Top Width (mm)	18
Type	Power sport cvt belt
Fits	—77 vehicles

OE performance. Built to match original-style transmission belt requirements.

Aramid reinforcement. Cord material adds strength for demanding CVT service.

Notched design. Promotes flexible operation in continuously variable transmissions.

Cross-references Gates 71G2776, BD3-E7641-00 and BD3-E7641-00-00 for the same application. See all 5.

$75.03Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Automatic Continuously Variable Transmission (CVT) Belt options

G-Force WorkHorse CVT Belt

The Gates 71G2776 is a power sport CVT belt built for demanding use in compact-displacement applications. It combines aramid cord reinforcement with a notched chloroprene construction to deliver OE-performance replacement characteristics in a durable belt design.

Key Features

G-Force WorkHorse belt line for demanding CVT service
Aramid cord material for added tensile strength
Notched construction with a fabric bottom for flexible operation
Chloroprene belt material with a black finish
OE performance comparison rating

Product Details

This Gates CVT belt is engineered for automatic continuously variable transmission systems that use a power sport belt profile. The 18 mm top width, 722 mm outside circumference, and RVS-R section help define the belt’s application-specific fit and operating geometry. Gates 71G2776 is part of the G-Force WorkHorse CVT belt line, which is positioned for tougher duty cycles while remaining focused on OE-style performance. For buyers searching for a Gates CVT belt for compact powersport drivetrains, 71G2776 provides a direct replacement option where the listed fitment applies.

What It Helps Address

Slipping or inconsistent belt engagement in a CVT system
Wear from repeated load changes during trail or work use
Loss of transmission efficiency caused by belt fatigue
Need for an OE-performance replacement belt with the correct dimensions

Installation Notes and Tips

Verify the belt profile, top width, and outside circumference against the original part before installation. Confirm the transmission uses a compatible CVT belt specification and follow the vehicle service procedure for belt replacement and break-in. Gates 71G2776 should be installed only where the application calls for this exact belt size and construction.

Quality Assurance

Gates designs the G-Force WorkHorse line for demanding service conditions and OE-performance expectations. Part number 71G2776 is supported by Gates interchange references for the same application, including BD3-E7641-00 and V23100CJF010.

This part fits 77 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Liters	Cylinders	Fuel Type	Position	Notes
2027	Yamaha	YFM110 Grizzly 110	-L	--	U/K	Drive Belt	G-Force CVT Belt
2027	Yamaha	YFM110 Raptor 110	-L	--	U/K	Drive Belt	G-Force CVT Belt
2027	Yamaha	YFZ50	-L	--	U/K	Drive Belt	G-Force CVT Belt
2026	Yamaha	YFM110 Grizzly 110	-L	--	U/K	Drive Belt	G-Force CVT Belt
2026	Yamaha	YFM110 Raptor 110	-L	--	U/K	Drive Belt	G-Force CVT Belt
2026	Yamaha	YFZ50	-L	--	U/K	Drive Belt	G-Force CVT Belt
2025	Yamaha	YFM110 Grizzly 110	-L	--	U/K	Drive Belt	G-Force CVT Belt
2025	Yamaha	YFM110 Raptor 110	-L	--	U/K	Drive Belt	G-Force CVT Belt
2024	Yamaha	YFM110 Raptor 110	-L	--	U/K	Drive Belt	G-Force CVT Belt
2024	Yamaha	YFM90 Grizzly 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2024	Yamaha	YFZ50	-L	--	U/K	Drive Belt	G-Force CVT Belt
2023	Yamaha	YFM90 Grizzly 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2023	Yamaha	YFM90 Raptor	-L	--	U/K	Drive Belt	G-Force CVT Belt
2023	Yamaha	YFZ50	-L	--	U/K	Drive Belt	G-Force CVT Belt
2022	Can-Am	DS 70	-L	--	U/K	Drive Belt	G-Force CVT Belt
2022	Can-Am	DS 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2022	Can-Am	DS 90 X	-L	--	U/K	Drive Belt	G-Force CVT Belt
2022	Yamaha	YFM90 Grizzly 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2022	Yamaha	YFM90 Raptor	-L	--	U/K	Drive Belt	G-Force CVT Belt
2022	Yamaha	YFZ50	-L	--	U/K	Drive Belt	G-Force CVT Belt
2021	Can-Am	DS 70	-L	--	U/K	Drive Belt	G-Force CVT Belt
2021	Can-Am	DS 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2021	Can-Am	DS 90 X	-L	--	U/K	Drive Belt	G-Force CVT Belt
2021	Yamaha	YFM700R Raptor 700R SE	-L	--	U/K	Drive Belt	G-Force CVT Belt
2021	Yamaha	YFM90 Grizzly 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2021	Yamaha	YFM90 Raptor	-L	--	U/K	Drive Belt	G-Force CVT Belt
2021	Yamaha	YFZ50	-L	--	U/K	Drive Belt	G-Force CVT Belt
2020	Can-Am	DS 70	-L	--	U/K	Drive Belt	G-Force CVT Belt
2020	Can-Am	DS 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2020	Can-Am	DS 90 X	-L	--	U/K	Drive Belt	G-Force CVT Belt
2020	Yamaha	YFM90 Grizzly 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2020	Yamaha	YFM90 Raptor	-L	--	U/K	Drive Belt	G-Force CVT Belt
2020	Yamaha	YFZ50	-L	--	U/K	Drive Belt	G-Force CVT Belt
2019	Can-Am	DS 70	-L	--	U/K	Drive Belt	G-Force CVT Belt
2019	Can-Am	DS 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2019	Can-Am	DS 90 X	-L	--	U/K	Drive Belt	G-Force CVT Belt
2019	Yamaha	YFM90 Grizzly 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2019	Yamaha	YFM90 Raptor	-L	--	U/K	Drive Belt	G-Force CVT Belt
2019	Yamaha	YFZ50	-L	--	U/K	Drive Belt	G-Force CVT Belt
2018	Can-Am	DS 70	-L	--	U/K	Drive Belt	G-Force CVT Belt
2018	Can-Am	DS 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2018	Can-Am	DS 90 X	-L	--	U/K	Drive Belt	G-Force CVT Belt
2018	Yamaha	YFM90 Raptor	-L	--	U/K	Drive Belt	G-Force CVT Belt
2018	Yamaha	YFZ50	-L	--	U/K	Drive Belt	G-Force CVT Belt
2017	Can-Am	DS 70	-L	--	U/K	Drive Belt	G-Force CVT Belt
2017	Can-Am	DS 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2017	Can-Am	DS 90 X	-L	--	U/K	Drive Belt	G-Force CVT Belt
2017	Yamaha	YFM90 Raptor	-L	--	U/K	Drive Belt	G-Force CVT Belt
2017	Yamaha	YFM90R Raptor	-L	--	U/K	Drive Belt	G-Force CVT Belt
2017	Yamaha	YFZ50	-L	--	U/K	Drive Belt	G-Force CVT Belt
2016	Can-Am	DS 70	-L	--	U/K	Drive Belt	G-Force CVT Belt
2016	Can-Am	DS 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2016	Can-Am	DS 90 X	-L	--	U/K	Drive Belt	G-Force CVT Belt
2016	Yamaha	YFM90 Raptor	-L	--	U/K	Drive Belt	G-Force CVT Belt
2015	Can-Am	DS 70	-L	--	U/K	Drive Belt	G-Force CVT Belt
2015	Can-Am	DS 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2015	Can-Am	DS 90 X	-L	--	U/K	Drive Belt	G-Force CVT Belt
2014	Can-Am	DS 70	-L	--	U/K	Drive Belt	G-Force CVT Belt
2014	Can-Am	DS 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2014	Can-Am	DS 90 X	-L	--	U/K	Drive Belt	G-Force CVT Belt
2013	Can-Am	DS 70	-L	--	U/K	Drive Belt	G-Force CVT Belt
2013	Can-Am	DS 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2013	Can-Am	DS 90 X	-L	--	U/K	Drive Belt	G-Force CVT Belt
2012	Can-Am	DS 70	-L	--	U/K	Drive Belt	G-Force CVT Belt
2012	Can-Am	DS 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2012	Can-Am	DS 90 X	-L	--	U/K	Drive Belt	G-Force CVT Belt
2011	Can-Am	DS 70	-L	--	U/K	Drive Belt	G-Force CVT Belt
2011	Can-Am	DS 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2011	Can-Am	DS 90 X	-L	--	U/K	Drive Belt	G-Force CVT Belt
2010	Can-Am	DS 70	-L	--	U/K	Drive Belt	G-Force CVT Belt
2010	Can-Am	DS 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2010	Can-Am	DS 90 X	-L	--	U/K	Drive Belt	G-Force CVT Belt
2009	Can-Am	DS 70	-L	--	U/K	Drive Belt	G-Force CVT Belt
2009	Can-Am	DS 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
2009	Can-Am	DS 90 X	-L	--	U/K	Drive Belt	G-Force CVT Belt
2008	Can-Am	DS 70	-L	--	U/K	Drive Belt	G-Force CVT Belt
2008	Can-Am	DS 90	-L	--	U/K	Drive Belt	G-Force CVT Belt
No rows match your filter.

Directly replaces or cross-references 5 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Gates — 71G2776BD3-E7641-00BD3-E7641-00-00V23100CJF010V23100CJF020
