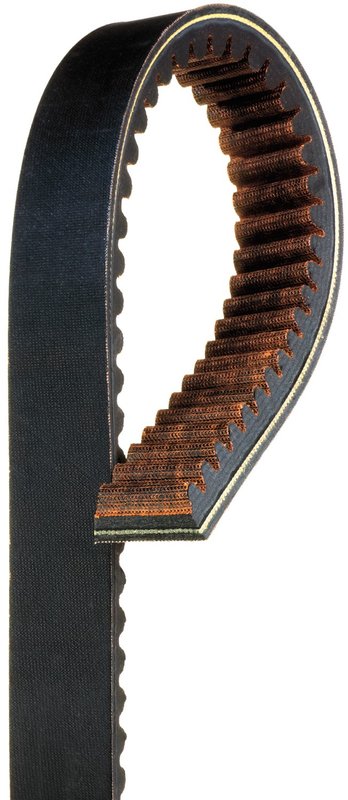

Gates 77G3158 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt

Overview of Gates G-Force CVT Belt 77G3158

The Gates G-Force CVT Belt 77G3158 is engineered for reliable performance in automatic continuously variable transmissions. Designed with durable materials and precise construction, this CVT belt supports smooth power delivery and consistent operation in compatible vehicles.

• Top width: 20 mm (0.769 inches)
• Outside circumference: 819 mm (32.253 inches)
• Notched construction for enhanced flexibility
• Aramid cord material for high tensile strength
• Chloroprene belt material for durability and heat resistance
• Fabric bottom to reduce wear and improve belt life
• Power sport CVT belt type suitable for demanding transmission applications
• Cross section designation: Rvs-r
• 30-degree angle design for optimized belt engagement

Detailed Product Description

The Gates G-Force CVT Belt 77G3158 is part of the G-Force CVT Belt product line, which focuses on delivering reliable and consistent performance for automatic continuously variable transmissions. This belt features a notched construction that enhances flexibility and heat dissipation, critical for maintaining optimal operation under varying load conditions. The use of aramid cords provides superior tensile strength, ensuring the belt withstands the stresses of power transmission without stretching or breaking.

Constructed from chloroprene, the belt material offers resistance to heat, oil, and wear, extending the service life of the belt in demanding environments. The fabric bottom reduces friction and wear against the pulleys, contributing to smoother operation and reduced maintenance needs. With a top width of 20 mm and an outside circumference of 819 mm, this belt is designed to meet specific fitment requirements for certain automatic CVT systems.

Applications and Problem Solving

• Replaces worn or damaged CVT belts in automatic transmissions
• Addresses slipping or loss of power transmission in CVT systems
• Helps reduce belt noise caused by wear or improper fit
• Improves transmission efficiency by maintaining proper belt tension
• Suitable for power sport CVT applications requiring durable belt construction

Installation Notes and Tips

When installing the Gates G-Force CVT Belt 77G3158, ensure the belt is properly aligned with the pulleys to prevent premature wear. Verify the belt tension according to the vehicle manufacturer’s specifications. It is recommended to inspect the pulleys and other transmission components for wear or damage before installation to ensure optimal performance and longevity of the belt.

Quality Assurance and Warranty

Gates manufactures the G-Force CVT Belt 77G3158 to meet OE performance standards, providing reliable quality and durability. The belt’s aramid cords and chloroprene material contribute to its long service life under normal operating conditions. While specific warranty details are not provided, Gates products typically come with manufacturer-backed quality assurance to support professional automotive repair and maintenance.
