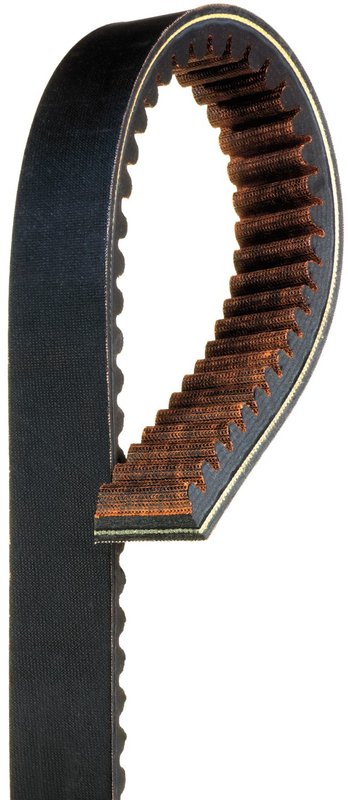

Gates 80G2949 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt
| Brand | Gates 80G2949 |
|---|---|
| Position | Drive Belt |
| Top Width | .797 |
| Top Width | 20 |
| Construction | Notched |
| Color | Black |
| Cord Material | Aramid |
| Cross Section Designation | Rvs-r |
| Outside Circumference | 30.163 |
| Outside Circumference | 766 |
| Type | Power sport cvt belt |
| Belt Material | Chloroprene |
| Angle | 32 |
| 9837 | Yes |
| Angle | 32 |
| Belt Material | Chloroprene |
| Color | Black |
| Construction | Notched |
| Cord Material | Aramid |
| Fabric Bottom | Yes |
| Notched | Yes |
| OE Comparison Rating | Oe performance |
| Outside Circumference (in) | 30.163 |
| Outside Circumference (mm) | 766 |
| Section | Rvs-r |
| Top Width (in) | .797 |
| Top Width (mm) | 20 |
| Type | Power sport cvt belt |
| Fits | — |
OE performance rating. Built to match original-equipment performance expectations.
Notched construction. Helps the belt flex smoothly under demanding use.
Aramid cord reinforcement. Adds strength for tough tasks and trail riding.
Cross-references Gates 80G2949 and 0454497 for the same application. See all 2.
Gates G-Force CVT Belt 80G2949
The Gates G-Force CVT Belt 80G2949 is a power sport CVT belt built for automatic continuously variable transmissions in demanding off-road and utility use. It is engineered for vehicles with engines under 800cc and is suited for riders and owners who need consistent belt performance under load.
Key Features
- Gates G-Force WorkHorse belt line for tough trail and task use
- Power Sport CVT belt for automatic continuously variable transmission systems
- Aramid cord material for added tensile strength
- Notched construction to support flexibility in CVT operation
- Chloroprene belt material with a black finish
- OE performance rating for OE-style service replacement
- Top width: 0.797 in. (20 mm)
- Outside circumference: 30.163 in. (766 mm)
- Cross section designation: RVS-R
Product Details
Gates 80G2949 is part of the G-Force WorkHorse CVT belt line, a product family focused on demanding power sport applications. This belt uses aramid cord reinforcement, a notched profile, and chloroprene construction to match the operating needs of CVT drivetrains that see frequent load changes. If you are searching for a Gates CVT belt 80G2949 for a UTV, side-by-side, or other sub-800cc power sport application, this part is built around those requirements. This part cross-references Monroe Shocks & Struts (e.g., 0454497) for the same application.
Common Issues This Belt Can Address
- Slipping or inconsistent CVT engagement
- Loss of drive transfer under acceleration or load
- Worn, glazed, or stretched belt replacement needs
- Noise or vibration related to belt wear
- Reduced performance in trail or work conditions
Installation Notes and Tips
Verify belt dimensions, section designation, and CVT system requirements before installation. Inspect pulleys, sheaves, and clutch surfaces for wear or contamination, since belt condition is affected by the rest of the transmission system. For fitment-based searches, use the exact vehicle application and confirm the Gates 80G2949 part number against the original belt specification before service.
Quality Assurance
Gates manufactures the G-Force WorkHorse line for OE performance-level replacement in power sport CVT applications. The 80G2949 is built to Gates dimensional and material specifications for consistent transmission service in compatible vehicles.
