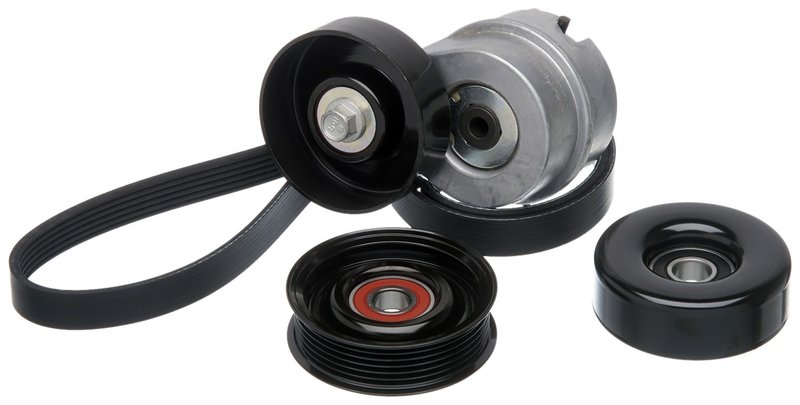

Gates 90K-38138A Serpentine Belt Drive Component Kit

Overview of Gates Accessory Belt Drive Kit 90K-38138A

The Gates Accessory Belt Drive Kit 90K-38138A is designed specifically for Ford F-150 models, providing a complete serpentine belt drive component solution. This kit includes a belt, tensioner, and two idler pulleys engineered to maintain optimal accessory drive system performance.

• Complete serpentine belt drive component kit
• Includes belt, tensioner assembly, and two idler pulleys
• Belt outside circumference: 102.09 inches (2593 mm)
• Belt top width: 0.807 inches (20 mm)
• Compatible with Ford F-150 models
• Part number: 90K-38138A

Details on the Accessory Belt Drive Kit Product Line

The Gates Accessory Belt Drive Kit product line offers comprehensive solutions for accessory drive systems by combining essential components into one kit. This approach simplifies maintenance and replacement by providing a matched set of belt, tensioner, and idler pulleys designed to work together. The 90K-38138A kit is part of this line, ensuring compatibility and reliable operation for Ford F-150 vehicles.

Technical Specifications and Features

The serpentine belt included in this kit has an outside circumference of 102.09 inches (2593 mm) and a belt top width of 0.807 inches (20 mm), matching the original equipment specifications for the Ford F-150. The kit contains the belt (part number K061015), a tensioner assembly (part number 38138), and two idler pulleys (part numbers 36327 and 38001). These components are engineered to maintain proper belt tension and routing, reducing wear and ensuring efficient accessory drive operation.

Common Applications and Problem Solving

• Replacement of worn or damaged serpentine belts on Ford F-150
• Resolving belt slippage or squealing noises
• Addressing tensioner failure or loss of belt tension
• Replacing faulty or noisy idler pulleys
• Preventing accessory drive system breakdowns due to component wear

Installation Notes and Tips

Installation of the Gates Accessory Belt Drive Kit 90K-38138A requires proper routing of the serpentine belt according to the Ford F-150 service manual. It is recommended to replace the tensioner and idler pulleys simultaneously with the belt to ensure consistent tension and alignment. Use appropriate tools to relieve tension on the belt tensioner during installation and verify belt alignment on all pulleys before starting the engine.

Quality Assurance and Warranty

Gates manufactures the Accessory Belt Drive Kit 90K-38138A to meet or exceed OEM standards for durability and performance. Each component undergoes rigorous quality control to ensure reliable operation in Ford F-150 vehicles. Warranty coverage details should be confirmed with the product documentation or authorized distributors.
