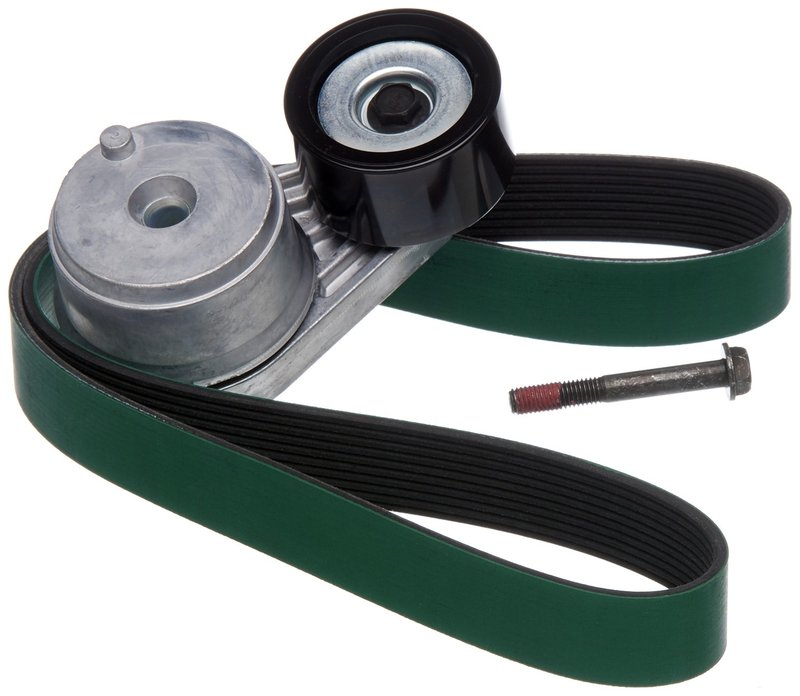

Gates 90K-38503HDA Serpentine Belt Drive Component Kit - Fan

Reliable Gates Accessory Belt Drive Kit Overview

The Gates Accessory Belt Drive Kit 90K-38503HDA is designed to provide a complete serpentine belt drive solution. This kit includes a high-quality belt and tensioner assembly engineered to maintain optimal accessory drive system performance for compatible vehicles.

• Includes serpentine belt and tensioner assembly (part number 38503)
• Belt outside circumference: 1356 mm (53.38 inches)
• Belt top width: 35 mm (1.367 inches)
• Belt part number: K100529hd
• Designed for precise fit and reliable operation in accessory drive systems

Detailed Product Description and Specifications

The Gates Accessory Belt Drive Kit 90K-38503HDA features a serpentine belt with an outside circumference of 1356 mm (53.38 inches) and a belt top width of 35 mm (1.367 inches). The included belt, part number K100529hd, is engineered to meet exacting dimensional standards to ensure proper tension and alignment within the accessory drive system. The tensioner assembly, part number 38503, is designed to maintain consistent belt tension, reducing slippage and wear. This kit is part of the Gates Accessory Belt Drive Kit product line, which focuses on providing comprehensive solutions for accessory drive belt system components, combining belts and tensioners for streamlined maintenance and replacement.

Common Applications and Issues Addressed

• Replacement of worn or damaged serpentine belts in compatible vehicles
• Resolving belt slippage or squealing noises caused by tensioner failure
• Addressing accessory drive system malfunctions due to improper belt tension
• Preventing premature belt wear from misalignment or tension loss
• Maintaining reliable operation of alternator, power steering, and air conditioning components

Installation Notes and Tips

When installing the Gates Accessory Belt Drive Kit 90K-38503HDA, ensure the belt is routed correctly according to the vehicle’s belt routing diagram. Verify that the tensioner assembly is properly mounted and functioning to maintain correct belt tension. It is recommended to inspect pulleys and other accessory drive components for wear or damage during installation. Proper alignment and tension are critical to prevent premature belt failure and ensure smooth operation.

Quality Assurance and Warranty Information

Gates manufactures the Accessory Belt Drive Kit 90K-38503HDA to meet stringent quality standards. The components are engineered for durability and consistent performance in accessory drive systems. While specific warranty details are not provided here, Gates typically offers warranties covering defects in materials and workmanship. For exact warranty terms, consult the product documentation or Gates customer support.
