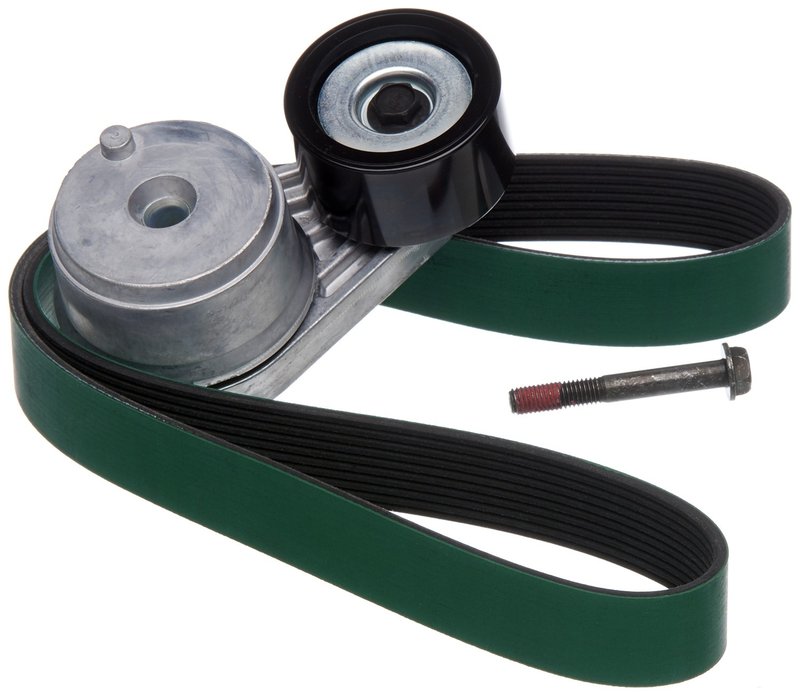

Gates 90K-38503HDB Serpentine Belt Drive Component Kit - Fan

Overview of Gates Accessory Belt Drive Kit 90K-38503HDB

The Gates Accessory Belt Drive Kit 90K-38503HDB is designed to provide reliable serpentine belt system performance. This kit includes a high-quality belt and tensioner assembly engineered to meet specific vehicle requirements, ensuring proper fit and function.

• Includes serpentine belt and tensioner assembly (part number 38503)
• Belt outside circumference: 1487 mm (58.527 inches)
• Belt top width: 35 mm (1.367 inches)
• Belt part number: K100579hd
• Designed for accessory drive belt system components

Details on the Gates Accessory Belt Drive Kit Product Line

The Accessory Belt Drive Kit from Gates is a comprehensive solution for maintaining the serpentine belt system in various vehicles. This product line focuses on delivering matched components, such as belts and tensioners, that work together to optimize accessory drive performance and durability. The 90K-38503HDB kit exemplifies this approach by combining a precisely sized belt with a compatible tensioner assembly.

Technical Specifications and Features

The serpentine belt included in this kit measures 1487 mm (58.527 inches) in outside circumference, with a belt top width of 35 mm (1.367 inches). These dimensions ensure compatibility with specific accessory drive systems requiring this size. The tensioner assembly, identified by part number 38503, is designed to maintain proper belt tension, reducing slippage and wear. The belt itself carries the part number K100579hd, allowing for easy identification and replacement.

Common Applications and Problem Resolution

• Replacement of worn or damaged serpentine belts in compatible vehicles
• Addressing belt slippage or squealing noises due to tensioner failure
• Resolving accessory drive system malfunctions caused by improper belt tension
• Preventing premature belt wear from misaligned or faulty tensioners
• Maintaining optimal performance of alternator, power steering, and air conditioning components

Installation Notes and Tips

When installing the Gates Accessory Belt Drive Kit 90K-38503HDB, ensure the belt is routed correctly according to the vehicle’s serpentine belt diagram. Verify that the tensioner assembly is properly mounted and functioning to maintain correct belt tension. It is recommended to inspect pulleys and other drive components for wear during installation to prevent future issues.

Quality Assurance and Warranty

Gates manufactures the Accessory Belt Drive Kit to meet industry standards for durability and performance. While specific warranty details are not provided here, Gates products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Using genuine Gates components helps ensure reliable operation of the accessory drive system.
