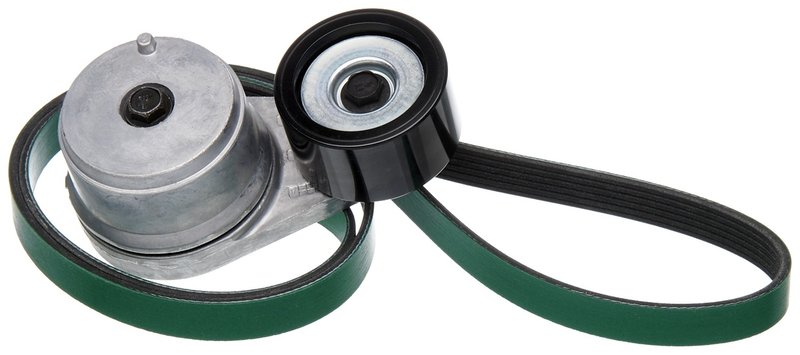

Gates 90K-38505HDA Serpentine Belt Drive Component Kit - Air Conditioning

Reliable Gates Accessory Belt Drive Kit Overview

The Gates Accessory Belt Drive Kit 90K-38505HDA is designed to provide a complete serpentine belt drive solution. This kit includes a high-quality belt and tensioner assembly engineered to maintain optimal accessory drive performance for various vehicle applications.

• Includes serpentine belt and tensioner assembly (part number 38505)
• Belt outside circumference: 1385 mm (54.521 inches)
• Belt top width: 20 mm (0.807 inches)
• Belt part number: K060539hd
• Designed for accessory drive belt system components

About the Gates Accessory Belt Drive Kit Product Line

The Gates Accessory Belt Drive Kit product line focuses on providing comprehensive solutions for serpentine belt drive systems. These kits combine belts and tensioners engineered to work together, ensuring proper tension and alignment. The 90K-38505HDA kit is part of this line, offering components that meet precise dimensional specifications to support reliable accessory drive operation.

Technical Details and Specifications

This serpentine belt drive component kit features a belt with an outside circumference of 1385 mm (54.521 inches) and a top width of 20 mm (0.807 inches). The included belt, part number K060539hd, is designed to fit accessory drive systems requiring these exact dimensions. The tensioner assembly, part number 38505, complements the belt to maintain proper tension and reduce wear. Together, these components help ensure consistent power delivery to engine accessories such as the alternator, power steering pump, and air conditioning compressor.

Common Applications and Problem Solving

• Replacement for worn or damaged serpentine belts in compatible vehicles
• Resolving belt slippage or squealing noises due to improper tension
• Addressing accessory drive system failures caused by belt or tensioner wear
• Preventing premature belt wear from misalignment or tension issues
• Maintaining engine accessory performance and reliability

Installation Notes and Tips

When installing the Gates Accessory Belt Drive Kit 90K-38505HDA, ensure the belt is routed correctly according to the vehicle’s belt routing diagram. Verify the tensioner assembly is properly mounted and functioning to maintain correct belt tension. It is recommended to inspect pulleys and accessory components for wear during installation to avoid premature belt failure. Use appropriate tools to relieve tension safely and avoid damage to the belt or tensioner.

Quality Assurance and Warranty

Gates manufactures the Accessory Belt Drive Kit 90K-38505HDA to meet industry standards for durability and performance. The components are engineered for compatibility and longevity within accessory drive systems. Warranty coverage details should be confirmed with the product documentation or supplier, ensuring peace of mind with your purchase.
