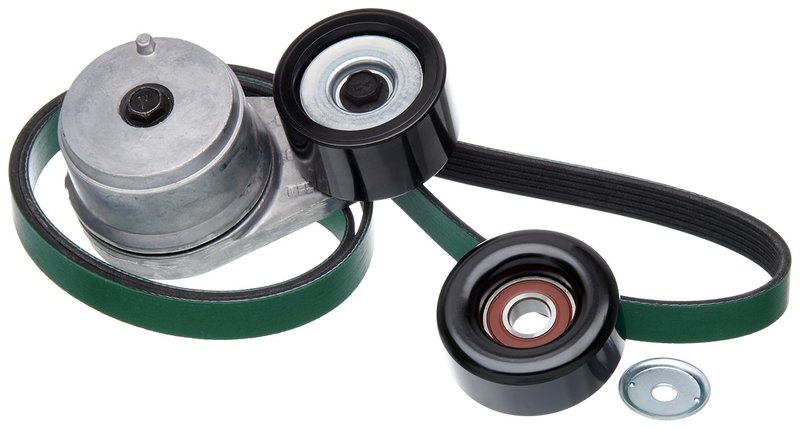

Gates 90K-38505HDB Serpentine Belt Drive Component Kit - Air Conditioning

Reliable Gates Accessory Belt Drive Kit Overview

The Gates Accessory Belt Drive Kit 90K-38505HDB is designed to provide a complete serpentine belt drive solution. This kit includes a belt, tensioner, and idler pulley engineered to meet precise specifications for optimal performance in compatible vehicles.

• Complete serpentine belt drive component kit
• Belt outside circumference: 1325 mm (52.175 inches)
• Belt top width: 20 mm (0.807 inches)
• Includes belt (part number K060516hd), tensioner assembly (part number 38505), and idler pulley (part number 36225)
• Part number 90K-38505HDB for accurate identification

About the Gates Accessory Belt Drive Kit Product Line

The Gates Accessory Belt Drive Kit product line offers comprehensive solutions for serpentine belt systems, combining essential components such as belts, tensioners, and idler pulleys. This integrated approach ensures compatibility and reliable operation, reducing the risk of premature wear and system failure. The 90K-38505HDB kit is part of this line, designed to meet stringent quality and dimensional standards.

Technical Specifications and Detailed Description

This serpentine belt drive component kit features a belt with an outside circumference of 1325 mm (52.175 inches) and a top width of 20 mm (0.807 inches), providing the correct fit and tension for compatible accessory drive systems. The included belt (K060516hd) is engineered for durability and consistent performance. The tensioner assembly (38505) maintains proper belt tension, while the idler pulley (36225) supports smooth belt routing and reduces wear. Together, these components ensure efficient power transmission to engine accessories.

Common Applications and Issues Addressed

• Replacement of worn or damaged serpentine belts in compatible vehicles
• Resolving belt slippage or squealing noises due to tensioner failure
• Addressing idler pulley wear that can cause belt misalignment
• Preventing accessory drive system breakdowns by renewing critical components
• Maintaining proper belt tension and alignment for optimal engine accessory operation

Installation Notes and Tips

When installing the Gates Accessory Belt Drive Kit 90K-38505HDB, ensure the belt is routed according to the vehicle’s specific serpentine belt diagram. Verify that the tensioner assembly is properly mounted and provides adequate tension. Inspect pulleys for smooth rotation before installation. Use appropriate tools to avoid damage to the belt or components during installation.

Quality Assurance and Warranty Information

Gates manufactures the Accessory Belt Drive Kit 90K-38505HDB to meet industry standards for durability and performance. Each component undergoes rigorous quality control to ensure reliable operation. While specific warranty details may vary, Gates typically offers coverage against defects in materials and workmanship for a defined period. Consult product documentation or authorized sources for exact warranty terms.
