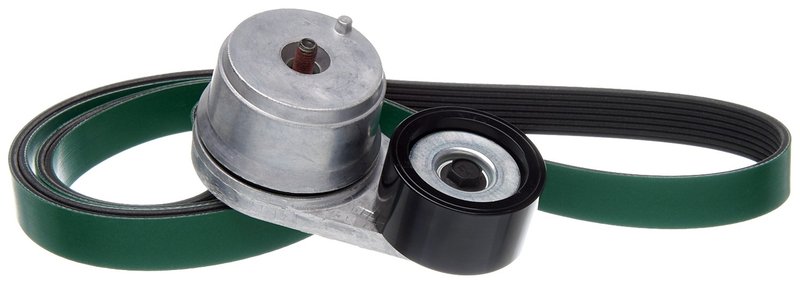

Gates 90K-38506HDH Serpentine Belt Drive Component Kit - Fan and Alternator

Overview of Gates Accessory Belt Drive Kit 90K-38506HDH

The Gates Accessory Belt Drive Kit 90K-38506HDH is designed to provide reliable serpentine belt system performance. This kit includes a serpentine belt and a tensioner assembly engineered to meet specific outside circumference and width requirements for precise fitment.

• Includes serpentine belt with an outside circumference of 72.625 inches (1845 mm)
• Belt top width measures 1.087 inches (28 mm)
• Tensioner assembly part number 38506 included for optimal belt tension
• Serpentine belt part number K080720hd
• Designed for use in accessory drive belt systems requiring these exact dimensions

Detailed Product Description

This Accessory Belt Drive Kit from Gates features a serpentine belt with an outside circumference of 72.625 inches (1845 mm) and a belt top width of 1.087 inches (28 mm). The included tensioner assembly (part number 38506) ensures proper belt tension and alignment, which is critical for maintaining accessory drive system efficiency. The belt part number K080720hd corresponds to the specific belt included in this kit, ensuring compatibility with vehicles requiring these dimensions.

The Gates Accessory Belt Drive Kit product line focuses on providing complete solutions for accessory drive belt systems, combining belts and tensioners engineered to work together. This integration helps maintain consistent performance and reduces the risk of premature belt wear or failure.

Common Applications and Issues Addressed

• Replacement of worn or damaged serpentine belts with exact outside circumference and width specifications
• Resolving belt slippage or squealing caused by improper tension
• Addressing accessory drive system noise due to belt misalignment
• Preventing accessory component failure by maintaining correct belt tension
• Upgrading to a matched belt and tensioner kit for improved system reliability

Installation Notes and Tips

Ensure the belt and tensioner assembly part numbers match your vehicle’s requirements before installation. Proper routing of the serpentine belt according to the vehicle’s belt diagram is essential. Use appropriate tools to relieve tension on the tensioner assembly during belt installation. Verify belt tension and alignment after installation to prevent premature wear.

Quality Assurance and Warranty

Gates manufactures the Accessory Belt Drive Kit 90K-38506HDH to meet industry standards for durability and performance. The components are engineered for compatibility and longevity within accessory drive belt systems. Warranty coverage details should be confirmed with the original equipment manufacturer or authorized distributor.
