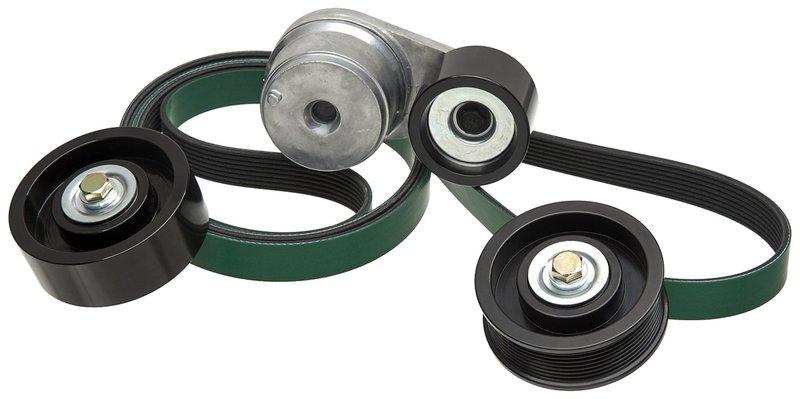

Gates 90K-38510HD Serpentine Belt Drive Component Kit - Water Pump or Fan and Alternator

Reliable Gates Accessory Belt Drive Kit Overview

The Gates Accessory Belt Drive Kit 90K-38510HD is designed to provide a complete serpentine belt drive solution. This kit includes a high-quality belt, tensioner assembly, and two idler pulleys engineered to maintain optimal accessory drive system performance.

• Includes belt, tensioner assembly (part number 38510), and two idler pulleys (part numbers 36287 and 36288)
• Belt outside circumference: 110.79 inches (2814 mm)
• Belt top width: 1.087 inches (28 mm)
• Serpentine belt part number: K081102hd
• Designed for precise fit and reliable operation in compatible vehicle models

Detailed Product Description and Specifications

The Gates Accessory Belt Drive Kit 90K-38510HD features a serpentine belt with an outside circumference of 110.79 inches (2814 mm) and a belt top width of 1.087 inches (28 mm). This kit includes the belt (part number K081102hd), a tensioner assembly (part number 38510), and two idler pulleys (part numbers 36287 and 36288). Each component is engineered to work together to ensure proper tension and alignment of the accessory drive system, reducing wear and improving belt life.

The Accessory Belt Drive Kit product line from Gates is designed to provide a comprehensive solution for accessory drive system maintenance. By including all critical serpentine belt components, this kit simplifies replacement and helps maintain the performance and reliability of the vehicle’s belt-driven accessories.

Common Applications and Issues Addressed

• Replacement of worn or damaged serpentine belts in compatible vehicles
• Resolving belt slippage or squealing noises caused by tensioner or idler pulley wear
• Addressing accessory drive system failures due to belt misalignment or tension loss
• Preventing premature belt wear by ensuring proper tension and pulley function

Installation Notes and Tips

When installing the Gates Accessory Belt Drive Kit 90K-38510HD, ensure the belt is routed correctly according to the vehicle’s belt routing diagram. Verify that the tensioner assembly and idler pulleys are properly aligned and securely mounted. Use appropriate tools to apply tension and check for smooth pulley rotation. It is recommended to inspect all accessory drive components during installation to identify any additional wear or damage.

Quality Assurance and Warranty

Gates manufactures the Accessory Belt Drive Kit 90K-38510HD to meet strict quality standards for durability and performance. Each component undergoes rigorous testing to ensure compatibility and reliability in the accessory drive system. While specific warranty details are not provided here, Gates typically offers coverage against defects in materials and workmanship. Consult product documentation or authorized distributors for warranty information.
