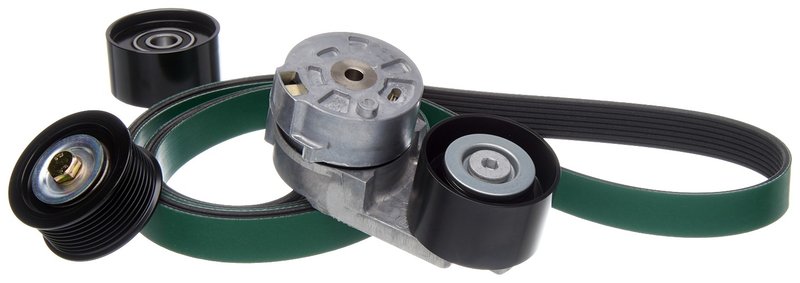

Gates 90K-38569HDA Serpentine Belt Drive Component Kit - Fan and Alternator

Reliable Gates Accessory Belt Drive Kit Overview

The Gates Accessory Belt Drive Kit 90K-38569HDA is designed to provide a complete serpentine belt drive solution. This kit includes a belt, tensioner, and two idler pulleys engineered to meet precise specifications for optimal performance and durability.

• Includes serpentine belt, tensioner assembly, and two idler pulleys
• Belt outside circumference: 2531 mm (99.65 inches)
• Belt top width: 28 mm (1.087 inches)
• Tensioner assembly part number: 38569
• Idler pulleys part numbers: 36091 and 36341

Detailed Product Specifications and Features

This Accessory Belt Drive Kit from Gates features a serpentine belt with an outside circumference of 2531 mm (99.65 inches) and a top width of 28 mm (1.087 inches), ensuring compatibility with specific vehicle accessory drive systems. The kit includes a tensioner assembly (part number 38569) designed to maintain proper belt tension and reduce slippage. Two idler pulleys (part numbers 36091 and 36341) are included to guide and support the belt, contributing to smooth operation and extended component life.

The Gates Accessory Belt Drive Kit line is engineered to provide a comprehensive solution for accessory drive belt replacement, combining all necessary components in one kit. This approach simplifies maintenance and ensures that all parts work together to meet factory specifications.

Common Applications and Problem Resolution

• Replacement of worn or damaged serpentine belts in compatible vehicles
• Resolving belt slippage or squealing noises due to tensioner failure
• Addressing accessory drive system misalignment caused by faulty idler pulleys
• Preventing premature belt wear from improper tension or pulley issues
• Maintaining optimal engine accessory performance and reliability

Installation Notes and Tips

When installing the Gates Accessory Belt Drive Kit 90K-38569HDA, ensure the belt is routed correctly according to the vehicle’s belt routing diagram. Verify that the tensioner assembly is properly mounted and provides adequate tension to the belt. Inspect idler pulleys for smooth rotation and secure attachment. It is recommended to replace all components in the kit simultaneously to maintain system integrity and avoid future failures.

Quality Assurance and Warranty Information

Gates manufactures the Accessory Belt Drive Kit 90K-38569HDA to meet stringent quality standards. Each component is tested for durability and performance to ensure reliable operation. While specific warranty details are not provided here, Gates typically offers coverage against defects in materials and workmanship. Consult the product packaging or manufacturer’s website for exact warranty terms.
