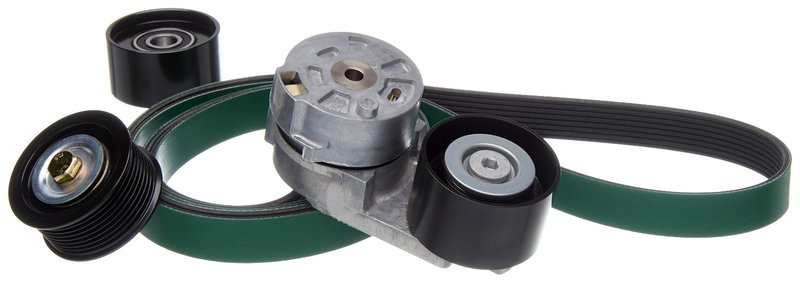

Gates 90K-38569HDB Serpentine Belt Drive Component Kit - Fan and Alternator

Reliable Gates Accessory Belt Drive Kit Overview

The Gates Accessory Belt Drive Kit 90K-38569HDB is designed to provide a complete serpentine belt drive solution for various vehicle makes and models. This kit includes a high-quality belt, tensioner assembly, and two idler pulleys engineered to maintain optimal accessory drive system performance.

• Includes belt, tensioner assembly (part number 38569), and two idler pulleys (part numbers 36091 and 36341)
• Belt outside circumference: 109.375 inches (2778 mm)
• Belt top width: 1.087 inches (28 mm)
• Compatible serpentine belt part number: K081088hd
• Designed for precise fit and reliable operation in accessory drive systems

Detailed Product Description and Specifications

This serpentine belt drive component kit from Gates features a belt with an outside circumference of 109.375 inches (2778 mm) and a top width of 1.087 inches (28 mm), ensuring proper tension and alignment within the accessory drive system. The included tensioner assembly (part number 38569) and two idler pulleys (36091 and 36341) work together to maintain consistent belt tension and reduce wear, contributing to the longevity of the belt and associated components.

The belt included in this kit is identified by part number K081088hd, matching the precise dimensions required for compatible vehicles. This kit is engineered to meet the demands of various automotive applications, including popular makes and models such as Ford F-150, Chevrolet Silverado, and Dodge Ram, providing a reliable replacement option for accessory drive belt systems.

About the Gates Accessory Belt Drive Kit Product Line

The Gates Accessory Belt Drive Kit product line offers comprehensive solutions for serpentine belt drive systems by combining belts, tensioners, and idler pulleys into a single kit. This approach simplifies maintenance and replacement by ensuring all critical components are matched for optimal performance and durability. The 90K-38569HDB kit exemplifies this by including all necessary parts to restore proper accessory drive function.

Common Issues Addressed by This Kit

• Worn or cracked serpentine belts causing slipping or noise
• Faulty tensioner assemblies leading to improper belt tension
• Damaged or seized idler pulleys affecting belt alignment
• Accessory drive system failures impacting alternator, power steering, or air conditioning operation
• Preventative maintenance to avoid unexpected breakdowns

Installation Notes and Tips

When installing the Gates Accessory Belt Drive Kit 90K-38569HDB, ensure the belt is routed correctly according to the vehicle’s serpentine belt diagram. Verify that the tensioner assembly and idler pulleys are securely mounted and rotate freely without resistance. It is recommended to inspect related components such as the water pump and alternator pulleys during installation to ensure overall system integrity.

Quality Assurance and Warranty

Gates manufactures this Accessory Belt Drive Kit to meet strict quality standards, ensuring reliable performance and durability. While specific warranty details for part number 90K-38569HDB may vary, Gates typically offers limited warranties covering defects in materials and workmanship. Refer to Gates’ official documentation for exact warranty terms applicable to this kit.
