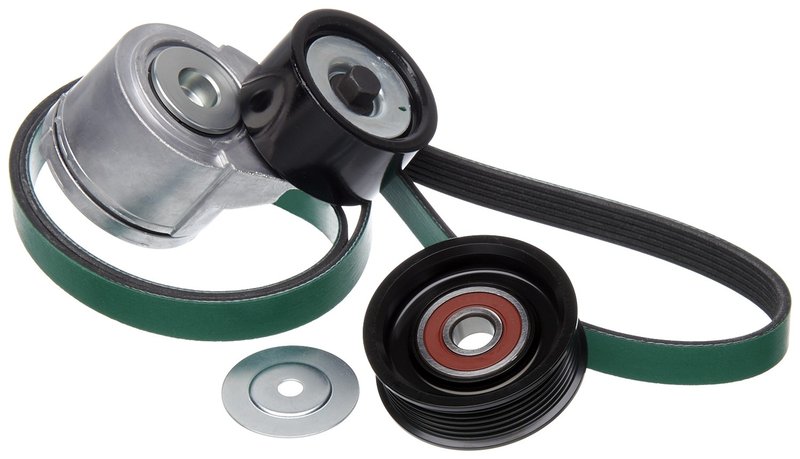

Gates 90K-38610HDC Serpentine Belt Drive Component Kit - Air Conditioning

Reliable Gates Accessory Belt Drive Kit Overview

The Gates Accessory Belt Drive Kit 90K-38610HDC is designed to provide a complete serpentine belt drive solution. This kit includes a belt, tensioner, and idler pulley engineered to meet precise specifications for optimal performance in compatible vehicles.

• Includes serpentine belt, tensioner assembly (part number 38610), and idler pulley (part number 36223)
• Belt outside circumference: 64.342 inches (1634 mm)
• Belt top width: 0.807 inches (20 mm)
• Belt part number: K060637hd
• Designed for accessory drive belt system components

About the Gates Accessory Belt Drive Kit Product Line

The Accessory Belt Drive Kit from Gates is a comprehensive solution for serpentine belt drive systems. This product line focuses on providing all necessary components—belt, tensioner, and idler pulley—in one kit to ensure proper fit and function. The 90K-38610HDC kit is engineered to meet exacting standards for durability and performance, making it suitable for vehicles requiring replacement of these specific parts.

Technical Details and Specifications

The serpentine belt included in this kit has an outside circumference of 64.342 inches (1634 mm) and a top width of 0.807 inches (20 mm), matching the original equipment specifications. The tensioner assembly (part number 38610) and idler pulley (part number 36223) are designed to maintain proper belt tension and alignment, reducing wear and extending component life. The belt part number K060637hd ensures compatibility with the tensioner and idler components for a cohesive system.

Common Applications and Problem Solving

• Replacement of worn or damaged serpentine belts in compatible vehicles
• Resolving belt slippage or squealing noises due to tensioner failure
• Addressing idler pulley wear that causes misalignment or belt damage
• Preventing accessory drive system failures by renewing critical components
• Maintaining proper engine accessory function such as alternator, power steering, and air conditioning

Installation Notes and Tips

When installing the Gates Accessory Belt Drive Kit 90K-38610HDC, ensure the belt is routed according to the vehicle’s belt routing diagram. Verify the tensioner assembly is properly seated and the idler pulley spins freely without noise or resistance. Use appropriate tools to relieve tension on the belt tensioner during installation. Double-check belt alignment to prevent premature wear.

Quality Assurance and Warranty

Gates manufactures the Accessory Belt Drive Kit to meet stringent quality standards. Each component is tested for durability and performance to ensure reliable operation. While specific warranty details are not provided here, Gates typically offers limited warranties on their belt drive components. Refer to the manufacturer’s documentation for exact warranty terms.
