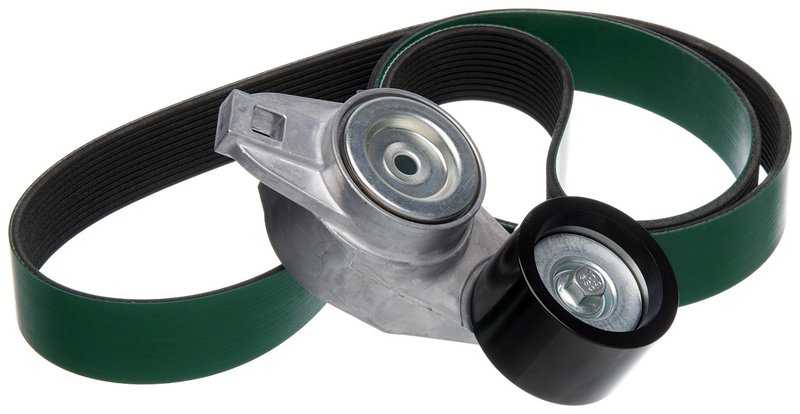

Gates 90K-38633HD Serpentine Belt Drive Component Kit - Fan

Reliable Gates Accessory Belt Drive Kit Overview

The Gates Accessory Belt Drive Kit 90K-38633HD is designed to provide a complete serpentine belt drive solution. This kit includes a high-quality belt and tensioner assembly engineered to maintain optimal accessory drive system performance for various vehicle makes and models.

• Includes serpentine belt with an outside circumference of 64.625 inches (1641 mm)
• Belt top width measures 1.647 inches (42 mm) for precise fitment
• Comes with a tensioner assembly, part number 38633, for proper belt tension
• Serpentine belt part number K120640hd ensures compatibility and durability
• Designed for use in accessory drive belt system components

About the Gates Accessory Belt Drive Kit Product Line

The Gates Accessory Belt Drive Kit product line focuses on providing comprehensive solutions for serpentine belt drive systems. This kit combines a durable belt and a tensioner assembly to ensure consistent power transmission to engine accessories. The 90K-38633HD kit is part of this line, offering components engineered to meet specific dimensional requirements such as a 64.625-inch outside circumference and a 1.647-inch belt width, supporting reliable operation in compatible vehicles.

Technical Details and Specifications

The serpentine belt included in this kit has an outside circumference of 64.625 inches (1641 mm), which is critical for proper routing and tension in the accessory drive system. The belt top width of 1.647 inches (42 mm) ensures a secure grip on pulleys, reducing slippage and wear. The tensioner assembly, identified by part number 38633, maintains the correct belt tension to prevent premature belt failure and maintain accessory function. The belt part number K120640hd corresponds to a heavy-duty design suitable for demanding engine environments.

Common Applications and Problem Solving

• Replaces worn or cracked serpentine belts causing squealing or slipping
• Addresses tensioner failure that leads to improper belt tension and accessory malfunction
• Restores proper accessory drive function in vehicles experiencing belt misalignment
• Prevents overheating and battery charging issues related to belt drive problems
• Suitable for vehicles requiring a 64.625-inch belt circumference and 1.647-inch width

Installation Notes and Tips

Ensure the belt routing matches the vehicle’s accessory drive diagram before installation. Verify the belt circumference and width correspond to the original equipment specifications. When installing the tensioner assembly, confirm proper alignment and tension to avoid premature belt wear. Use appropriate tools to relieve tension safely and avoid damage to the tensioner or belt.

Quality Assurance and Warranty

Gates manufactures the Accessory Belt Drive Kit 90K-38633HD to meet industry standards for durability and performance. The components undergo rigorous testing to ensure reliable operation under typical driving conditions. Warranty coverage details should be confirmed with the product documentation or authorized distributors.
