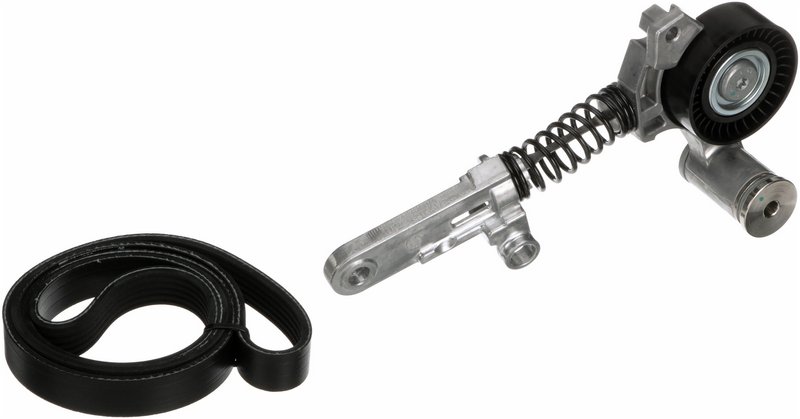

Gates 90K-39396 Serpentine Belt Drive Component Kit

Reliable Accessory Belt Drive Kit for Toyota and Scion Vehicles

The Gates Accessory Belt Drive Kit 90K-39396 is designed to provide a complete serpentine belt drive solution for select Toyota and Scion models. This kit includes a high-quality belt and tensioner assembly engineered to meet precise fitment requirements for vehicles like the Toyota Corolla, Corolla iM, and Scion C-HR.

• Includes serpentine belt and tensioner assembly (part number 39396)
• Belt outside circumference: 48.625 inches (1235 mm)
• Belt top width: 0.807 inches (20 mm)
• Compatible with Toyota Corolla, Corolla iM, and Scion C-HR models
• Part number: 90K-39396

About the Gates Accessory Belt Drive Kit

The Gates Accessory Belt Drive Kit line offers comprehensive solutions for accessory drive systems, combining belts and tensioners designed to work together for optimal performance. The 90K-39396 kit includes a serpentine belt with a precise outside circumference of 48.625 inches and a top width of 0.807 inches, paired with a matching tensioner assembly (part number 39396). This ensures proper belt tension and alignment, reducing wear and maintaining efficient power transmission to engine accessories.

Product Details and Specifications

This serpentine belt drive component kit features a belt with an outside circumference of 1235 mm (48.625 inches) and a top width of 20 mm (0.807 inches). The included tensioner assembly is specifically designed to fit the belt and maintain correct tension throughout its service life. The belt part number K060480 corresponds to the included serpentine belt, ensuring compatibility and ease of replacement. This kit is engineered for use in select Toyota and Scion vehicles, including the Toyota Corolla, Corolla iM, and Scion C-HR, providing a reliable solution for accessory drive maintenance.

Common Applications and Issues Addressed

• Replacement of worn or cracked serpentine belts in Toyota Corolla and Scion C-HR
• Resolving belt slippage or squealing noises due to tensioner failure
• Addressing accessory drive system malfunctions caused by improper belt tension
• Preventing premature belt wear from misaligned or damaged tensioners
• Maintaining proper operation of alternator, power steering, and air conditioning components

Installation Notes and Tips

When installing the Gates Accessory Belt Drive Kit 90K-39396, ensure the belt is routed correctly according to the vehicle’s belt routing diagram. Verify that the tensioner assembly is securely mounted and functioning properly to maintain correct belt tension. It is recommended to inspect pulleys and other accessory drive components for wear during installation to prevent future issues. Proper installation will help extend the service life of the belt and tensioner.

Quality Assurance and Warranty

Gates manufactures the Accessory Belt Drive Kit 90K-39396 to meet strict quality standards, ensuring durability and reliable performance. The components are engineered to OEM specifications for fit and function. While specific warranty details are not provided here, Gates typically offers coverage against defects in materials and workmanship. For warranty information, consult the product documentation or Gates directly.
