Gates 9530HD Accessory Drive Belt

Overview of Gates High Capacity V-Belt 9530HD

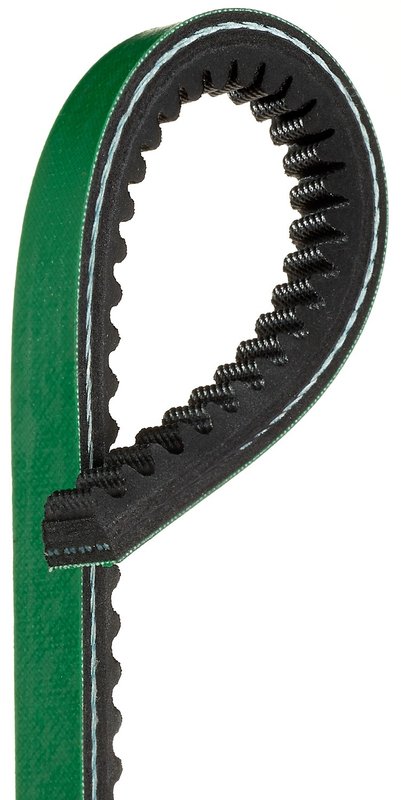

The Gates High Capacity V-Belt (Heavy-Duty) 9530HD is engineered for reliable accessory drive performance in a range of trucks and SUVs. Designed with durable materials and precise construction, this belt supports heavy-duty applications in vehicles like the Chevrolet C2500 and Ford F-150.

• Top width: 13 mm (0.51 inches)
• Effective length: 1347 mm (53.05 inches)
• Outside circumference: 1357 mm (53.43 inches)
• Notched construction for improved flexibility and heat dissipation
• Cord material: Polyester (Hc50 section)
• Belt material: EPDM for enhanced durability
• Single strand design with a 38-degree angle

Product Line Details: High Capacity V-Belt (Heavy-Duty)

The High Capacity V-Belt (Heavy-Duty) line by Gates is designed to meet the demands of vehicles requiring robust accessory drive belts. This product line features belts constructed with EPDM material and notched designs to provide better heat resistance and flexibility under heavy loads. The 9530HD part number belongs to this line, ensuring compatibility with heavy-duty trucks and SUVs such as the GMC K3500 and Jeep Wagoneer.

Technical Description and Features

The Gates 9530HD accessory drive belt is a notched, single-strand V-belt with a top width of 13 mm and an effective length of 1347 mm. Its polyester cord material (Hc50 section) offers strength and resistance to stretching, while the EPDM belt material provides durability against heat and wear. The notched construction improves belt flexibility and reduces heat buildup, which is critical for maintaining performance in heavy-duty applications. The 38-degree angle design ensures proper seating in pulleys, contributing to efficient power transmission.

Compatible Vehicles and Applications

• Chevrolet: C2500, C3500
• Ford: Bronco, F-100, F-150, F-200, F-250, F-350
• GMC: K2500, K3500, J10, J20
• Jeep: Cherokee, CJ5, Wagoneer
• Ford Econoline series: E-100, E-150, E-250, E-350 (including Club Wagon variants)

Common Issues Addressed by Gates 9530HD Belt

• Wear and cracking from heat exposure in heavy-duty use
• Loss of tension or stretching causing accessory slippage
• Reduced flexibility leading to premature belt failure
• Incompatibility with high load accessory drive systems
• Noise and vibration from worn or damaged belts

Installation Notes and Tips

Ensure the accessory pulleys are clean and free of debris before installing the Gates 9530HD belt. Proper tensioning is critical; refer to the vehicle manufacturer’s specifications for correct belt tension. The notched design allows for easier bending around pulleys, but avoid twisting the belt during installation. Inspect related components such as tensioners and pulleys for wear to prevent premature belt failure.

Quality Assurance and Warranty

Gates manufactures the 9530HD belt to meet stringent quality standards for heavy-duty accessory drive applications. The use of EPDM material and polyester cords ensures durability and resistance to environmental factors. While specific warranty details may vary, Gates typically offers coverage against manufacturing defects. Consult product documentation or authorized distributors for warranty information.
