Gates CHK104 Engine Timing Chain Kit

Gates CHK104 Timing Chain Kit Overview

The Gates CHK104 timing chain kit is built for engine timing service on select Ford and Lincoln applications, including Ford E-350 Super Duty, F-150, Expedition, and Navigator models. It uses steel chain construction with silent chain design to support accurate valve timing and consistent operation in high-mileage engine repairs.

Gates Timing Chain Component Kits are part of the brand’s timing drive systems line, bringing OE-style fit and function to replacement service. This CHK104 kit is engineered to meet or exceed OE standards in fit, performance, and application coverage for the listed vehicles.

Key Features

• Steel timing chain construction with silent chain type
• Steel camshaft sprocket material for durability
• Chain guides included for timing system service
• Tensioner included for proper chain control
• Drive sprocket included for a complete timing repair
• Chain pitch: 9.525 mm
• Chain width: 13 mm (.5 in.)
• Chain material: steel

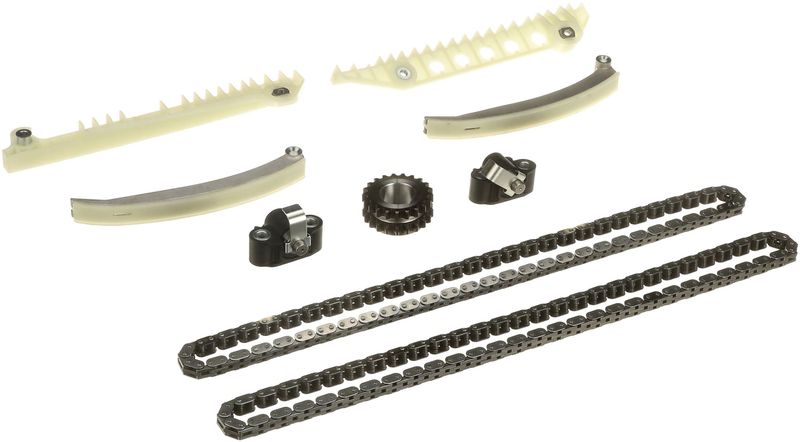

• Contents: timing chains, tensioners, guides, and sprocket

Detailed Description

Gates CHK104 is an engine timing chain kit for Ford and Lincoln trucks, vans, and SUVs that require a timing chain component replacement without VVT sprockets. It is a direct-fit timing service solution for applications such as the Ford E-150, E-250, E-350 Super Duty, F-150, F-250 Super Duty, F-350 Super Duty, Expedition, Excursion, Econoline, and Lincoln Navigator. This part number, CHK104, is also cross-referenced by Cloyes 9-0391SB and Dayco KTC1335 for the same application.

Built around steel chain and sprocket components, the kit is intended to restore timing system integrity where chain stretch, guide wear, or tensioner wear has affected engine operation. The silent chain design supports smooth timing drive operation, while the included guides and tensioner help complete the repair with matched components.

What It Helps Fix

• Timing chain noise from worn chain or guides
• Engine timing drift caused by chain stretch
• Rattle at startup related to tensioner wear
• Check engine concerns tied to timing correlation issues
• Rough running caused by worn timing drive components

Installation Notes and Tips

Compatible With 2002-2016 Ford E-350 Super Duty, 2002-2014 Ford E-150, 2003-2014 Ford E-250, 2010-2014 Ford Econoline Wagon, 2002-2014 Ford Expedition, 2005-2014 Lincoln Navigator, 2002-2010 Ford F-150, 2002-2010 Ford F-250 Super Duty, 2002-2010 Ford F-350 Super Duty, 2002-2009 Ford F-350, 2006-2008 Lincoln Mark LT, and related listed Ford Econoline applications. Verify engine configuration and confirm the vehicle does not require VVT sprockets before installation. Inspect related timing components and follow factory timing procedures during service.

Quality Assurance

Gates is a global supplier of timing drive systems in both original equipment and replacement markets. The CHK104 timing chain component kit is produced to meet or exceed OE standards in function, fit, and performance for the listed Ford and Lincoln applications.
