Gates CHK106A Engine Timing Chain Kit
OE Quality 60-Day Returns
Gates
 Timing Chain Component Kits

Gates CHK106A Engine Timing Chain Kit

Brand Gates CHK106A
10145 Plastic, aluminum, steel
10146 3
Chain Material Steel
Chain Width .32
Chain Width .51
Chain Width 13
Chain Width 8
Camshaft Sprocket Material Steel
Chain Guides Included Yes
Tensioner Included Yes
Drive Sprocket Included Yes
9824 No
Chain Pitch (mm) 9.525
Chain Type Roller, silent

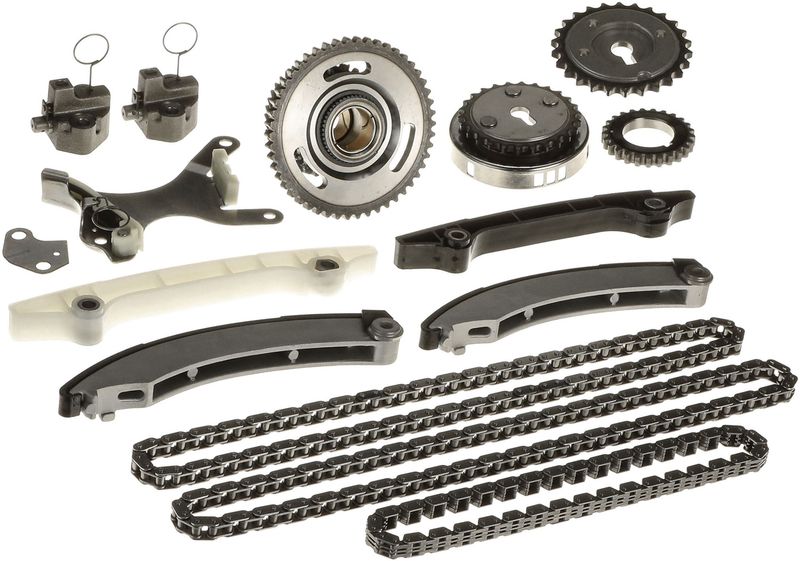

Contents 3 timing chains, 3 tensioners, 4 guides, 4 sprockets
Pin Quantity 94
Product line Timing Chain Component Kits
Fits Dodge, Jeep, and Ram · 51 vehicles

OE-standard fit. Built to meet or exceed OE expectations for function, fit, and performance.

Complete timing service. Includes chains, tensioners, guides, and sprockets for coordinated replacement.

Steel chain design. Uses steel chain and sprocket materials for timing drive durability.

Cross-references Cloyes 9-0393SB and Dayco KTC1402 for the same application. See all 2.

$353.61Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $353.61
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Chain Kit options

Timing Chain Kit Overview

Gates CHK106A is an engine timing chain kit built around steel chain construction and OE-level fit and function. It is a fitment-based replacement for select Jeep, Dodge, and Ram applications that use timing chain component kits with VVT and primary sprockets.

Fits 2002-2012 Jeep Liberty, N/A. Fits 2004-2011 Dodge Dakota, N/A. Fits 2007-2011 Dodge Nitro, N/A. Fits 2011 Ram Dakota, N/A. Fits 2002-2010 Dodge Ram 1500, N/A. Fits 2006-2010 Jeep Commander, N/A. Fits 2005-2010 Jeep Grand Cherokee, N/A. Fits 2004-2009 Dodge Durango, N/A.

Key Features

  • Steel timing chain construction for durable valve train operation.
  • Includes chain guides, tensioners, and drive sprockets for a complete timing drive service.
  • Roller and silent chain types are used to match the application requirements.
  • Built to meet or exceed OE standards in function, fit, and performance.
  • Gates Timing Chain Component Kits are backed by timing drive system experience from an OE and aftermarket supplier.

Detailed Description

Gates CHK106A is part of the Timing Chain Component Kits line, a product family focused on timing drive service parts for engines that require coordinated chain, guide, tensioner, and sprocket replacement. This kit uses steel chain material, steel camshaft sprockets, and application-specific components to restore timing system operation in compatible Jeep Liberty, Dodge Dakota, Dodge Nitro, Ram Dakota, Dodge Ram 1500, Jeep Commander, Jeep Grand Cherokee, and Dodge Durango applications. This part cross-references Cloyes 9-0393SB and Dayco KTC1402 for the same application.

The CHK106A part number is a direct reference for buyers searching for a Gates timing chain kit with OE-style coverage. Gates CHK106A is engineered for engines that need a timing chain service kit rather than a single replacement component.

What It Is Used For

  • Restoring correct camshaft and crankshaft timing after chain wear.
  • Replacing noisy or stretched timing chain components.
  • Addressing worn guides, tensioners, or sprockets during timing service.
  • Servicing engines with VVT and primary sprocket requirements.
  • Correcting timing-related drivability or synchronization issues.

Installation Notes and Tips

Verify engine code and timing system configuration before ordering, since this kit is application-specific. Confirm that the vehicle uses the listed timing chain component kit arrangement with VVT sprockets and primary sprockets. Follow factory service procedures for timing alignment, chain indexing, and tensioner setup during installation.

Quality Assurance

Gates builds timing drive products from experience in both original equipment and replacement markets, and this kit is stated to meet or exceed OE standards in function, fit, and performance.

Related reading

This part fits 51 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersFuel TypeNotes
2012JeepLiberty3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2011DodgeDakota3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2011DodgeNitro3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2011JeepLiberty3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2011RamDakota3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2010DodgeDakota3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2010DodgeNitro3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2010DodgeRam 15003.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2010JeepCommander3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2010JeepGrand Cherokee3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2010JeepLiberty3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2009DodgeDakota3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2009DodgeDurango3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2009DodgeNitro3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2009DodgeRam 15003.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2009JeepCommander3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2009JeepGrand Cherokee3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2009JeepLiberty3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2008DodgeDakota3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2008DodgeDurango3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2008DodgeNitro3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2008DodgeRam 15003.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2008JeepCommander3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2008JeepGrand Cherokee3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2008JeepLiberty3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2007DodgeDakota3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2007DodgeDurango3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2007DodgeNitro3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2007DodgeRam 15003.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2007JeepCommander3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2007JeepGrand Cherokee3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2007JeepLiberty3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2006DodgeDakota3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2006DodgeDurango3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2006DodgeRam 15003.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2006JeepCommander3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2006JeepGrand Cherokee3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2006JeepLiberty3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2005DodgeDakota3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2005DodgeDurango3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2005DodgeRam 15003.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2005JeepGrand Cherokee3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2005JeepLiberty3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2004DodgeDakota3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2004DodgeDurango3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2004DodgeRam 15003.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2004JeepLiberty3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2003DodgeRam 15003.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2003JeepLiberty3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2002DodgeRam 15003.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
2002JeepLiberty3.7LV6GASIncludes VVT Sprockets & Primary Sprockets; Timing Chain Component Kits
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cloyes — 9-0393SBDayco — KTC1402
