Gates CHK114A Engine Timing Chain Kit
OE Quality 60-Day Returns
Gates
 Timing Chain Component Kits

Gates CHK114A Engine Timing Chain Kit

Brand Gates CHK114A
10145 Plastic, aluminum
10146 3
Chain Material Steel
Chain Width .48
Chain Width .6
Chain Width 12
Chain Width 15
Camshaft Sprocket Material Steel
Chain Guides Included Yes
Tensioner Included Yes
Drive Sprocket Included Yes
9824 Yes
Chain Pitch (mm) 6.35
Chain Type Silent

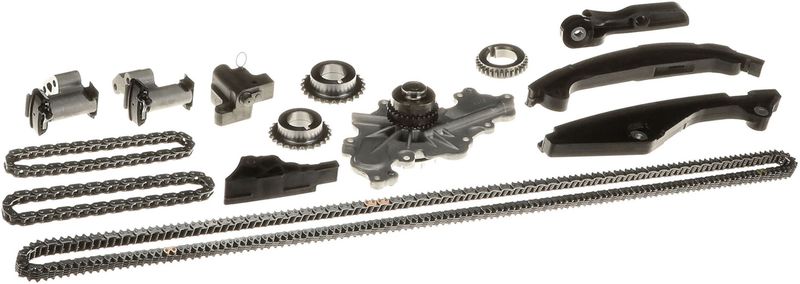

Contents 3 timing chains, 3 tensioners, 4 guides, 3 sprockets, water pump
Pin Quantity 254
Product line Timing Chain Component Kits
Fits Ford and Lincoln · 34 vehicles

OE-standard fit. Built to meet or exceed original equipment expectations for function and performance.

Silent chain design. Steel chain construction helps deliver smooth timing drive operation.

Complete service kit. Includes guides, tensioners, sprockets, and water pump for timing work.

$259.48Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $259.48
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Chain Kit options

Timing Chain Kit Overview

Gates CHK114A is a timing chain component kit for select Ford and Lincoln applications. It is built around steel chain construction and silent chain design, with included guides, tensioners, and sprockets for a complete timing drive service.

Key Features

  • Silent steel timing chain design for controlled valve timing operation.
  • Includes chain guides, tensioners, and drive sprockets for a full timing drive refresh.
  • Water pump included in the kit contents.
  • Engineered to meet or exceed OE standards in function, fit, and performance.
  • Fits Ford Explorer, Ford Flex, Ford Taurus, Lincoln MKS, and Lincoln MKT applications.

Detailed Description

This Gates timing chain component kit is intended for engines that require replacement of timing drive wear items together. The CHK114A combines steel chain construction with a silent chain profile and matching components to restore proper timing system operation. It is a practical choice for Ford Explorer, Ford Flex, Ford Taurus, Lincoln MKS, and Lincoln MKT service work where the timing drive, sprockets, guides, and tensioners are addressed at the same time. The CHK114A part number is also useful when verifying the correct timing chain kit before teardown or reassembly.

What It Helps Address

  • Timing chain noise from worn chain or guide surfaces.
  • Incorrect cam timing caused by stretched or fatigued timing components.
  • Rattle or slack in the timing drive from aging tensioners.
  • Wear in related sprockets that can affect timing stability.
  • Cooling-system service overlap when the water pump is being replaced during timing work.

Installation Notes and Tips

Confirm engine application and timing component layout before ordering. This kit is for specific Ford and Lincoln fitments only, and the CHK114A should be matched to the vehicle’s engine configuration and service requirements. Follow factory timing procedures, mark component positions carefully, and verify chain alignment during assembly.

Quality Assurance

Gates is a global supplier of timing drive systems in both original equipment and replacement markets. The CHK114A timing chain kit is built to meet or exceed OE standards in function, fit, and performance.

Related reading

This part fits 34 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersFuel TypeNotes
2017FordExplorer3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2017FordPolice Interceptor Utility3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2016FordExplorer3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2016FordFlex3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2016FordPolice Interceptor Sedan3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2016FordPolice Interceptor Utility3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2016FordTaurus3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2016LincolnMKS3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2016LincolnMKT3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2015FordExplorer3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2015FordFlex3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2015FordPolice Interceptor Sedan3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2015FordPolice Interceptor Utility3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2015FordTaurus3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2015LincolnMKS3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2015LincolnMKT3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2014FordExplorer3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2014FordFlex3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2014FordPolice Interceptor Sedan3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2014FordTaurus3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2014LincolnMKS3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2014LincolnMKT3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2013FordExplorer3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2013FordFlex3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2013FordPolice Interceptor Sedan3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2013FordTaurus3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2013LincolnMKS3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2013LincolnMKT3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2012FordFlex3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2012FordTaurus3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2012LincolnMKS3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2011FordFlex3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2011FordTaurus3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
2011LincolnMKS3.5LV6GASIncludes Primary Sprockets, W.P.; Timing Chain Component Kits
