Gates CHK133 Engine Timing Chain Kit

Gates CHK133 Timing Chain Kit Overview

The Gates CHK133 timing chain component kit is built for engine timing service on a wide range of GM and Saab applications. It combines a steel roller timing chain with matched guides, tensioner, sprocket, and oil squirter components to restore proper valve timing and chain control.

Gates Timing Chain Component Kits are part of the brand’s timing drive systems line, bringing OE-style fit, function, and performance standards to replacement service for vehicles such as the Chevrolet Malibu, Buick Regal, and Saturn Vue.

Key Features

• Steel roller timing chain with 8 mm pitch and 148 pins
• Chain width: 10 mm
• Steel camshaft sprocket material
• Chain guides included for complete timing service
• Tensioner included to maintain chain control
• Drive sprocket included

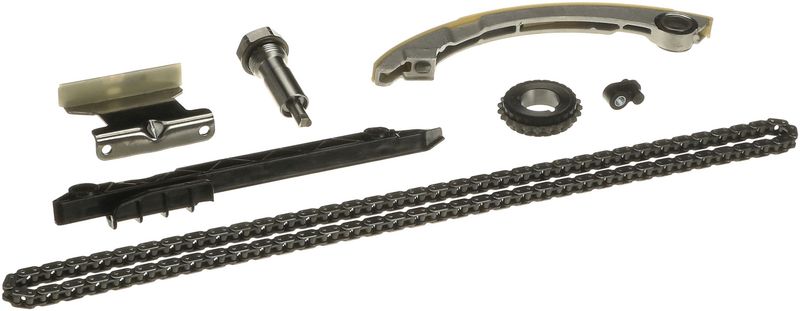

• Contents include timing chain, tensioner, 3 guides, sprocket, and oil squirter
• Built to meet or exceed OE standards in function, fit, and performance

Detailed Description

Gates CHK133 is an engine timing chain kit for interference-engine applications that require precise camshaft and crankshaft synchronization. The steel roller chain, guide set, tensioner, and sprocket are selected to support stable timing operation across compatible Buick, Chevrolet, Pontiac, Saturn, and Saab platforms. This part cross-references Cloyes 9-4201SA for the same application.

Compatible With 2011-2017 Buick Regal, N/A; 2012-2017 Buick Verano, N/A; 2010-2017 Chevrolet Equinox, N/A; 2010-2017 GMC Terrain, N/A; 2011-2016 Buick LaCrosse, N/A; 2013-2015 Chevrolet Captiva Sport, N/A; 2014 Chevrolet Impala, N/A; 2013-2014 Chevrolet Malibu, N/A; 2012 Chevrolet Captiva Sport, N/A; 2009-2012 Chevrolet Malibu, N/A; 2008-2011 Chevrolet HHR, N/A; 2003-2011 Saab 9-3, N/A; 2010-2011 Saab 9-3X, N/A; 2011 Saab 9-5, N/A; 2010 Buick LaCrosse, N/A; 2008-2010 Chevrolet Cobalt, N/A; 2009-2010 Pontiac G5, N/A; 2006-2010 Pontiac G6, N/A; 2007-2010 Saturn Sky, N/A; 2008-2010 Saturn Vue, N/A; 2007-2009 Pontiac Solstice, N/A; 2007-2009 Saturn Aura, N/A; 2004-2008 Chevrolet Malibu, N/A; 2007-2008 Pontiac G5, N/A; 2005-2007 Chevrolet Cobalt, N/A; 2006-2007 Chevrolet HHR, N/A; 2003-2007 Saturn Ion, N/A; 2002-2007 Saturn Vue, N/A; 2005-2006 Pontiac Pursuit, N/A; 2006 Pontiac Solstice, N/A; 2002-2005 Chevrolet Cavalier, N/A; 2004-2005 Chevrolet Classic, N/A; 2002-2005 Pontiac Grand Am, N/A; 2002-2005 Pontiac Sunfire, N/A; 2002-2004 Oldsmobile Alero, N/A; 2004 Saturn L300, N/A; 2001-2003 Saturn L200, N/A; 2001-2003 Saturn LW200, N/A; 2001-2002 Chevrolet Astra, N/A; 2001-2002 Saturn L100, N/A; 2000 Saturn LS, N/A; 2000 Saturn LS1, N/A; 2000 Saturn LW1, N/A.

Common Problems This Kit Can Address

• Excessive timing chain noise or rattling
• Worn or stretched chain affecting cam timing
• Damaged guides or tensioner wear
• Timing correlation faults from chain control issues
• Service needs on interference engines with timing wear

Installation Notes and Tips

Verify engine code and VVT configuration before ordering, since several listed applications exclude VVT sprockets and some also exclude water pump sprockets. Confirm the vehicle’s year, make, model, and engine setup against the fitment notes for the Chevrolet Malibu, Buick Regal, and Saturn Vue applications. Follow factory timing procedures, align all timing marks carefully, and inspect related seals and wear surfaces during service.

Quality Assurance

Gates builds timing drive components from its experience in original equipment and replacement markets, with this kit engineered to meet or exceed OE standards in fit, function, and performance. The CHK133 is a direct-fit timing chain component solution for confirmed applications.
