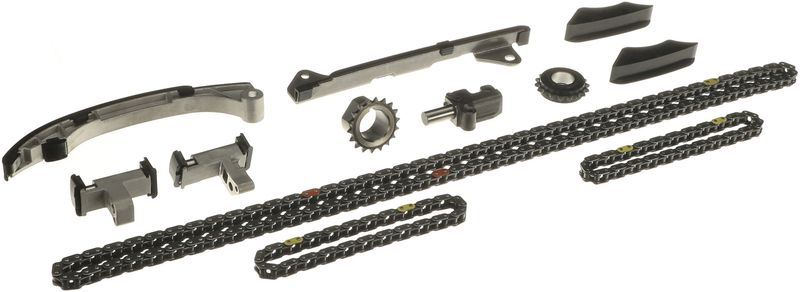

Gates CHK141 Engine Timing Chain Kit

Gates CHK141 Timing Chain Kit Overview

The Gates CHK141 timing chain component kit is built for engine timing service on select Toyota and Lexus applications. It combines steel chain construction with matched guides, tensioners, and sprockets to support accurate valve timing in interference-engine setups.

Gates Timing Chain Component Kits are part of the Gates timing drive systems line, which draws on original equipment and aftermarket experience to deliver OE-level function, fit, and performance for timing service work.

Key Features

• Steel roller timing chain construction
• Chain width: 12 mm (.47 in.)
• Chain pitch: 9.525 mm
• Steel camshaft sprocket material
• Chain guides included
• Tensioner included
• Drive sprocket included
• Contents: timing chains, tensioners, guides, and sprockets
• Direct replacement timing chain component kit for select Toyota and Lexus engines

Detailed Description

Gates CHK141 is an engine timing chain kit designed for service on select Toyota Avalon, Camry, Highlander, Sienna, Venza, RAV4, and Lexus ES350, IS250, IS350, GS300, GS350, GS450h, RX350, and RX450h models. It is built around steel chain material and includes the related timing components needed to restore proper chain drive operation in interference-engine applications. The Gates CHK141 timing chain kit is a practical choice when replacing worn timing drive parts on Toyota Camry and Lexus RX350 engines where timing accuracy is critical.

This part cross-references Cloyes 9-4215S and Dayco KTC1383 for the same application.

Vehicle Fitment

• Fits 2005-2016 Toyota Avalon, N/A; interference engine application.
• Fits 2007-2016 Toyota Camry, N/A; interference engine application.
• Fits 2008-2016 Toyota Highlander, N/A; interference engine application.
• Fits 2007-2016 Toyota Sienna, N/A; interference engine application.
• Fits 2009-2016 Toyota Venza, N/A; interference engine application.
• Fits 2006-2012 Toyota RAV4, N/A; interference engine application.
• Fits 2007-2015 Lexus ES350, N/A; interference engine application.
• Fits 2006-2015 Lexus IS250, N/A; interference engine application.
• Fits 2006-2012 Lexus IS350, N/A; interference engine application.
• Fits 2007-2015 Lexus RX350, N/A; interference engine application.
• Fits 2010-2015 Lexus RX450h, N/A; interference engine application.
• Fits 2007-2011 Lexus GS350, N/A; interference engine application.
• Fits 2007-2011 Lexus GS450h, N/A; interference engine application.
• Fits 2006 Lexus GS300, N/A; interference engine application.

Installation Notes and Tips

Confirm engine code and VIN match before ordering, since this kit is listed for multiple Toyota and Lexus platforms. Inspect sprockets, guides, and tensioner surfaces during teardown, and replace any worn timing drive components at the same time to help maintain correct chain alignment and timing stability.

Because these are interference-engine applications, follow factory timing procedures carefully and verify cam/crank timing marks before starting the engine. Use the Gates CHK141 only on the confirmed vehicle and engine combination listed in the fitment data.

Quality Assurance

Gates is a global supplier of timing drive systems for original equipment and replacement markets. This timing chain component kit is engineered to meet or exceed OE standards in function, fit, and performance for the listed Toyota and Lexus applications.
