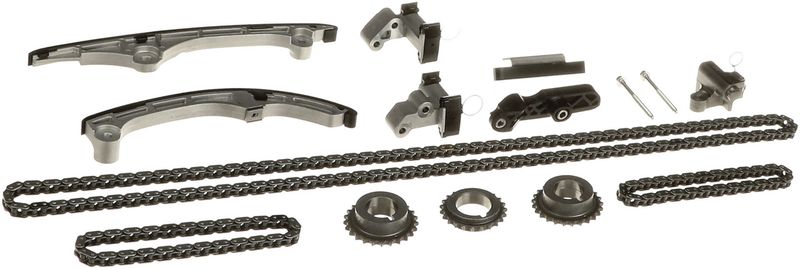

Gates CHK145 Engine Timing Chain Kit
OE Quality 60-Day Returns
Gates
 Timing Chain Component Kits

Gates CHK145 Engine Timing Chain Kit

Brand Gates CHK145
10145 Plastic, aluminum, steel
10146 3
Chain Material Steel
Chain Width .47
Chain Width .48
Chain Width 12
Camshaft Sprocket Material Steel
Chain Guides Included Yes
Tensioner Included Yes
Drive Sprocket Included Yes
9824 No
Chain Pitch (mm) 8
Chain Type Roller
Contents 3 timing chains, 3 tensioners, 4 guides, 3 sprockets
Pin Quantity 202
Product line Timing Chain Component Kits
Fits Ford, Lincoln, Mazda, and Mercury · 36 vehicles

OE-standard design. Built to meet or exceed OE expectations for function, fit, and performance.

Complete timing service. Includes chains, tensioners, guides, and sprockets for a full valve train repair.

Steel chain construction. Roller chain design with steel components for timing drive durability.

Cross-references Cloyes 9-4226S, Dayco KTC1346 and 3-1047S for the same application. See all 5.

$154.72Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $154.72
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Chain Kit options

Timing Chain Kit Overview

The Gates CHK145 timing chain component kit is built for engine timing service where OE-level function, fit, and performance matter. It is a direct-fit timing chain kit for select Ford, Lincoln, Mazda, and Mercury applications, including Ford Edge, Ford Taurus, and Mazda CX-9 coverage.

  • Steel timing chain construction for durable valve train operation.
  • Includes chain guides, tensioners, and drive sprockets for a complete timing service.
  • Roller chain design with an 8 mm pitch.
  • Gates CHK145 is engineered to meet or exceed OE standards in function, fit, and performance.

Fitment Details

Compatible With select 2007-2011 Ford, Lincoln, Mazda, and Mercury applications. Fits 2009-2011 Ford Flex, N/A; Fits 2008-2011 Ford Taurus, N/A; Fits 2009-2011 Lincoln MKS, N/A; Fits 2010-2011 Lincoln MKT, N/A; Fits 2007-2011 Lincoln MKZ, N/A; Fits 2009-2011 Mazda 6, N/A; Fits 2007-2011 Mazda CX-9, N/A; Fits 2007-2010 Ford Edge, N/A; Fits 2010 Ford Fusion, N/A; Fits 2007-2010 Lincoln MKX, N/A; Fits 2008-2009 Mercury Sable, N/A. Fitment notes exclude VVT sprockets where listed.

What This Kit Helps Address

  • Timing chain stretch or wear that affects camshaft and crankshaft synchronization.
  • Noisy chain operation caused by worn guides or tensioners.
  • Timing service needs when sprockets and guides show wear.
  • Engine timing faults related to aging chain drive components.

Installation Notes

Verify engine code and timing system configuration before installation. This CHK145 application excludes VVT sprockets on the listed Ford, Lincoln, and Mercury fitments. Follow factory timing procedures and inspect related valve train components during service.

Quality Assurance

Gates is a global supplier of timing drive systems in both original equipment and replacement markets. The CHK145 timing chain component kit is built to meet or exceed OE standards in function, fit, and performance.

Related reading

This part fits 36 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersFuel TypeNotes
2011FordFlex3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2011FordTaurus3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2011LincolnMKS3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2011LincolnMKT3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2011LincolnMKZ3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2011Mazda63.7LV6GASTiming Chain Component Kits
2011MazdaCX-93.7LV6GASTiming Chain Component Kits
2010FordEdge3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2010FordFlex3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2010FordFusion3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2010FordTaurus3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2010LincolnMKS3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2010LincolnMKT3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2010LincolnMKX3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2010LincolnMKZ3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2010Mazda63.7LV6GASTiming Chain Component Kits
2010MazdaCX-93.7LV6GASTiming Chain Component Kits
2009FordEdge3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2009FordFlex3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2009FordTaurus3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2009LincolnMKS3.7LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2009LincolnMKX3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2009LincolnMKZ3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2009Mazda63.7LV6GASTiming Chain Component Kits
2009MazdaCX-93.7LV6GASTiming Chain Component Kits
2009MercurySable3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2008FordEdge3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2008FordTaurus3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2008LincolnMKX3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2008LincolnMKZ3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2008MazdaCX-93.7LV6GASTiming Chain Component Kits
2008MercurySable3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2007FordEdge3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2007LincolnMKX3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2007LincolnMKZ3.5LV6GASExcludes VVT Sprockets; Timing Chain Component Kits
2007MazdaCX-93.5LV6GASTiming Chain Component Kits
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cloyes — 9-4226SDayco — KTC13463-1047S94226SXKTC1384
