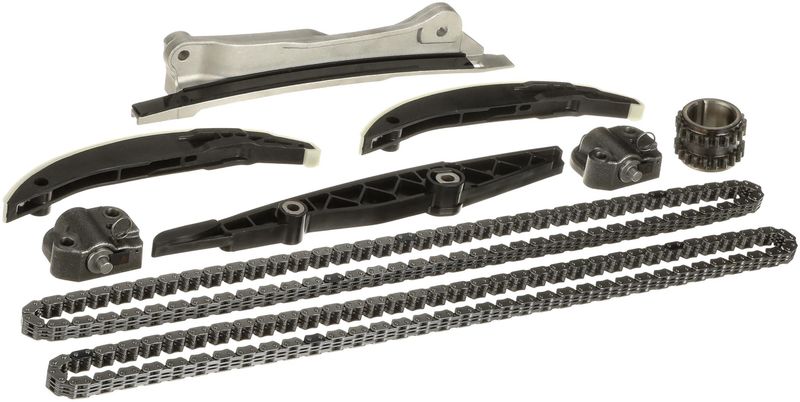

Gates CHK150 Engine Timing Chain Kit

Overview

Gates CHK150 is an engine timing chain kit built for timing drive service on select Ford and Mercury applications. It combines OE-style function with the component coverage needed for a complete timing chain repair.

Key Features

• Steel timing chain construction with a silent chain design for smooth operation.
• Includes chain guides, tensioner, and drive sprocket for a more complete timing service.
• Camshaft sprocket material is steel for durability in the valve train system.
• Built to meet or exceed OE standards in function, fit, and performance.
• Gates CHK150 supports timing chain service on Ford Escape, Ford Fusion, Mercury Mariner, and Mercury Milan applications.

Detailed Description

The Gates Timing Chain Component Kits line draws on the company’s experience in original equipment and replacement timing drive systems. CHK150 is engineered as a timing chain component kit with steel chain material, a silent chain profile, and included guides and tensioner components to restore timing drive operation. This kit is a direct fit for select 2009-2012 Ford Escape, 2010-2012 Ford Fusion, 2009-2011 Mercury Mariner, and 2009-2011 Mercury Milan applications. If you are servicing a Ford Escape or Ford Fusion timing drive, Gates CHK150 provides the core components needed for the repair.

Common Repair Issues

• Rattling or chain noise from worn timing components.
• Timing variation caused by stretched chain wear.
• Loss of tension from a failing tensioner.
• Guide wear that affects chain tracking and valve timing stability.
• Drive sprocket wear in the timing system.

Installation Notes

Verify engine code, timing drive configuration, and application notes before installation. Inspect related valve train components, sprockets, and sealing surfaces during service. Follow factory timing procedures and torque specifications to maintain correct camshaft and crankshaft synchronization.

Quality Assurance

Gates is a global leader in timing drive systems for OE and aftermarket use, and CHK150 is built to meet or exceed OE standards in function, fit, and performance.
