Gates CHK151 Engine Timing Chain Kit

Gates CHK151 Timing Chain Kit Overview

The Gates CHK151 timing chain component kit is built for engine timing service on a wide range of GM vehicles, including Chevrolet Malibu, Equinox, HHR, Cobalt, and GMC Terrain applications. It is a timing chain kit for interference-engine and balance-shaft applications where accurate valve timing and durable chain drive components matter.

Gates Timing Chain Component Kits are part of the brand’s timing drive systems lineup, drawing on OE and aftermarket experience to deliver function, fit, and performance that meet or exceed original equipment standards.

Key Features

• Steel timing chain construction for durability in engine timing service
• Chain width: .38 in. / 10 mm
• Bush-type chain design with non-standard pitch
• Steel camshaft sprocket material

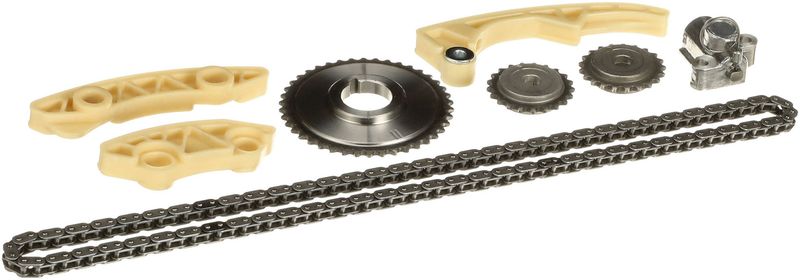

• Includes timing chain, tensioner, 3 guides, and 3 sprockets
• Chain guides included, tensioner included, and drive sprocket included
• Fits balance shaft and interference engine applications
• Part number CHK151 for catalog and fitment lookup

Detailed Description

The Gates CHK151 engine timing chain kit is engineered for vehicles that rely on precise camshaft and balance shaft synchronization. With a steel chain, steel sprockets, and included guides and tensioner, this kit supports timing system restoration on applications such as 2004-2014 Chevrolet Malibu, 2010-2017 Chevrolet Equinox, 2010-2017 GMC Terrain, and 2002-2010 Saturn Vue. It is also listed for Buick Regal, Buick Verano, Chevrolet HHR, Chevrolet Cobalt, Pontiac G6, Saturn Aura, and related GM models. This part cross-references Cloyes 9-4202S and Dayco KTC1340 for the same application.

What This Timing Chain Kit Helps Address

• Timing chain stretch or wear that can affect cam timing
• Noisy chain drive operation from worn guides or tensioner components
• Timing correlation issues caused by aging sprockets
• Balance shaft timing service on listed GM engines
• Engine timing repair on interference-engine applications

Installation Notes and Tips

Verify engine code, timing marks, and VIN-specific fitment before installation. Because this kit is used on interference-engine applications, follow factory timing procedures carefully and rotate the engine by hand after assembly to confirm correct alignment. Replace related wear components only after inspecting the full timing drive system and ensure all guides, sprockets, and the tensioner are seated to specification.

Quality Assurance

Gates is recognized for timing drive systems in both original equipment and replacement markets. The CHK151 timing chain component kit is built to meet or exceed OE standards in function, fit, and performance for the listed applications.

Compatible Vehicles

• Fits 2011-2017 Buick Regal, N/A
• Fits 2012-2017 Buick Verano, N/A
• Fits 2010-2017 Chevrolet Equinox, N/A
• Fits 2010-2017 GMC Terrain, N/A
• Fits 2010-2016 Buick LaCrosse, N/A
• Fits 2012-2015 Chevrolet Captiva Sport, N/A
• Fits 2014 Chevrolet Impala, N/A
• Fits 2004-2014 Chevrolet Malibu, N/A
• Fits 2006-2011 Chevrolet HHR, N/A
• Fits 2005-2010 Chevrolet Cobalt, N/A
• Fits 2007-2010 Pontiac G5, N/A
• Fits 2006-2010 Pontiac G6, N/A
• Fits 2007-2010 Saturn Sky, N/A
• Fits 2002-2010 Saturn Vue, N/A
• Fits 2006-2009 Pontiac Solstice, N/A
• Fits 2007-2009 Saturn Aura, N/A
• Fits 2003-2007 Saturn Ion, N/A
• Fits 2005-2006 Pontiac Pursuit, N/A
• Fits 2002-2005 Chevrolet Cavalier, N/A
• Fits 2004-2005 Chevrolet Classic, N/A
• Fits 2002-2005 Pontiac Grand Am, N/A
• Fits 2002-2005 Pontiac Sunfire, N/A
• Fits 2002-2004 Oldsmobile Alero, N/A
• Fits 2004 Saturn L300, N/A
• Fits 2001-2003 Saturn L200, N/A
• Fits 2001-2003 Saturn LW200, N/A
• Fits 2001-2002 Saturn L100, N/A
• Fits 2000 Saturn LS, N/A
• Fits 2000 Saturn LS1, N/A
• Fits 2000 Saturn LW1, N/A
