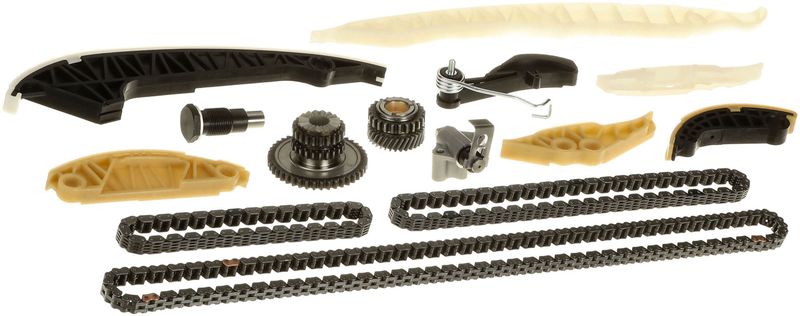

Gates CHK154 Engine Timing Chain Kit

Brand	Gates CHK154
10145	Plastic
10146	3
Chain Material	Steel
Chain Width	.49
Chain Width	12
Camshaft Sprocket Material	Steel
Chain Guides Included	Yes
Tensioner Included	Yes
Drive Sprocket Included	Yes
9824	No
Chain Pitch (mm)	6.35
Chain Type	Silent
Contents	3 timing chains, 3 tensioners, 6 guides, 2 sprockets
Pin Quantity	170
Product line	Timing Chain Component Kits
Fits	Audi and Volkswagen · 56 vehicles

OE-standard design. Built to meet or exceed OE expectations for function, fit, and performance.

Complete timing service. Includes chains, tensioners, guides, and sprockets for a full timing drive repair.

Silent chain construction. Steel chain design with plastic guides for controlled timing drive operation.

Cross-references Cloyes 9-0739SB and 9-0739SBX for the same application. See all 2.

$170.28Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Engine Timing Chain Kit options

Timing Chain Kit Overview

The Gates CHK154 timing chain component kit is built for direct engine timing service on select Audi and Volkswagen applications. It combines steel chains, steel sprockets, plastic guides, and tensioners to restore proper timing drive operation in one matched package.

Fits 2014-2020 Audi A4, 2014-2020 Audi A4 Quattro, 2016-2020 Audi A6, 2016-2020 Audi A6 Quattro, 2015-2020 Audi Q3, 2015-2020 Audi Q3 Quattro, 2018-2020 Audi A5, 2018-2020 Audi A5 Quattro, 2018-2020 Audi A5 Sportback, 2018-2020 Audi Q5, 2015-2020 Audi S3, 2018 Audi A3, 2018 Audi A3 Quattro, 2017-2018 Audi A4 allroad, 2019-2020 Volkswagen Arteon, 2019-2020 Volkswagen Golf, 2018-2020 Volkswagen GTI, 2018-2019 Volkswagen Golf R, 2020 Volkswagen Jetta.

Key Features

Steel timing chains with a silent chain design for smooth operation.
Plastic chain guides and included tensioners for complete timing drive service.
Steel camshaft sprockets and drive sprockets for durable engagement.
Engine timing chain kit format for consolidated repair planning.
Gates timing drive expertise backed by OE and aftermarket experience.

Detailed Description

Gates CHK154 is a timing chain component kit for engines that require chain, guide, tensioner, and sprocket service together. The kit uses steel chain construction with a 6.35 mm pitch and silent chain design, along with plastic guides and steel sprockets to match the demands of modern timing systems. This part cross-references Cloyes 9-0739SB for the same application.

For Audi A4, Audi Q5, and Volkswagen GTI timing chain service, CHK154 provides the core components needed to address wear in the timing drive assembly. Gates timing chain component kits are engineered to meet or exceed OE standards in function, fit, and performance.

What It Is Used For

Replacing stretched or worn timing chains.
Restoring timing drive tension control.
Addressing noisy chain operation.
Renewing worn guides and sprockets during engine service.
Correcting timing system wear on high-mileage engines.

Installation Notes and Tips

Verify engine code and build date before ordering, especially for 2014 Audi A4 and A4 Quattro applications noted as July 1, 2013 and newer. Follow factory timing procedures, mark component positions carefully, and inspect related seals and wear surfaces during installation. Confirm all timing marks and chain routing before engine start-up.

Quality Assurance

Gates is a global supplier of timing drive systems for original equipment and replacement markets. CHK154 is produced to meet or exceed OE standards in function, fit, and performance.

This part fits 56 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Liters	Cylinders	Fuel Type	Notes
2020	Audi	A5 Quattro	2.0L	L4	GAS	Timing Chain Component Kits
2020	Audi	A5 Sportback	2.0L	L4	GAS	Timing Chain Component Kits
2020	Audi	Q3	2.0L	L4	GAS	Timing Chain Component Kits
2020	Audi	Q5	2.0L	L4	GAS	Timing Chain Component Kits
2020	Audi	S3	2.0L	L4	GAS	Timing Chain Component Kits
2020	Cupra	Leon	2.0L	L4	GAS	Timing Chain Component Kits
2020	Volkswagen	Arteon	2.0L	L4	GAS	Timing Chain Component Kits
2020	Volkswagen	Golf	2.0L	L4	GAS	Timing Chain Component Kits
2020	Volkswagen	GTI	2.0L	L4	GAS	Timing Chain Component Kits
2020	Volkswagen	Jetta	2.0L	L4	GAS	Timing Chain Component Kits
2019	Audi	A5	2.0L	L4	GAS	Timing Chain Component Kits
2019	Audi	A5 Quattro	2.0L	L4	GAS	Timing Chain Component Kits
2019	Audi	A5 Sportback	2.0L	L4	GAS	Timing Chain Component Kits
2019	Audi	Q3	2.0L	L4	GAS	Timing Chain Component Kits
2019	Audi	Q5	2.0L	L4	GAS	Timing Chain Component Kits
2019	Audi	S3	2.0L	L4	GAS	Timing Chain Component Kits
2019	Seat	Leon	2.0L	L4	GAS	Timing Chain Component Kits
2019	Volkswagen	Arteon	2.0L	L4	GAS	Timing Chain Component Kits
2019	Volkswagen	Golf	2.0L	L4	GAS	Timing Chain Component Kits
2019	Volkswagen	Golf R	2.0L	L4	GAS	Timing Chain Component Kits
2019	Volkswagen	GTI	2.0L	L4	GAS	Timing Chain Component Kits
2018	Audi	A3	2.0L	L4	GAS	Timing Chain Component Kits
2018	Audi	A3 Quattro	2.0L	L4	GAS	Timing Chain Component Kits
2018	Audi	A4	2.0L	L4	GAS	Timing Chain Component Kits
2018	Audi	A4 allroad	2.0L	L4	GAS	Timing Chain Component Kits
2018	Audi	A4 Quattro	2.0L	L4	GAS	Timing Chain Component Kits
2018	Audi	A5	2.0L	L4	GAS	Timing Chain Component Kits
2018	Audi	A5 Quattro	2.0L	L4	GAS	Timing Chain Component Kits
2018	Audi	A5 Sportback	2.0L	L4	GAS	Timing Chain Component Kits
2018	Audi	A6	2.0L	L4	GAS	Timing Chain Component Kits
2018	Audi	A6 Quattro	2.0L	L4	GAS	Timing Chain Component Kits
2018	Audi	Q3	2.0L	L4	GAS	Timing Chain Component Kits
2018	Audi	Q3 Quattro	2.0L	L4	GAS	Timing Chain Component Kits
2018	Audi	Q5	2.0L	L4	GAS	Timing Chain Component Kits
2018	Audi	S3	2.0L	L4	GAS	Timing Chain Component Kits
2018	Seat	Leon	2.0L	L4	GAS	Timing Chain Component Kits
2018	Volkswagen	Golf R	2.0L	L4	GAS	Timing Chain Component Kits
2018	Volkswagen	GTI	2.0L	L4	GAS	Timing Chain Component Kits
2017	Audi	A4	2.0L	L4	GAS	Timing Chain Component Kits
2017	Audi	A4 allroad	2.0L	L4	GAS	Timing Chain Component Kits
2017	Audi	A4 Quattro	2.0L	L4	GAS	Timing Chain Component Kits
2017	Audi	A6	2.0L	L4	GAS	Timing Chain Component Kits
2017	Audi	A6 Quattro	2.0L	L4	GAS	Timing Chain Component Kits
2017	Audi	Q3	2.0L	L4	GAS	Timing Chain Component Kits
2017	Audi	Q3 Quattro	2.0L	L4	GAS	Timing Chain Component Kits
2017	Audi	S3	2.0L	L4	GAS	Timing Chain Component Kits
2016	Audi	A6	2.0L	L4	GAS	Timing Chain Component Kits
2016	Audi	A6 Quattro	2.0L	L4	GAS	Timing Chain Component Kits
2016	Audi	Q3	2.0L	L4	GAS	Timing Chain Component Kits
2016	Audi	Q3 Quattro	2.0L	L4	GAS	Timing Chain Component Kits
2016	Audi	S3	2.0L	L4	GAS	Timing Chain Component Kits
2015	Audi	Q3	2.0L	L4	GAS	Timing Chain Component Kits
2015	Audi	Q3 Quattro	2.0L	L4	GAS	Timing Chain Component Kits
2015	Audi	S3	2.0L	L4	GAS	Timing Chain Component Kits
2014	Audi	A4	2.0L	L4	GAS	Jul. 1, 2013 & Newer; Timing Chain Component Kits
2014	Audi	A4 Quattro	2.0L	L4	FLEX	Jul. 1, 2013 & Newer; Timing Chain Component Kits
No rows match your filter.

Directly replaces or cross-references 2 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Cloyes — 9-0739SB9-0739SBX
