Gates

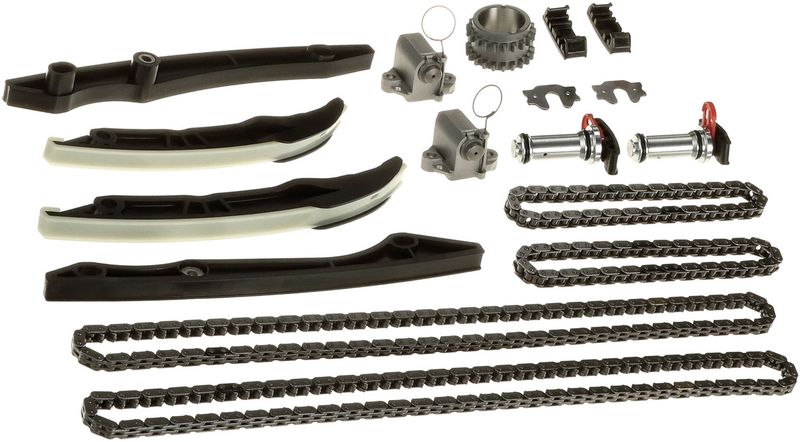

Timing Chain Component KitsGates CHK156 Engine Timing Chain Kit
| Brand | Gates CHK156 |
|---|---|
| 10145 | Plastic |
| 10146 | 4 |
| Chain Material | Steel |
| Chain Width | .41 |
| Chain Width | .48 |
| Chain Width | 10 |
| Chain Width | 12 |
| Camshaft Sprocket Material | Steel |
| Chain Guides Included | Yes |
| Tensioner Included | Yes |
| Drive Sprocket Included | Yes |
| 9824 | No |
| Chain Pitch (mm) | 8 |
| Chain Type | Silent |
| Contents | 4 timing chains, 4 tensioners, 6 guides, sprocket |
| Pin Quantity | 128 |
| Product line | Timing Chain Component Kits |
| Fits | Ford · 12 vehicles |
Cross-references Cloyes 9-0757S, Cloyes 9-0757SX and INA US ZC-9-0757S for the same application. See all 7.
$206.78Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Chain Kit options
Gates CHK156 Engine Timing Chain Kit
This part fits 12 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Ford | F-150 | 5.0L | V8 | GAS | N/A | Timing Chain Component Kits |
| 2020 | Ford | Mustang | 5.0L | V8 | GAS | N/A | Timing Chain Component Kits |
| 2019 | Ford | F-150 | 5.0L | V8 | GAS | N/A | Timing Chain Component Kits |
| 2019 | Ford | Mustang | 5.0L | V8 | GAS | N/A | Timing Chain Component Kits |
| 2018 | Ford | F-150 | 5.0L | V8 | GAS | N/A | Timing Chain Component Kits |
| 2018 | Ford | Mustang | 5.0L | V8 | GAS | N/A | Timing Chain Component Kits |
| 2017 | Ford | F-150 | 5.0L | V8 | FLEX | N/A | Timing Chain Component Kits |
| 2017 | Ford | Mustang | 5.0L | V8 | GAS | N/A | Timing Chain Component Kits |
| 2016 | Ford | F-150 | 5.0L | V8 | FLEX | N/A | Timing Chain Component Kits |
| 2016 | Ford | Mustang | 5.0L | V8 | GAS | N/A | Timing Chain Component Kits |
| 2015 | Ford | F-150 | 5.0L | V8 | FLEX | N/A | Timing Chain Component Kits |
| 2015 | Ford | Mustang | 5.0L | V8 | GAS | N/A | Timing Chain Component Kits |
| No rows match your filter. | |||||||
Directly replaces or cross-references 7 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cloyes — 9-0757SCloyes — 9-0757SXINA US — ZC-9-0757SINA US — ZC-9-0757SX3-1069S3-1069SAX3-1069SX
