GatesPart #: CHK160

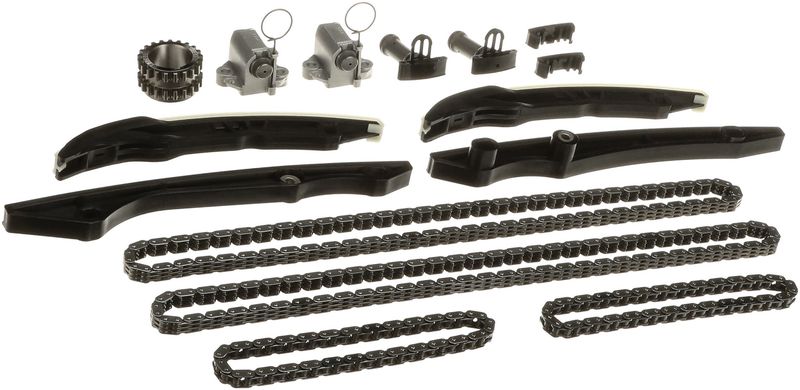

Gates CHK160 Engine Timing Chain Kit
8 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$228.02Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Timing Chain Component Kits
Fitment: Ford, F-150 and Mustang
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Engine Timing Chain Kit options
Gates CHK160 Engine Timing Chain Kit
| Brand | Gates |
|---|---|
| Part Number | CHK160 |
| Position | Timing Chain Component Kits |
| 10145 | Plastic, aluminum |
| 10146 | 4 |
| Chain Material | Steel |
| Chain Width | .48 |
| Chain Width | .49 |
| Chain Width | 12 |
| Chain Width | 13 |
| Camshaft Sprocket Material | Steel |
| Chain Guides Included | Yes |
| Tensioner Included | Yes |
| Drive Sprocket Included | Yes |
| 9824 | No |
| Chain Pitch (mm) | 6.35 |
| Chain Type | Silent |
| Contents | 4 timing chains, 4 tensioners, 6 guides, sprocket |
| Pin Quantity | 150 |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2014 | Ford | F-150 | 5.0L | V8 | FLEX | N/A | Timing Chain Component Kits |
| 2014 | Ford | Mustang | 5.0L | V8 | GAS | N/A | W/O Boss Eng.; Timing Chain Component Kits |
| 2013 | Ford | F-150 | 5.0L | V8 | FLEX | N/A | Timing Chain Component Kits |
| 2013 | Ford | Mustang | 5.0L | V8 | GAS | N/A | W/O Boss Eng.; Timing Chain Component Kits |
| 2012 | Ford | F-150 | 5.0L | V8 | FLEX | N/A | Timing Chain Component Kits |
| 2012 | Ford | Mustang | 5.0L | V8 | GAS | N/A | W/O Boss Eng.; Timing Chain Component Kits |
| 2011 | Ford | F-150 | 5.0L | V8 | FLEX | N/A | Timing Chain Component Kits |
| 2011 | Ford | Mustang | 5.0L | V8 | GAS | N/A | W/O Boss Eng.; Timing Chain Component Kits |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
3-1036S9-0510S90510SXKTC1371
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
