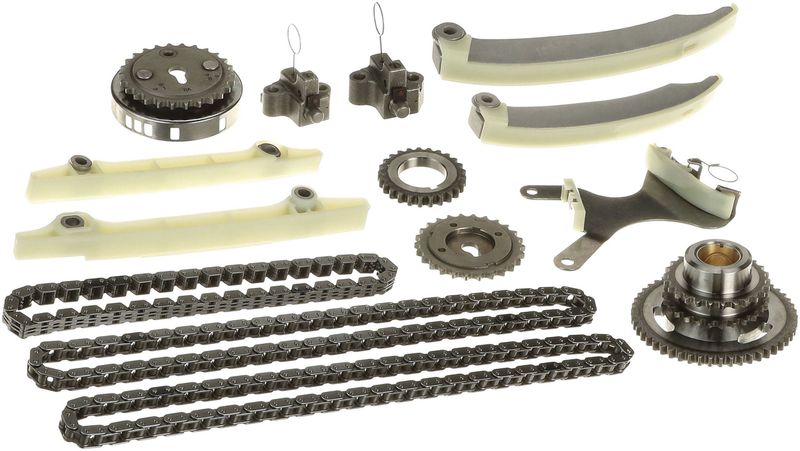

Gates CHK190 Engine Timing Chain Kit

Timing Chain Kit Overview

Gates CHK190 is an engine timing chain kit built for applications that require a complete timing drive service solution. It is a fitment-based replacement for select Ram, Dodge, Chrysler, and Jeep models, including Ram 1500 and Jeep Grand Cherokee applications.

As part of Gates Timing Chain Component Kits, CHK190 is engineered to meet or exceed OE standards for function, fit, and performance. The kit uses steel chain construction with steel camshaft sprockets and includes the core timing drive components needed for a full service.

Key Features

• Steel roller timing chain construction for timing drive durability.
• Chain guides, tensioners, and drive sprockets included in the kit.
• 9.525 mm chain pitch for OE-style timing drive geometry.
• Designed around Gates timing chain component kit specifications.
• Fits select 2007-2013 Ram, Dodge, Chrysler, and Jeep vehicles.

Detailed Description

Gates CHK190 timing chain component kit is built for engines that need coordinated replacement of the chain, guides, tensioners, and sprockets. The steel roller chain design and steel camshaft sprockets support consistent timing drive operation, while the included components help restore proper chain control and synchronization. This part cross-references Cloyes 9-0393SF and 9-0393SFX for the same application.

Compatible With select Ram 1500, Dodge Dakota, Dodge Ram 2500, Chrysler Aspen, Dodge Durango, Jeep Commander, and Jeep Grand Cherokee applications. Use CHK190 when servicing timing drive wear on engines covered by the listed fitment.

What It Is Used For

• Timing chain stretch that affects camshaft and crankshaft synchronization.
• Worn guides that create chain noise or unstable chain tracking.
• Weak tensioners that reduce chain control under engine load.
• Damaged sprockets that interfere with accurate valve timing.
• Timing drive service on high-mileage engines with wear-related noise.

Installation Notes and Tips

Verify engine code, timing drive layout, and fitment notes before installation. Replace related timing components together when wear is present to help restore proper timing system operation. Confirm all sprocket and guide surfaces are clean and aligned during assembly.

Quality Assurance

Gates is a global supplier of timing drive systems in OE and replacement markets, and CHK190 is built to meet or exceed OE standards in function, fit, and performance.
