Gates CHK194 Engine Timing Chain Kit

Overview

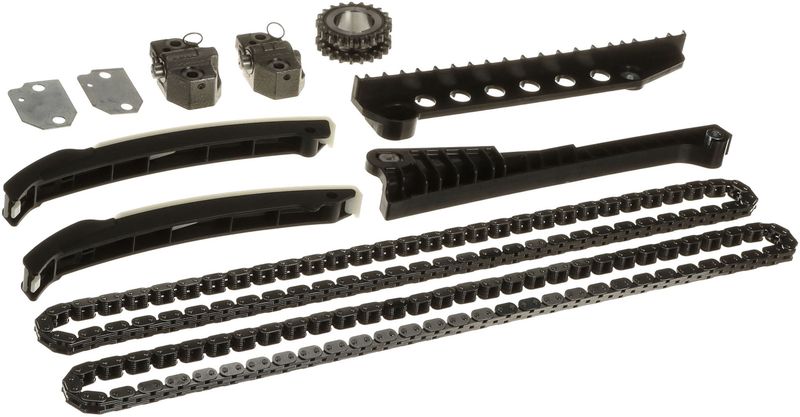

Gates CHK194 is an engine timing chain component kit built for Ford and Lincoln applications that require a complete timing drive service solution. It combines steel chain components with included guides, tensioners, and a drive sprocket to restore timing system function with OE-level fit and performance.

This Gates Timing Chain Component Kit is part of the brand’s timing drive line, backed by Gates’ experience in original equipment and replacement markets. The CHK194 is a direct-fit service option for timing chain repair on select Ford E-Series, F-150, Expedition, and Lincoln Navigator applications.

Key Features

• Steel timing chain construction for durable timing drive operation.
• Silent chain design for smooth, controlled engagement.
• Chain guides, tensioner, and drive sprocket included for a complete timing service.
• Camshaft sprocket material is steel for added strength in the valve train system.
• Built to meet or exceed OE standards in function, fit, and performance.

Detailed Description

The Gates CHK194 timing chain kit is engineered for vehicles that need a precise valve train timing repair. With steel chain material, a 9.525 mm pitch, and a silent chain profile, it is designed to maintain accurate cam timing while reducing chain noise. The included guides and tensioners support proper chain control, while the drive sprocket helps complete the timing drive assembly. This part cross-references Cloyes 9-0391S and 9-0391SX for the same application.

Compatible With Ford E-150 Econoline, Ford E-250 Econoline, Ford E-350 Econoline, Ford Expedition, Ford F-150, Ford F-250, Ford F-350, Lincoln Navigator, and related Ford E-Series applications listed in the fitment data. CHK194 is a practical choice when servicing timing chain wear on Ford truck and van platforms, including Ford E-150 Econoline and Ford F-150 applications.

What It Is Used For

• Correcting timing chain stretch that can affect engine timing accuracy.
• Replacing worn guides or tensioners that create chain noise or instability.
• Restoring valve train synchronization after timing system wear.
• Addressing timing drive service needs on high-mileage Ford and Lincoln engines.
• Repairing a noisy or inconsistent timing chain assembly.

Installation Notes and Tips

Verify engine code, timing drive configuration, and fitment details before installation. Timing chain service requires careful alignment of timing marks and proper tensioner setup to maintain correct engine timing. Inspect related valve train components during service and replace worn parts as needed to avoid repeat repairs.

Quality Assurance

Gates is a global supplier of timing drive systems in both OE and aftermarket channels. CHK194 is manufactured to meet or exceed OE standards in function, fit, and performance.
