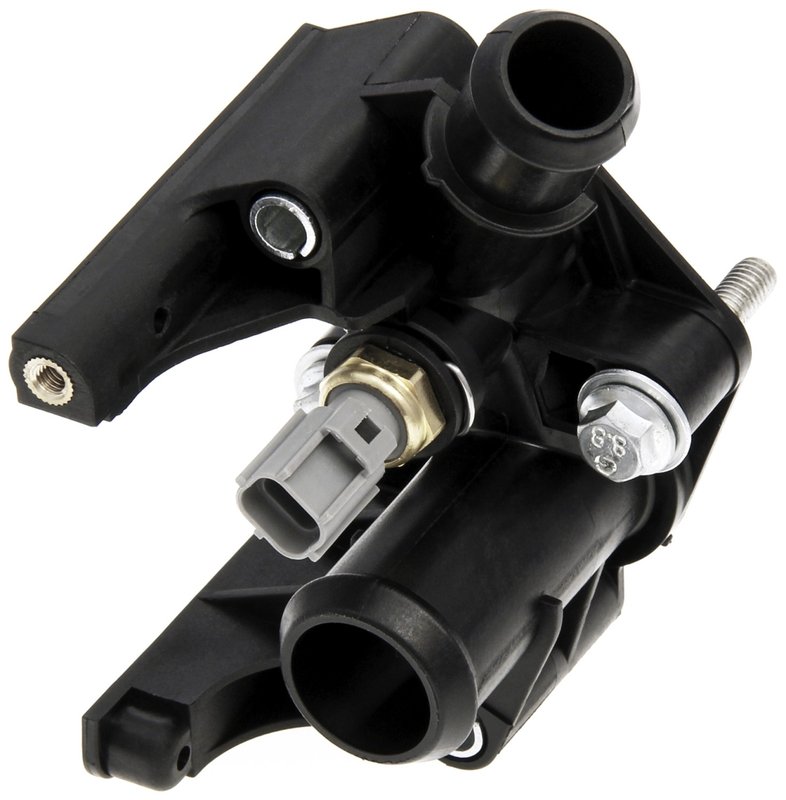

Gates CO34905 Engine Coolant Water Outlet
| Brand | Gates CO34905 |
|---|---|
| 1 | |
| No | |
| Bolt Hole Quantity | 5 |
| By-Pass Holes | No |
| Contents | Coolant Outlet w/ Integrated Seal, Temperature Sensor, 2 Bolts |
| Contents | Coolant Outlet, Integrated Seal, Temperature Sensor, 2 Bolts |
| Gasket Quantity | 0 |
| Material | Plastic |
| Number of Bolt Holes | 5 |
| Number of Gaskets | 0 |
| Number of Seals | 1 |
| OE Exact | Yes |
| Outlet Inside Diameter | .74 |
| Outlet Inside Diameter | 1 |
| Outlet Inside Diameter 1 (in) | 1 |
| Outlet Inside Diameter 2 (in) | .74 |
| Outlet Outside Diameter | .977 |
| Outlet Outside Diameter | 1.3 |
| Outlet Outside Diameter 1 (in) | 1.3 |
| Outlet Outside Diameter 2 (in) | .977 |
| Type | Coolant Outlet |
| Type | Coolant Outlet |
| Product line | Coolant Outlet |
| Fits | Ford · 9 vehicles |
OE exact replacement. Fits and performs like the original for a direct, dependable swap.
Integrated seal included. Comes with a built-in seal, temperature sensor, and bolts.
Plastic construction. A cost-effective coolant outlet with long service life.
Cross-references Dayco 86065, Dorman - OE Solutions 902-230 and Motorad CH2230 for the same application. See all 4.
Gates Coolant Outlet for Ford Fiesta
The Gates Coolant Outlet CO34905 is an OE-exact engine coolant water outlet built for 2011-2019 Ford Fiesta applications. It combines a plastic housing with an integrated seal and temperature sensor mounting provisions to match the original cooling system layout and help maintain proper coolant flow.
Gates Coolant Outlet line coverage is focused on direct-fit replacements that address common aftermarket fit and material concerns. The CO34905 is engineered to fit and perform like the original coolant outlet used on the Ford Fiesta, with the goal of delivering long service life in daily driving conditions.
Key Features
- OE exact coolant outlet replacement for Ford Fiesta cooling system service
- Plastic construction for a direct replacement profile
- Integrated seal design for a cleaner sealing interface
- Includes temperature sensor provision and bolt-hole layout matched to the application
- Outlet dimensions: 1.3 in and .977 in outside diameter; 1 in and .74 in inside diameter
- Five bolt holes for OE-style mounting
- Gates part number CO34905
Detailed Description
Gates CO34905 is an engine coolant water outlet designed for 2011-2019 Ford Fiesta models. This coolant outlet is built as an OE exact replacement, using the correct plastic housing shape, integrated seal, and sensor-related configuration to match the factory cooling connection. For buyers searching for a Ford Fiesta coolant outlet, Ford Fiesta engine coolant water outlet, or Gates CO34905 replacement, this part provides a direct-fit solution for cooling system repair.
This part cross-references Dayco 86065 and Dorman - OE Solutions 902-230 for the same application. The Gates Coolant Outlet product line is intended to provide a practical replacement option for water outlets and thermostat housing-related service where original-style fit and material selection matter.
What It Is Used For
- Replacing a cracked or leaking coolant outlet on a Ford Fiesta
- Restoring a sealed coolant connection at the engine outlet
- Addressing coolant seepage around the outlet housing
- Replacing a worn outlet with damaged mounting points or sealing surfaces
- Servicing a cooling system outlet that no longer holds pressure correctly
Installation Notes and Tips
Fits 2011-2019 Ford Fiesta, N/A. Confirm the outlet diameter, bolt-hole count, and sensor-related configuration against the original part before installation. Clean the mating surfaces thoroughly and inspect adjacent hoses, clamps, and the temperature sensor connection area during service. The integrated seal design helps simplify installation, but the sealing surfaces must be free of debris and old gasket material.
Quality Assurance
Gates designs this coolant outlet as an OE exact replacement with full line coverage for cooling system service. The part is built to match original fit and function for the Ford Fiesta application and to support long service life in normal operation.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Ford | Fiesta | 1.6L | L4 | GAS | N/A | Engine Coolant Hose Flange comes with seal included; Coolant Outlet |
| 2018 | Ford | Fiesta | 1.6L | L4 | GAS | N/A | Engine Coolant Hose Flange comes with seal included; Coolant Outlet |
| 2017 | Ford | Fiesta | 1.6L | L4 | GAS | N/A | Engine Coolant Hose Flange comes with seal included; Coolant Outlet |
| 2016 | Ford | Fiesta | 1.6L | L4 | GAS | N/A | Engine Coolant Hose Flange comes with seal included; Coolant Outlet |
| 2015 | Ford | Fiesta | 1.6L | L4 | GAS | N/A | Engine Coolant Hose Flange comes with seal included; Coolant Outlet |
| 2014 | Ford | Fiesta | 1.6L | L4 | GAS | N/A | Engine Coolant Hose Flange comes with seal included; Coolant Outlet |
| 2013 | Ford | Fiesta | 1.6L | L4 | GAS | N/A | Engine Coolant Hose Flange comes with seal included; Coolant Outlet |
| 2012 | Ford | Fiesta | 1.6L | L4 | GAS | N/A | Engine Coolant Hose Flange comes with seal included; Coolant Outlet |
| 2011 | Ford | Fiesta | 1.6L | L4 | GAS | N/A | Engine Coolant Hose Flange comes with seal included; Coolant Outlet |
