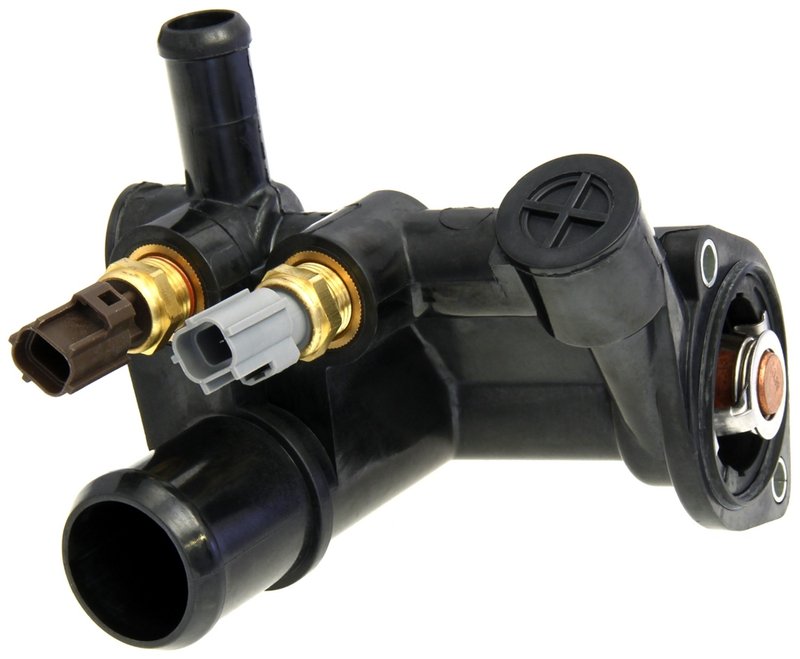

Gates CO34924 Engine Coolant Water Outlet
OE Quality 60-Day Returns
Gates
 Coolant Outlet

Gates CO34924 Engine Coolant Water Outlet

Brand Gates CO34924
1
No
Bolt Hole Quantity 2
By-Pass Holes No
Contents Thermostat Housing, Integrated Seal, 2 Temperature Sensors
Gasket Quantity 0
Material Plastic
Number of Bolt Holes 2
Number of Gaskets 0
Number of Seals 1
OE Exact Yes
Outlet Inside Diameter .55
Outlet Inside Diameter 1.23
Outlet Inside Diameter 1 (in) 1.23
Outlet Inside Diameter 2 (in) .55
Outlet Outside Diameter .74
Outlet Outside Diameter 1.5
Outlet Outside Diameter 1 (in) 1.5
Outlet Outside Diameter 2 (in) .74
Type Thermostat Housing
Type Thermostat Housing
Product line Coolant Outlet
Fits Ford and Mazda · 11 vehicles

OE exact replacement. Fits and performs like the original for a direct swap.

Plastic construction. Helps address common material issues in aftermarket coolant outlets.

Integrated seal included. Comes as a thermostat housing with one seal already built in.

Cross-references Dorman - OE Solutions 902-782, Focus Auto Parts 86111 and Motorad 7111KT for the same application. See all 18.

$136.26Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $136.26
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Coolant Water Outlet options

Gates Coolant Outlet for Ranger and B2500

The Gates Coolant Outlet CO34924 is a thermostat housing assembly built for direct OE-style replacement on select Ford Ranger, Mazda B2500, and Ford F-100 Ranger applications. It is made from plastic and includes an integrated seal with two temperature sensor ports for the listed vehicles.

Key Features

  • OE exact fit thermostat housing design
  • Plastic construction for direct replacement service
  • Integrated seal included
  • Two temperature sensor locations
  • Outlet dimensions: 1.5 in and .74 in outside diameter; 1.23 in and .55 in inside diameter
  • Two-bolt housing configuration
  • Gates Coolant Outlet line coverage for water outlets and thermostat housing assemblies

Product Details

Gates Coolant Outlet CO34924 is engineered to match the original thermostat housing layout and performance requirements for cooling system service. This part cross-references Dorman - OE Solutions 902-782 for the same application. It is listed for Fits 1998-2001 Ford Ranger, N/A; Fits 1998-2001 Mazda B2500, N/A; and Fits 1998-2000 Ford F-100 Ranger, N/A. The Gates Coolant Outlet line is focused on replacing common aftermarket fit and material issues with a direct-fit cooling system component that supports long service life.

Common Cooling System Issues It Can Address

  • Cracked or warped thermostat housing
  • Coolant leakage at the outlet or seal surface
  • Sensor port wear or housing damage
  • Improper fit from non-OE-style replacement parts
  • Cooling system service on OE-temperature applications

Installation Notes and Tips

Verify the outlet shape, bolt-hole layout, and sensor-port configuration against the removed part before installation. Clean the mating surfaces thoroughly and inspect the cooling system for contamination or damage that could affect sealing. Confirm the application by year, make, and model: Ford Ranger, Mazda B2500, and Ford F-100 Ranger listings are specific to the fitment shown above.

Quality Assurance

Gates positions this coolant outlet program as an OE-style replacement line with full coverage across water outlets and thermostat housing assemblies. CO34924 is built to fit and perform like the original part for the listed applications.

Related reading

This part fits 11 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersFuel TypePositionNotes
2001FordRanger2.5LL4GASN/AThermostat Housing; 190 Degree; OE Temperature; Seal included; Coolant Outlet
2001MazdaB25002.5LL4GASN/AThermostat Housing; 190 Degree; OE Temperature; Seal included; Coolant Outlet
2000FordF-100 Ranger2.5LL4GASN/AThermostat Housing; 190 Degree; OE Temperature; Seal included; Coolant Outlet
2000FordRanger2.5LL4GASN/AThermostat Housing; 190 Degree; OE Temperature; Seal included; Coolant Outlet
2000MazdaB25002.5LL4GASN/AThermostat Housing; 190 Degree; OE Temperature; Seal included; Coolant Outlet
1999FordF-100 Ranger2.5LL4GASN/AThermostat Housing; 190 Degree; OE Temperature; Seal included; Coolant Outlet
1999FordRanger2.5LL4GASN/AThermostat Housing; 190 Degree; OE Temperature; Seal included; Coolant Outlet
1999MazdaB25002.5LL4GASN/AThermostat Housing; 190 Degree; OE Temperature; Seal included; Coolant Outlet
1998FordF-100 Ranger2.5LL4GASN/AThermostat Housing; 190 Degree; OE Temperature; Seal included; Coolant Outlet
1998FordRanger2.5LL4GASN/AThermostat Housing; 190 Degree; OE Temperature; Seal included; Coolant Outlet
1998MazdaB25002.5LL4GASN/AThermostat Housing; 190 Degree; OE Temperature; Seal included; Coolant Outlet
Directly replaces or cross-references 18 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dorman - OE Solutions — 902-782Focus Auto Parts — 86111Motorad — 7111KTMotorad — CH7111F87Z 8592 AF87Z 8592 ADF87Z 8592 AFF87Z 8592 ALF87Z 8592 AMRH83RH243ZZP015172ZZP015172AZZP315172ZZP315172AZZP315172BZZP315172CZZP315172D
