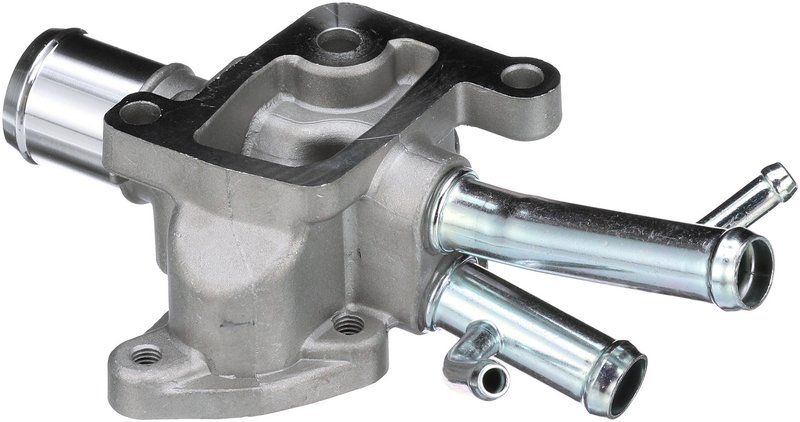

Gates CO34972 Engine Coolant Water Outlet - Lower Housing
| Brand | Gates CO34972 |
|---|---|
| Position | Lower Housing |
| 0 | |
| 1.1 | |
| 1.64 | |
| Yes | |
| Bolt Hole Quantity | 2 |
| By-Pass Holes | Yes |
| By-Pass Inside Diameter (in) | 1.1 |
| By-Pass Outside Diameter (in) | 1.64 |
| Contents | Thermostat Housing |
| Gasket Quantity | 0 |
| Material | Cast Aluminum, Steel |
| Number of Bolt Holes | 2 |
| Number of Gaskets | 0 |
| Number of Seals | 0 |
| OE Exact | No |
| Outlet Inside Diameter | .21 |
| Outlet Inside Diameter | .57 |
| Outlet Inside Diameter | 1.05 |
| Outlet Inside Diameter 1 (in) | 1.05 |
| Outlet Inside Diameter 2 (in) | .57 |
| Outlet Inside Diameter 3 (in) | .57 |
| Outlet Inside Diameter 4 (in) | .21 |
| Outlet Inside Diameter 5 (in) | .21 |
| Outlet Outside Diameter | .31 |
| Outlet Outside Diameter | .67 |
| Outlet Outside Diameter | 1.27 |
| Outlet Outside Diameter 1 (in) | 1.27 |
| Outlet Outside Diameter 2 (in) | .67 |
| Outlet Outside Diameter 3 (in) | .67 |
| Outlet Outside Diameter 4 (in) | .31 |
| Outlet Outside Diameter 5 (in) | .31 |
| Type | Thermostat Housing |
| Type | Thermostat Housing |
| Product line | Coolant Outlet |
| Fits | Hyundai · 4 vehicles |
OE-style fit. Fits and performs like the original for a straightforward replacement.
Cast aluminum and steel. Durable materials help resist common design and material issues.
Thermostat housing. A complete coolant outlet assembly for the cooling system.
Cross-references Motorad CH1025 and 2562026870 for the same application. See all 2.
Gates Coolant Outlet for Hyundai Accent
The Gates Coolant Outlet CO34972 is a thermostat housing assembly built for the cooling system on select Hyundai Accent models. It is engineered to match original fit and function while addressing common aftermarket material and design concerns with a durable cast aluminum and steel construction.
Compatible with 2006-2009 Hyundai Accent, lower housing, this coolant outlet supports proper coolant routing at the thermostat housing location. Gates CO34972 is part of the Gates Coolant Outlet line, which covers water outlets through complete thermostat housing assemblies for direct replacement needs.
Key Features
- Part number CO34972
- Thermostat housing / engine coolant water outlet design
- Cast aluminum and steel construction
- Two-bolt housing configuration
- By-pass holes included in the housing design
- Multiple outlet diameters for OE-style coolant passage routing
- Direct replacement for select Hyundai Accent lower housing applications
Detailed Description
Gates CO34972 is an engine coolant water outlet designed for the lower housing position on 2006-2009 Hyundai Accent models. The housing is built from cast aluminum and steel and follows the original-style layout needed to connect coolant passages at the thermostat housing. This part number, CO34972, is intended for buyers replacing a worn, corroded, or leaking coolant outlet on the Hyundai Accent cooling system.
The Gates Coolant Outlet product line focuses on OE-style fit and service life, with coverage that ranges from individual water outlets to complete thermostat housing assemblies. This part cross-references Hyundai OE-style part numbers 2562026870 and CH1025 for the same application.
Common Repair Reasons
- Coolant seepage or leakage at the thermostat housing
- Corrosion or pitting in the original coolant outlet
- Cracked or warped housing surfaces
- Restricted coolant flow through a damaged outlet
- Replacement after thermostat housing service on a Hyundai Accent
Installation Notes and Tips
Verify the lower housing location and compare the outlet diameters, bolt-hole layout, and bypass configuration before installation. Clean the mating surfaces thoroughly and inspect the thermostat, hoses, and sealing surfaces for wear before reassembly. Because this housing is listed with zero gaskets and zero seals, confirm the required sealing components for your specific repair before beginning work.
Quality Assurance
Gates designs this coolant outlet to address common aftermarket issues related to fit, manufacturing, and material selection while maintaining original-style performance. The CO34972 is built for long service life in the cooling system and is listed for direct fitment on 2006-2009 Hyundai Accent lower housing applications.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2009 | Hyundai | Accent | 1.6L | L4 | GAS | Lower Housing | Coolant Outlet |
| 2008 | Hyundai | Accent | 1.6L | L4 | GAS | Lower Housing | Coolant Outlet |
| 2007 | Hyundai | Accent | 1.6L | L4 | GAS | Lower Housing | Coolant Outlet |
| 2006 | Hyundai | Accent | 1.6L | L4 | GAS | Lower Housing | Coolant Outlet |
