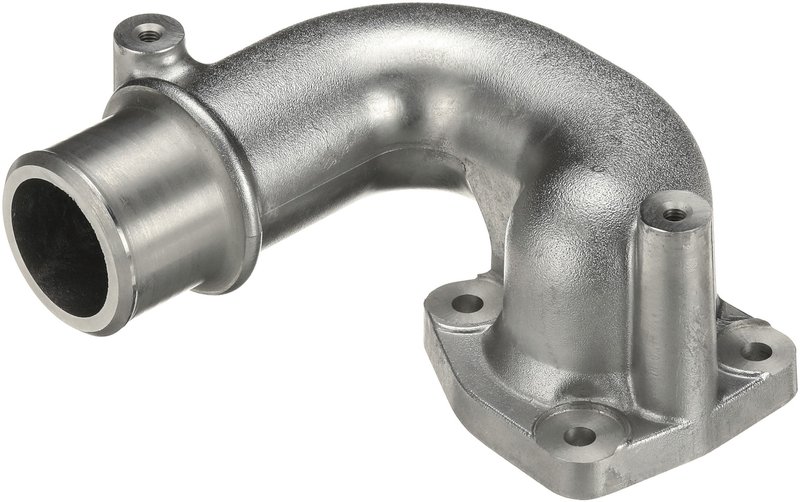

Gates CO35075 Engine Coolant Water Outlet

Gates Coolant Outlet for Ram 2500 and 3500

The Gates Coolant Outlet CO35075 is an aluminum engine coolant water outlet built for direct replacement service on select Ram heavy-duty trucks. It is engineered to match original fit and function while addressing common aftermarket material and design concerns.

Gates Coolant Outlet line coverage supports water outlets and complete thermostat housing assemblies, giving technicians a focused replacement option for cooling system repairs on Ram 2500 and Ram 3500 applications.

Key Features

• Aluminum construction for cooling system durability
• Engine coolant water outlet / coolant outlet design
• 3-bolt hole mounting pattern
• Outlet outside diameter: 1.75 in.
• Outlet inside diameter: 1.37 in.
• Direct-fit replacement for select 2013-2018 Ram 2500 and Ram 3500 models
• Gates part number CO35075

Product Details

Gates CO35075 is a coolant outlet designed for 2013-2018 Ram 2500 and 2013-2018 Ram 3500 trucks. Built from aluminum, it is intended to restore the coolant passage connection at the thermostat housing area with OE-style fit and performance. This part cross-references Focus Auto Parts 86241 for the same application.

Common Repair Uses

• Cracked or corroded coolant outlet housing
• Coolant seepage at the outlet connection
• Damaged mounting points at the 3-bolt flange
• Cooling system service on Ram 2500 and Ram 3500 trucks
• Replacement of a worn engine coolant water outlet

Installation Notes

Verify outlet diameter, bolt pattern, and housing alignment before installation. Clean the mating surfaces thoroughly and inspect the thermostat housing area, hoses, and seals for wear or contamination. Confirm fitment by vehicle year, make, and model before ordering the Gates CO35075.

Quality Assurance

Gates designs its Coolant Outlet line to address common aftermarket fit, material, and manufacturing issues while maintaining original-style performance and long service life. This makes CO35075 a practical replacement choice for Ram cooling system repair work.
