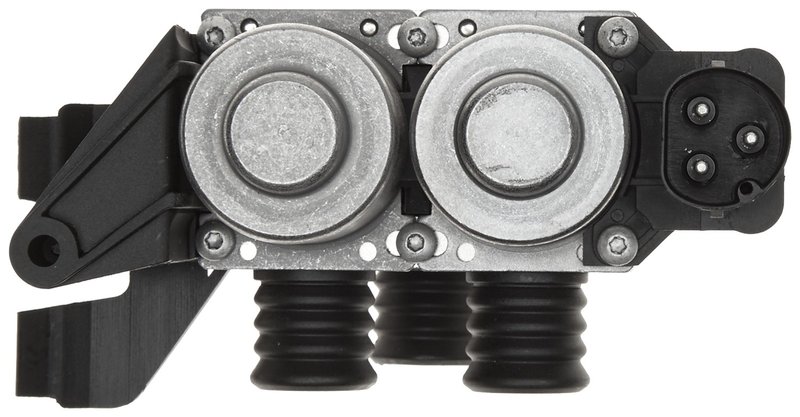

Gates EHV101 HVAC Heater Control Valve

Overview of Gates Electric Heater Control Valve EHV101

The Gates Electric Heater Control Valve EHV101 is designed to regulate coolant flow within the HVAC system, ensuring precise temperature control for BMW vehicles. This valve is engineered to meet exact OE specifications, providing reliable performance for models such as the BMW 318i, 323i, and M3.

• Compatible with BMW 318i, 318is, 318ti, 323i, 323is, 325i, 325is, 328i, 328is, and M3 models
• OE exact replacement part number EHV101
• Constructed from durable plastic and stainless steel materials
• Features one inlet and two outlets with 18 mm (.7 inch) outside diameter ports
• Equipped with a female electrical connector for secure connection

Product Line: Electric Heater Control Valve

The Gates Electric Heater Control Valve line focuses on precise coolant control within vehicle HVAC systems. This product line is designed to maintain optimal cabin temperature by regulating heater core flow electronically. The EHV101 valve integrates seamlessly with BMW HVAC systems, ensuring consistent heater performance and compatibility with factory electrical connectors.

Detailed Product Description

The Gates EHV101 Electric Heater Control Valve is a critical component in the HVAC temperature control system for select BMW models. It features a single inlet and dual outlet design, each with an 18 mm (.7 inch) outside diameter, allowing efficient coolant distribution. The valve body combines plastic and stainless steel for durability and corrosion resistance. Its female electrical connector ensures proper integration with the vehicle’s wiring harness. This valve controls the flow of coolant to the heater core, enabling precise temperature adjustments inside the cabin.

Common Applications and Issues Addressed

• Regulates heater core coolant flow for consistent cabin heating
• Resolves heater control valve failure symptoms such as lack of heat or inconsistent temperature
• Prevents coolant leaks associated with worn or damaged valves
• Restores proper HVAC system function in BMW 318i, 323i, and M3 models
• Eliminates electrical connector issues with a female terminal design

Installation Notes and Tips

When installing the Gates EHV101 valve, ensure the electrical connector is securely attached to avoid intermittent operation. Verify that the inlet and outlet ports, each measuring 18 mm (.7 inch), align correctly with the vehicle’s coolant hoses. Use caution to avoid damaging the plastic and stainless steel components during installation. It is recommended to inspect the surrounding HVAC system for any additional wear or leaks while replacing the valve.

Quality Assurance and Warranty

The Gates Electric Heater Control Valve EHV101 is manufactured to meet OE exact standards, ensuring compatibility and reliable operation in BMW vehicles. Constructed from high-quality plastic and stainless steel, this valve offers durability and resistance to corrosion. While specific warranty details are not provided, Gates products typically adhere to stringent quality control processes to maintain performance and longevity.
