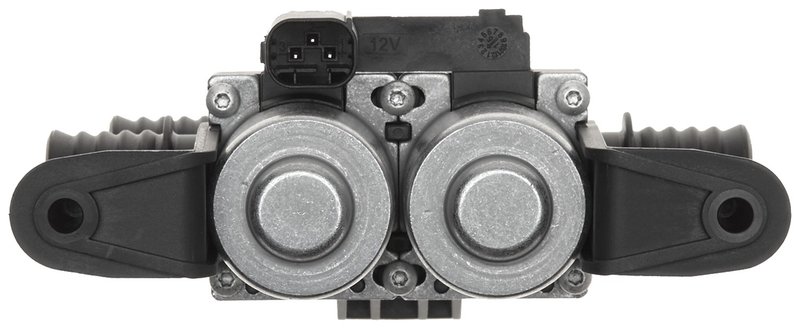

Gates EHV102 HVAC Heater Control Valve

Overview of Gates Electric Heater Control Valve EHV102

The Gates Electric Heater Control Valve EHV102 is designed to regulate coolant flow within the HVAC system of select BMW models. Engineered for precise temperature control, this valve ensures efficient heating performance in BMW X5 and X6 vehicles.

• Compatible with BMW X5 and X6 models
• OE exact fit for reliable replacement
• Constructed from durable plastic and stainless steel materials
• Single inlet and dual outlet design with 0.75 inch (19 mm) port diameters
• Female electrical connector for secure connection

Product Line: Gates Electric Heater Control Valve

The Electric Heater Control Valve line by Gates focuses on temperature control components within automotive HVAC systems. This product line offers valves that manage coolant flow to maintain cabin comfort and system efficiency. The EHV102 model is part of this line, providing an exact OE comparison rating and engineered to meet the specific requirements of BMW heating systems.

Detailed Product Description

The Gates EHV102 features a single inlet port and two outlet ports, each with an outside diameter of 0.75 inches (19 mm), facilitating precise coolant distribution. Its construction combines plastic and stainless steel to balance durability and corrosion resistance. The female terminal and electrical connector type ensure compatibility with the vehicle’s wiring harness, enabling reliable operation of the heater control valve. This part is designed to replace the original equipment valve exactly, maintaining the integrity of the HVAC system in BMW X5 and X6 models.

Common Applications and Issues Addressed

• Regulates coolant flow to the heater core for consistent cabin temperature
• Prevents heater core overheating or insufficient heating
• Resolves HVAC system temperature fluctuations in BMW X5 and X6
• Addresses electrical valve control failures due to connector issues
• Replaces worn or leaking heater control valves to restore system function

Installation Notes and Tips

When installing the Gates EHV102 heater control valve, ensure the electrical connector is securely attached to avoid intermittent operation. Verify that the inlet and outlet ports align correctly with the vehicle’s coolant lines, each measuring 0.75 inches (19 mm) in diameter. Proper sealing and hose clamp tightness are essential to prevent leaks. Refer to the BMW service manual for specific torque specifications and installation procedures.

Quality Assurance and Warranty

Gates manufactures the EHV102 heater control valve to meet OE standards, ensuring compatibility and performance. The valve’s plastic and stainless steel construction provides resistance to corrosion and wear. While specific warranty details are not provided here, Gates products typically come with manufacturer-backed quality assurance to support reliable operation in BMW X5 and X6 HVAC systems.
