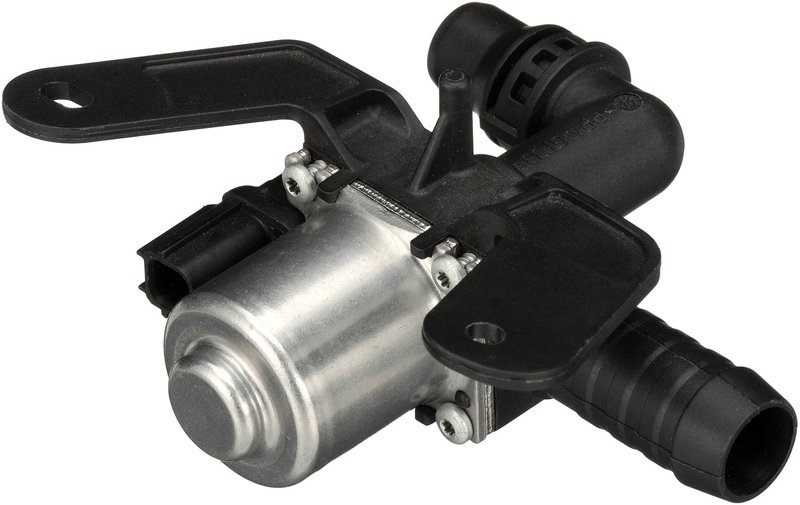

Gates EHV124 HVAC Heater Control Valve

Overview of Gates Electric Heater Control Valve EHV124

The Gates Electric Heater Control Valve EHV124 is designed to regulate coolant flow within the HVAC system of select Ford and Lincoln vehicles. Engineered for precise temperature control, this valve supports efficient heating performance in models such as the Ford Escape, Lincoln MKC, and Ford Transit Connect.

• Compatible with Ford Escape, Lincoln MKC, and Ford Transit Connect
• Part number EHV124 for accurate identification
• Constructed from durable plastic and steel materials
• Features two inlet ports with outside diameters of 16 mm (.641 in) and 20 mm (.79 in)
• Equipped with a male electrical connector and terminal for secure connections
• OE performance rating ensures reliable operation

Product Line: Electric Heater Control Valve

The Gates Electric Heater Control Valve product line focuses on electrically operated valves that manage coolant flow to the vehicle’s heater core. This line is designed to provide precise temperature regulation and improved HVAC system responsiveness. The EHV124 model integrates seamlessly with the vehicle’s electrical system, offering controlled heating functionality for compatible Ford and Lincoln models.

Detailed Product Description

The EHV124 heater control valve by Gates is engineered with two inlet ports measuring 16 mm (.641 inches) and 20 mm (.79 inches) in outside diameter, allowing it to fit specific coolant lines within the HVAC system. Its plastic and steel construction balances durability with corrosion resistance. The valve includes a male electrical connector and terminal, ensuring proper electrical interfacing for reliable operation. Rated for OE performance, this valve meets original equipment standards for fit, form, and function in Ford Escape, Lincoln MKC, and Ford Transit Connect vehicles.

Common Applications and Issues Addressed

• Regulates coolant flow to maintain consistent cabin temperature
• Prevents heater core overheating or insufficient heating
• Resolves HVAC system temperature control failures
• Eliminates coolant leaks associated with faulty heater control valves
• Supports proper operation of electric heating systems in compatible vehicles

Installation Notes and Tips

When installing the Gates EHV124 Electric Heater Control Valve, ensure the inlet ports match the vehicle’s coolant line diameters of 16 mm and 20 mm. Verify the male electrical connector aligns with the vehicle’s wiring harness for secure connection. It is recommended to inspect the surrounding HVAC components for wear or damage during replacement to maintain system integrity.

Quality Assurance and Warranty

Gates manufactures the EHV124 valve to meet OE performance standards, ensuring reliable operation and durability. This part undergoes rigorous quality control to comply with automotive specifications. Warranty details should be confirmed with the parts provider or manufacturer documentation.
