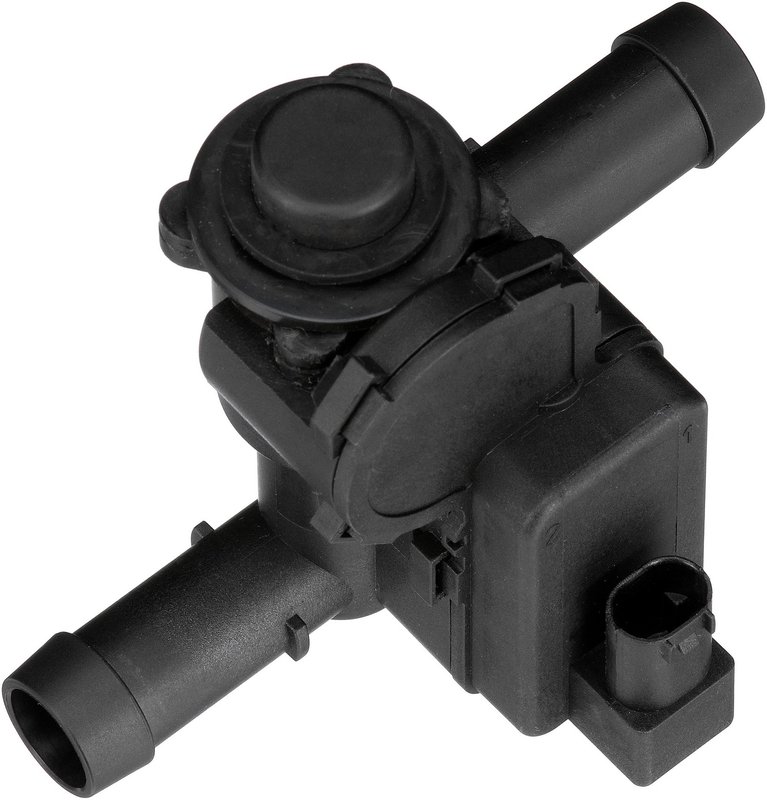

Gates EHV132 HVAC Heater Control Valve

Gates EHV132 Electric Heater Control Valve

The Gates EHV132 is an electric heater control valve built for modern thermal management systems. It regulates coolant flow through the heater core to help maintain the requested cabin temperature, and it is also used in electrified vehicle cooling circuits that manage battery temperature.

Compatible with 2011-2017 Volkswagen Touareg applications, this Gates Electric Heater Control Valve is an OE performance replacement with a plastic housing, one inlet, one outlet, and male electrical connector and terminal design.

Key Features

• Electric coolant control valve for HVAC heater circuit and thermal management systems
• OE performance replacement for direct-fit service applications
• Plastic valve body with 18 mm (0.7 in) inlet and outlet ports
• Male electrical connector type and male terminal gender
• Designed for vehicles that use electric coolant valves to manage cabin heat and system temperatures
• Fits 2011-2017 Volkswagen Touareg, N/A

Product Details

The Gates Electric Heater Control Valve, part number EHV132, is engineered for vehicles that rely on electronically controlled coolant routing. In internal combustion and electrified platforms, this type of valve helps direct coolant through the heater core for passenger-compartment temperature control, while also supporting broader thermal management strategies in systems that heat or cool battery components. This part cross-references Volkswagen (e.g., 7PP819810A) for the same application.

Use the Gates EHV132 when servicing a Volkswagen Touareg with an electric heater control valve issue and you need an OE-style replacement that matches the original port size and connector style. The part number EHV132 is also a useful reference when verifying the correct HVAC heater control valve for 2011-2017 Volkswagen Touareg models.

What It Can Help Resolve

• Inconsistent cabin heat output
• Coolant flow control problems in the heater circuit
• Faulty electric heater valve operation
• Temperature regulation issues tied to HVAC control
• Thermal management faults in vehicles using electric coolant valves

Installation Notes

Confirm port diameter, connector style, and valve orientation before installation. Match the original 18 mm inlet and outlet dimensions and verify the male electrical connection against the vehicle harness. After installation, refill and bleed the cooling system according to factory service procedures to remove trapped air and restore proper heater performance.

Quality Assurance

Gates manufactures this valve as an OE performance replacement for service use in modern HVAC and coolant control systems. The EHV132 is built to meet the fit and function expected for the listed Volkswagen Touareg applications.
