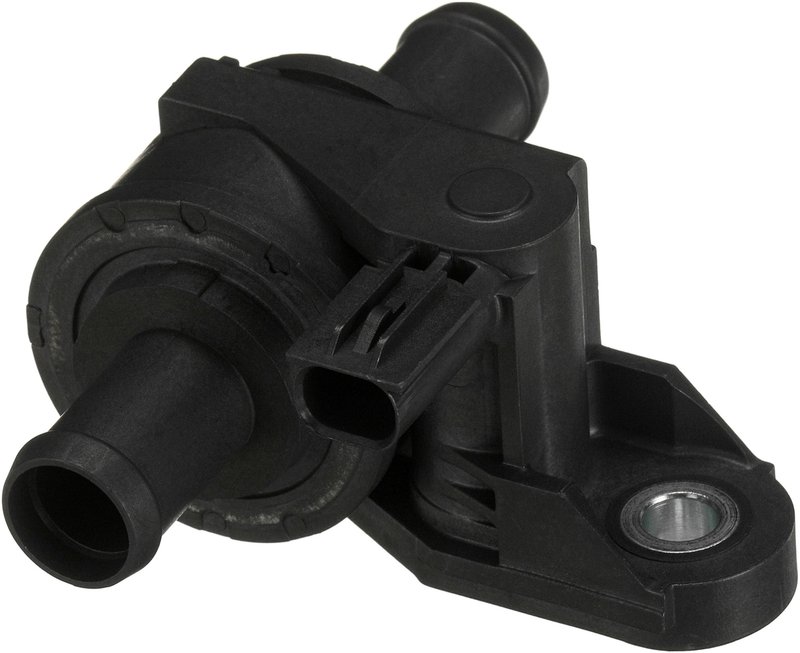

Gates EHV163 HVAC Heater Control Valve

Electric Coolant Valve for Thermal Control

The Gates Electric Coolant Valve EHV163 is an OE Exact HVAC heater control valve built for modern thermal management systems. It regulates coolant flow for passenger cabin heat and supports battery heating and cooling functions in electrified vehicles.

Compatible With Toyota Camry, Toyota Corolla, Toyota RAV4, Toyota Avalon, Lexus NX250, Lexus ES250, and Lexus UX200 applications listed below, this electric coolant valve is built with plastic and steel construction and female connector design for direct-fit service work.

Key Features

• Gates Electric Coolant Valve, part number EHV163
• OE Exact grade for factory-style fit and function
• Plastic and steel construction
• Female connector
• 17 mm inlet port outside diameter
• 17 mm outlet port outside diameter
• Single-port design
• Used in HVAC heater control and vehicle thermal management systems

Product Details

The Gates Electric Coolant Valve line addresses the growing need for precise coolant routing in both electrified and internal combustion vehicles. In many late-model systems, the valve helps direct coolant through the heater core to control cabin temperature, while in electrified platforms it also supports battery thermal management for efficiency and battery life. This EHV163 valve is an OE Exact replacement for service applications that require the same port sizing, connector style, and material profile as the original component.

This part cross-references 16670F0030 and 16671F2010 for the same application.

What It Helps Solve

• Inconsistent cabin heat output
• Coolant flow control issues in the heater circuit
• Thermal management faults in electrified vehicle systems
• Leaking or sticking electric coolant valve operation
• Fitment problems caused by incorrect port size or connector type

Installation Notes and Tips

• Verify the inlet and outlet port diameter before installation.
• Confirm the female connector style matches the vehicle harness.
• Inspect coolant hoses, clamps, and seals during replacement.
• Bleed the cooling system after service to remove trapped air.
• Use the vehicle-specific service procedure for coolant refill and valve calibration, if required.

Quality Assurance

Gates manufactures this electric coolant valve as an OE Exact replacement component for late-model thermal management systems. It is built to match the original application requirements for the listed Toyota and Lexus vehicles.

Fits 2023-2025 Lexus NX250, N/A, models made in Japan. Fits 2021-2022 Lexus ES250, N/A, models made in USA. Fits 2021-2022 Lexus UX200, N/A. Fits 2022 Toyota Camry, N/A, models made in USA. Fits 2022 Toyota Corolla, N/A. Fits 2019 Toyota Corolla, N/A. Fits 2022 Toyota RAV4, N/A, models made in USA and Canada. Fits 2020-2021 Toyota Avalon, N/A. Fits 2018-2021 Toyota Camry, N/A. Fits 2020-2021 Toyota Corolla, N/A, models made in USA. Fits 2019-2021 Toyota RAV4, N/A.
