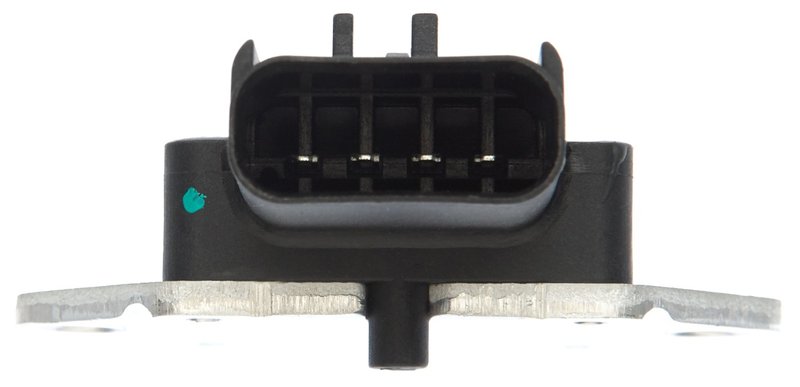

Gates FCM100 Engine Cooling Fan Module

Overview of Gates Engine Cooling Fan Module FCM100

The Gates Engine Cooling Fan Module FCM100 is designed to regulate the cooling fan operation in select Chrysler, Dodge, Jeep, and Plymouth vehicles. This module ensures optimal engine temperature control for models such as the Caravan, Grand Caravan, Grand Cherokee, Grand Voyager, Neon, Town & Country, and Voyager.

• Compact dimensions: 2.6 inches length, 1.6 inches width, 0.6 inches height
• Single female connector with 4 pins for secure electrical connection
• Durable metal and plastic housing for reliable performance
• Does not include wire harness
• Part number FCM100 for precise identification and fitment

About the Engine Cooling Fan Module Product Line

The Gates Engine Cooling Fan Module product line focuses on control modules that manage engine cooling fan speed and operation. These modules are engineered to maintain proper engine temperature by activating the cooling fan as needed. The FCM100 is part of this line, providing a reliable and compact solution compatible with various Chrysler, Dodge, Jeep, and Plymouth models.

Detailed Product Description

The Gates FCM100 Engine Cooling Fan Module measures 2.6 inches in length, 1.6 inches in width, and 0.6 inches in height, making it a compact component that fits seamlessly within the engine bay. It features a single female connector with 4 pins, ensuring a secure and stable electrical connection to the vehicle’s wiring system. The housing is constructed from a combination of metal and plastic materials, offering durability and resistance to engine heat and vibration. Note that this module does not include a wire harness, so the existing vehicle harness must be used for installation.

Common Applications and Issues Addressed

• Regulates engine cooling fan operation to prevent overheating
• Replaces faulty or malfunctioning cooling fan control modules
• Restores proper fan speed control in Chrysler Caravan and Grand Caravan models
• Ensures reliable cooling fan activation in Jeep Grand Cherokee and Grand Voyager vehicles
• Improves engine temperature management in Dodge Neon and Plymouth Town & Country

Installation Notes and Tips

• Verify compatibility with your vehicle make and model before installation
• Ensure the existing wiring harness is in good condition as the module does not include a harness
• Disconnect the battery before replacing the module to avoid electrical shorts
• Securely connect the 4-pin female connector to prevent loose connections
• Follow vehicle-specific service manual instructions for removal and installation

Quality Assurance and Warranty

The Gates Engine Cooling Fan Module FCM100 is manufactured to meet OEM specifications for fit and function. The combination of metal and plastic housing materials provides durability under typical engine conditions. While specific warranty details are not provided here, Gates products generally come with manufacturer-backed quality assurance to support reliable operation in compatible Chrysler, Dodge, Jeep, and Plymouth vehicles.
