Gates FCM104 Engine Cooling Fan Module

Engine Cooling Control for Volkswagen Applications

The Gates FCM104 engine cooling fan module regulates electric cooling fan speed to help maintain stable coolant temperature. It is a direct-fit cooling control component for select Volkswagen models, including Cabrio, Golf, Jetta, Passat, and Corrado applications.

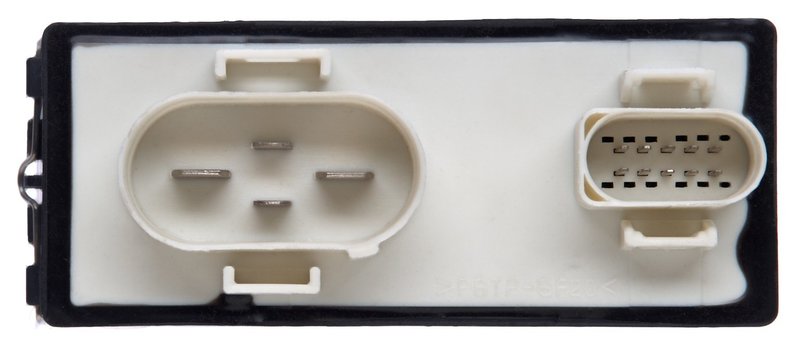

Built with a plastic housing and female connectors, this module is sized for compact underhood packaging and uses a 12-pin primary connector plus a 4-pin secondary connector. The Gates FCM104 is a practical replacement for vehicles that rely on electronic fan control to manage engine temperature and electrical load.

Key Features

• Engine cooling fan module for electronic fan speed control
• Plastic housing for underhood use
• Female connector design with 2 connectors total
• Connector pin layout: 12-pin and 4-pin
• No wire harness included
• Compact dimensions: 6 in. long, 2 in. wide, 2.6 in. high

Product Details

Gates FCM104 is part of the Engine Cooling Fan Module line, a product line focused on controlling electric radiator fan operation with the precision needed to keep coolant temperature in range. On vehicles equipped with electronically controlled fans, the module helps manage fan speed based on cooling demand rather than running the fan at a fixed output. This supports efficient operation on Volkswagen Cabrio, Golf, Jetta, Passat, and Corrado models listed below. This part cross-references Dorman OE Solutions 902-429 for the same application.

Vehicle Fitment

• Fits 1997-2002 Volkswagen Cabrio, Engine Cooling Fan Module
• Fits 1995-1998 Volkswagen Golf, Engine Cooling Fan Module
• Fits 1994-1998 Volkswagen Jetta, Engine Cooling Fan Module
• Fits 1995-1997 Volkswagen Passat, Engine Cooling Fan Module
• Fits 1994 Volkswagen Corrado, Engine Cooling Fan Module

Common Replacement Reasons

• Cooling fans running at the wrong speed
• Intermittent radiator fan operation
• Engine temperature control concerns
• Electrical fan control faults
• Failed fan module diagnosis during cooling system service

Installation Notes and Tips

Verify connector style, pin count, and mounting space before installation. This module uses female connectors and does not include a wire harness, so inspect the vehicle harness and terminals for corrosion, heat damage, or loose fitment before connecting the replacement unit. Confirm the original part number and vehicle application against the fitment list for the correct Volkswagen Cabrio, Golf, Jetta, Passat, or Corrado match.

Quality Assurance

Gates supplies this cooling fan module as an OE-style replacement component for electronic fan control applications. The design and connector layout are intended to match the listed vehicle requirements for straightforward replacement service.
