Gates FCM105 Engine Cooling Fan Module

Engine Cooling Fan Module for Volkswagen Applications

The Gates FCM105 engine cooling fan module helps regulate electric cooling fan speed to keep engine coolant within a steady temperature range. It is built for select Volkswagen Beetle, Golf, and Jetta applications with the correct connector configuration, making it a direct-fit service part for cooling system control.

Gates Engine Cooling Fan Module line focuses on precise fan control to reduce unnecessary energy loss and support fuel economy. This module is a practical replacement when the original cooling fan control unit is no longer managing fan operation correctly.

Key Features

• Gates part number FCM105
• Engine cooling fan module for electric fan control
• Female connector design with 2 connectors

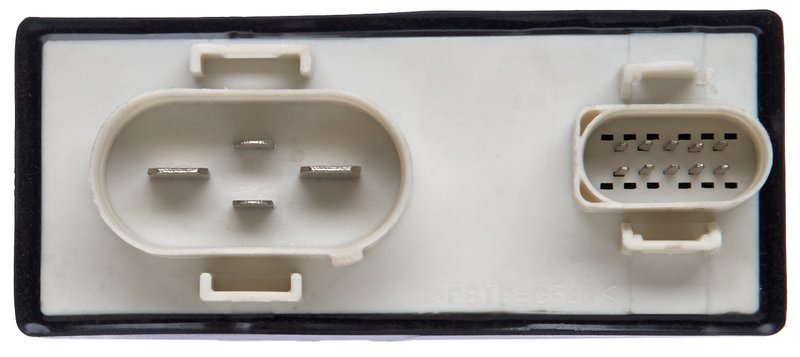

• Connector pin layout: 10-pin and 4-pin
• Plastic housing construction
• No wire harness included
• Compact size: 4.8 in. long, 2 in. wide, 2.8 in. high

Detailed Description

The Gates FCM105 is an engine cooling fan module used to manage electric cooling fan speed based on engine temperature demands. By controlling fan operation more precisely, the module helps maintain coolant temperature within the expected range while avoiding unnecessary electrical load. This makes it a relevant replacement for Volkswagen cooling system repairs where the fan module has failed or is no longer responding correctly. This part cross-references Dorman OE Solutions 902-430 for the same application.

Compatible With 1998-2001 Volkswagen Beetle, N/A; 1999-2001 Volkswagen Jetta, N/A; and 1998-1999 Volkswagen Golf, N/A. It also matches 1999 Volkswagen Golf, N/A with a 10-pin connector requirement. The Gates FCM105 is commonly searched as a Volkswagen Beetle cooling fan module, Volkswagen Jetta fan control module, and Volkswagen Golf engine cooling fan module replacement.

What It Helps Address

• Cooling fans that do not switch on at the correct temperature
• Fans running at the wrong speed or cycling inconsistently
• Engine temperature fluctuations caused by fan control failure
• Electrical load issues related to uncontrolled fan operation
• Cooling system warning symptoms tied to a failed fan module

Installation Notes and Tips

Verify connector count, pin layout, and housing dimensions before installation. This module uses female connectors and does not include a harness, so the vehicle-side connectors must match the original configuration. Confirm the application by year, make, model, and connector style before replacing the original unit.

Quality Assurance

Gates manufactures this engine cooling fan module as part of its cooling control module line for select Volkswagen applications. The FCM105 is built to support precise fan-speed control in vehicles equipped with electric cooling fans.
