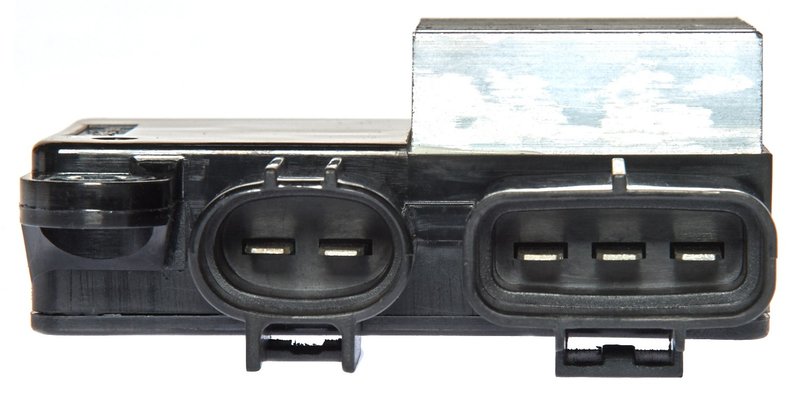

Gates FCM110 Engine Cooling Fan Module - Left or Right

Overview of Gates Engine Cooling Fan Module FCM110

The Gates Engine Cooling Fan Module FCM110 is designed to regulate engine temperature efficiently in select Mazda, Pontiac, and Toyota vehicles. This module ensures optimal cooling system performance by controlling the operation of the engine cooling fan.

• Compact dimensions: 3.2 inches length, 2.9 inches width, 1.4 inches height
• Equipped with two female connectors for secure electrical connections
• Connector 1 features 3 pins; Connector 2 features 2 pins
• Durable metal and plastic housing for reliable protection
• Wire harness not included

About the Gates Engine Cooling Fan Module Product Line

The Gates Engine Cooling Fan Module product line focuses on delivering precise control modules that integrate seamlessly with vehicle cooling systems. These modules are engineered to meet specific vehicle requirements, providing consistent fan operation to maintain engine temperature within optimal ranges. The FCM110 is part of this line, offering a balance of durability and compatibility for various Mazda, Pontiac, and Toyota models.

Detailed Product Description

The FCM110 module measures 3.2 inches in length, 2.9 inches in width, and 1.4 inches in height, making it a compact yet essential component for engine cooling systems. It features two female connectors, with one connector having three pins and the other two pins, ensuring proper electrical interfacing with the vehicle’s wiring. The housing combines metal and plastic materials to provide structural integrity and resistance to environmental factors. This module does not include a wire harness, so installation will require using the existing vehicle harness or purchasing separately if needed.

Compatible Vehicles and Common Applications

• Mazda CX-7
• Pontiac Vibe
• Toyota C-HR, Corolla, Corolla iM, Matrix

The Gates FCM110 is compatible with these specific makes and models, providing reliable engine cooling fan control tailored to their systems.

Common Issues Addressed by the FCM110 Module

• Intermittent or non-functioning engine cooling fan operation
• Overheating due to fan control failure
• Electrical connection problems causing fan malfunction
• Erratic fan speed or inconsistent cooling performance
• Replacement of faulty or damaged cooling fan control modules

Installation Notes and Tips

When installing the Gates Engine Cooling Fan Module FCM110, ensure the vehicle’s ignition is off and the battery is disconnected to prevent electrical shorts. Verify connector pin counts and types match the vehicle’s wiring harness before installation. Since the wire harness is not included, inspect the existing harness for damage and replace if necessary. Secure the module firmly in place to avoid vibration-related issues.

Quality Assurance and Warranty

Gates Engine Cooling Fan Modules are manufactured to meet industry standards for durability and performance. The FCM110 undergoes rigorous testing to ensure reliable operation under typical driving conditions. Please refer to Gates’ official warranty policy for specific coverage details related to this part number.
