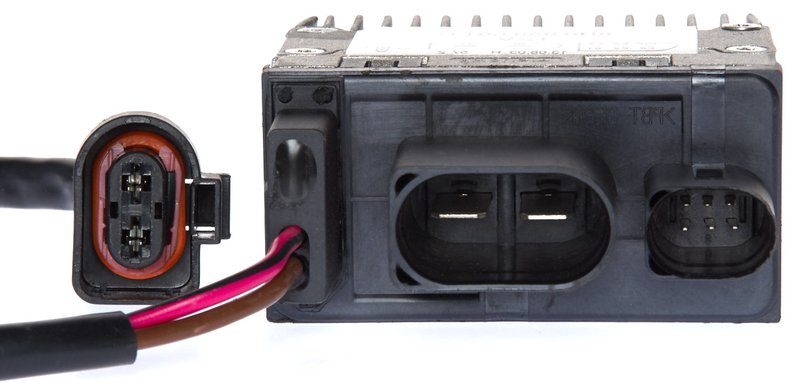

Gates FCM114 Engine Cooling Fan Module

Gates FCM114 Engine Cooling Fan Module

The Gates FCM114 engine cooling fan module helps regulate electric cooling fan speed to keep engine coolant within a stable temperature range. It is a direct-fit control module for select Audi and Volkswagen applications, including Audi A4, A4 Quattro, A6, A6 Quattro, S4, and Volkswagen Passat models.

Key Features

• Engine cooling fan module for electric fan control
• Precisely manages fan speed to reduce unnecessary energy loss
• Supports stable coolant temperature control
• Metal/plastic housing for underhood use
• Female connectors with 2 connector locations
• Includes wire harness
• Compact size: 4.2 in. length, 3.5 in. width, 1.8 in. height

Product Details

Gates FCM114 is part of the Engine Cooling Fan Module line, built for vehicles that rely on electronic fan control rather than a simple on/off relay setup. By modulating fan speed based on cooling demand, the module helps the cooling system maintain consistent operating temperature while avoiding excess electrical load. This Gates FCM114 module cross-references Dorman OE Solutions 902-434 and Four Seasons 20285 for the same application.

Vehicle Fitment

• Fits 1998-2005 Volkswagen Passat, N/A
• Fits 2000-2002 Audi S4, N/A
• Fits 1998-2001 Audi A4, N/A
• Fits 1998-2001 Audi A4 Quattro, N/A
• Fits 1998-2001 Audi A6, N/A
• Fits 1998-2001 Audi A6 Quattro, N/A

Common Issues This Part May Address

• Cooling fans that run at the wrong speed
• Engine temperature that fluctuates during driving or idling
• Fan operation problems caused by a failed control module
• Reduced cooling performance in electric fan-equipped vehicles
• Electrical control faults in the fan circuit

Installation Notes and Tips

Verify connector style, pin count, and housing dimensions before installation. This module uses 2 female connectors, with 6 pins at connector 1 and 2 pins at connector 2, and includes a harness. Confirm the vehicle’s cooling system configuration and compare the original module to the Gates FCM114 before replacement.

Quality Assurance

Gates manufactures cooling system components for service replacement applications, and this module is built to match the electrical control requirements of the listed Audi and Volkswagen vehicles. Use the confirmed fitment data and connector specifications to ensure proper application selection.
