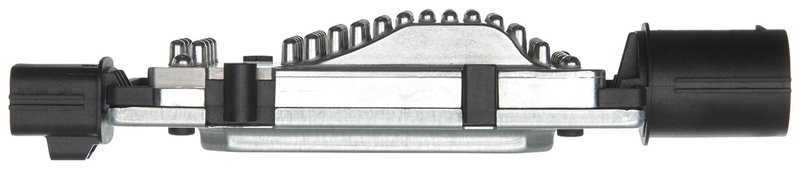

Gates FCM125 Engine Cooling Fan Module

Overview of Gates Engine Cooling Fan Module FCM125

The Gates Engine Cooling Fan Module FCM125 is designed to regulate engine temperature efficiently in select Ford vehicles. This module is engineered to meet the specific cooling needs of Ford Escape, Focus, and Transit Connect models, ensuring reliable performance and proper engine operation.

• Dimensions: 7.562 inches length, 3.09 inches width, 1.41 inches height
• Connector Quantity: 2 female connectors
• Connector Pins: One connector with 4 pins, another with 2 pins
• Housing Material: Durable metal and plastic composite
• Wire Harness: Not included

About the Engine Cooling Fan Module Product Line

The Gates Engine Cooling Fan Module product line focuses on delivering precise control modules that manage engine cooling fan operation. These modules are designed to integrate seamlessly with vehicle electrical systems, providing accurate fan speed regulation to maintain optimal engine temperature. The FCM125 is part of this line, offering compatibility and reliable function for specific Ford models.

Detailed Product Description

The Gates FCM125 Engine Cooling Fan Module features a compact design with a length of 7.562 inches, width of 3.09 inches, and height of 1.41 inches, making it suitable for installation in tight engine compartments. It includes two female connectors—one with 4 pins and the other with 2 pins—ensuring proper electrical connections for fan control. The housing combines metal and plastic materials to provide durability and resistance to engine bay conditions. Note that this module does not include a wire harness, so existing harnesses must be used during installation.

Common Applications and Issues Addressed

• Regulates engine cooling fan speed to prevent overheating
• Replaces faulty or malfunctioning fan control modules
• Resolves intermittent fan operation or failure to engage
• Helps maintain consistent engine temperature in Ford Escape, Focus, and Transit Connect
• Supports proper HVAC system performance by controlling fan operation

Installation Notes and Tips

• Ensure compatibility with Ford Escape, Focus, and Transit Connect models before installation
• Disconnect the battery prior to module replacement to avoid electrical shorts
• Verify connector pin counts and types match vehicle wiring harness
• Use appropriate tools to avoid damage to connectors and housing
• Test fan operation after installation to confirm proper module function

Quality Assurance and Warranty

The Gates Engine Cooling Fan Module FCM125 is manufactured to meet OEM specifications for fit and function. The combination of metal and plastic housing materials provides durability under typical engine bay conditions. While specific warranty details are not provided here, Gates products generally come with a limited warranty covering defects in materials and workmanship. Consult product documentation or supplier for exact warranty terms.
