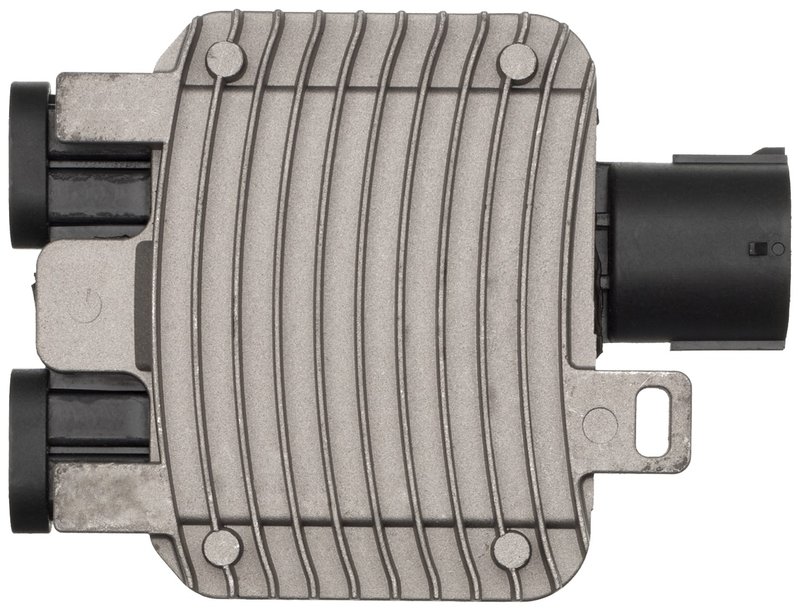

Gates FCM126 Engine Cooling Fan Module

Overview of Gates Engine Cooling Fan Module FCM126

The Gates Engine Cooling Fan Module FCM126 is designed specifically for Land Rover LR2 models, providing reliable engine cooling system control. This 12-volt module features a compact design with metal and plastic housing, ensuring durability and efficient performance in demanding automotive environments.

• Voltage: 12V for standard automotive electrical systems
• Dimensions: 5.3 inches length, 3.95 inches width, 1.4 inches height
• Connector Quantity: 3 female connectors with 3, 2, and 2 pins respectively
• Amperage Rating: 17 amps for consistent electrical load handling
• Housing Material: Combination of metal and plastic for strength and heat resistance
• Wire Harness: Not included

About the Gates Engine Cooling Fan Module Product Line

The Gates Engine Cooling Fan Module product line focuses on delivering precise control modules that regulate engine cooling fans to maintain optimal engine temperature. This line integrates robust materials and electrical specifications tailored to specific vehicle applications, such as the Land Rover LR2, ensuring compatibility and reliable operation under various driving conditions.

Detailed Product Description

The FCM126 module from Gates is engineered to manage the engine cooling fan operation in Land Rover LR2 vehicles. Its 12-volt electrical system compatibility and 17-amp amperage rating allow it to handle the electrical demands of the cooling fan effectively. The module’s three female connectors, with varying pin counts, facilitate secure and accurate electrical connections. The metal and plastic housing provides a balance of durability and heat dissipation, essential for maintaining performance in the engine bay environment. With compact dimensions, this module fits precisely within the designated mounting area, ensuring seamless integration with the vehicle’s cooling system.

Common Applications and Issues Addressed

• Regulates engine cooling fan speed to prevent overheating
• Replaces faulty or damaged cooling fan control modules in Land Rover LR2
• Resolves intermittent fan operation or failure to engage
• Improves engine temperature management for consistent performance
• Addresses electrical connection issues related to worn connectors

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical shorts
• Verify connector pin alignment and secure fit to avoid loose connections
• Check existing wiring harness condition; replacement harness not included
• Follow vehicle-specific service manual instructions for module removal and installation
• Test fan operation after installation to confirm proper module function

Quality Assurance and Warranty

Gates Engine Cooling Fan Module FCM126 is manufactured to meet OEM specifications for fit and function on Land Rover LR2 models. The module undergoes rigorous quality control to ensure electrical and mechanical reliability. While specific warranty details are not provided here, Gates typically offers coverage against manufacturing defects; consult product documentation or supplier for exact warranty terms.
