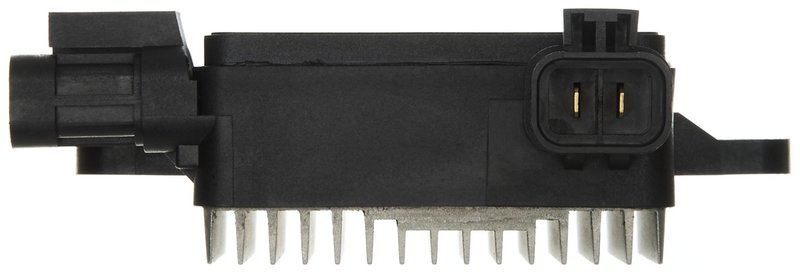

Gates FCM133 Engine Cooling Fan Module

Reliable Engine Cooling Fan Module for Hyundai and Kia Vehicles

The Gates Engine Cooling Fan Module FCM133 is designed to maintain optimal engine temperature for Hyundai Entourage and Kia Sedona models. This 12-volt module ensures efficient cooling system operation, helping prevent overheating and engine damage.

• Voltage: 12V for standard automotive electrical systems
• Compact dimensions: 5.75" length, 5.4" width, 1.875" height
• Durable aluminum and plastic housing for heat resistance and longevity
• Four male connectors with varied pin counts (3, 2, 2, and 1 pins) for secure electrical connections
• Amperage rating of 35 amps to handle cooling fan power demands
• Wire harness not included, allowing compatibility with existing vehicle wiring

About the Gates Engine Cooling Fan Module Product Line

The Gates Engine Cooling Fan Module line focuses on delivering reliable control modules that regulate cooling fan operation in various vehicles. The FCM133 is engineered to meet the specific electrical and mechanical requirements of Hyundai Entourage and Kia Sedona models, ensuring proper fan speed control and engine temperature management.

Detailed Product Description

The FCM133 module operates at 12 volts and supports a maximum amperage of 35 amps, suitable for controlling the engine cooling fan's electrical load. Its compact size (5.75" x 5.4" x 1.875") allows for easy integration into the engine bay without interfering with other components. The housing combines aluminum and plastic materials to provide durability and heat resistance, essential for the high-temperature environment near the engine. Featuring four male connectors with different pin configurations (3, 2, 2, and 1 pins), this module ensures proper electrical interfacing with the vehicle's wiring harness. Note that the wire harness is not included, so installation requires using the existing vehicle connectors.

Common Issues Addressed by the FCM133 Module

• Engine overheating due to cooling fan failure
• Intermittent or non-functioning cooling fan operation
• Electrical faults causing fan speed irregularities
• Faulty fan control module triggering warning lights
• Reduced engine performance from inadequate cooling

Installation Notes and Tips

• Ensure vehicle compatibility: Hyundai Entourage and Kia Sedona models
• Disconnect the battery before installation to prevent electrical shorts
• Verify connector pin alignment and secure connections to avoid loose contacts
• Use existing wire harness; no additional harness included with this module
• Test fan operation after installation to confirm proper function

Quality Assurance and Warranty

Gates Engine Cooling Fan Modules are manufactured to meet OEM specifications for fit and function. The FCM133 undergoes rigorous quality control to ensure reliable performance under normal operating conditions. Please refer to the product packaging or manufacturer documentation for specific warranty details.
